Amperes VP7810 Instruction Manual

Precision Design, Absolute Confidence
Introduction
VP7810 is normally used in hotel room, which is used to override the speaker audio inside
bathroom / foyer (BGM ted from TV or other audio player), to central paging audio.
It operates only doing emergency cases, which the central PA is required to send audio to the
speaker with 8 Ohm impedance. ie. VP7810's function in to match the impedance of the said
speaker.
Features:
Suitable for 4 wire system : 2 x audio, 2 x 24V DC overriding
Built in overriding relay for emergency bypass with LED indicator
Also available with 70 x 120 mm front panel
Technical Specification:
Power rating
Overriding voltage
Patch connection
Cablings
Size (front panel)
70 x 120 mm face plate available upon request
Weight (excl. enclosure)
Back enclosure ( optional items )
Concealed (W x H x D)
Surface (W x H x D)
Amperes Electronics reserves the rights to change the above specifications without prior notice. All rights reserved.
Application Schematic:
Line audio from TV
From central PA system
VP7810 application schematic
VP7810
10W 8 Ohm
24V DC
Hardwired
4 wire system
86 x 86 x 40 mm
215 gms
77 x 77 x 60 mm
85 x 85 x 60 mm
8 OHM OUT
VC7805 / 7810
MINI AMP
SPEAKER VOLUME
2 3
1
OFF
OVERRIDE
100V output
24V DC Override
VP7810

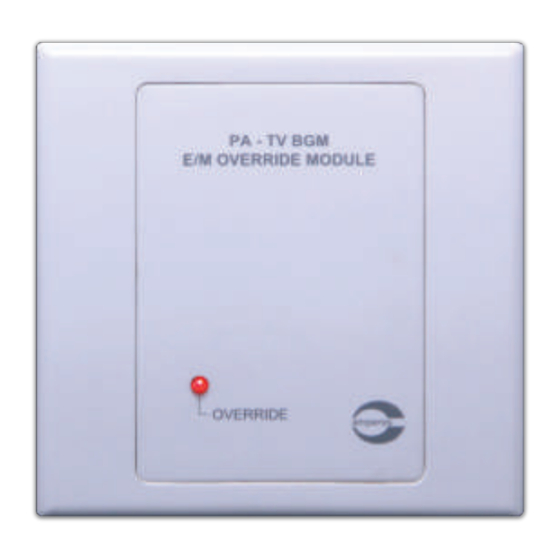

PA - TV BGM
EM OVERRIDE MODULE
4
5
OVERRIDE
Instruction Manual
VP7810
8 Ohm Speaker Patch
4 / 8 OHM
SPEAKER
