Amperes MM8804 Instruction Manual

MM 8804
MATRIX MIXER DSP CONTROLLER
Thank you for choosing another quality product from Amperes Electronics
Product in Summary
MM8804 is a matrix mixer / controller built to provide flexibility of audio mixing and routing to different zones with total 4 outputs. Each output comes with its own
audio controls ie. DSP. Delay feature is included to provide audio balancing for uneven ceiling height or different position of speaker along horizontal installation.
It has 8 line inputs with one priority control which will bypass all other incoming audio for essential message. As such, EP1200 emergency control panel or Voice
Alarm Player ( MR1301 MKII ) can be integrated into the system.
Controls of the device can be done at the unit itself, or through Internet browser for a more thorough access and settings. Dedicated remote control panel, RP1106
can be used alongside the device to control certain parameters of the outputs. This is a convenient and less hassle than accessing the device full control panel,
especially for layman.
Remote Control Panel ( RP1106 ) comes with different level of access, so as to protect the integrity of the setting. Refer to the manual of RP1106 for more informa-
tion. Android Apps will be available in near future.
Among applications are :
- Residential
- Place of worships eg, Mosques, Churches with segmented area of audiences
- Banquet halls with partitions
MM8804 is a device, making delicate audio distribution within the premise simpler.
Scan to view catalogue and latest updates
Ver 1 / 1124
INSTRUCTION MANUAL

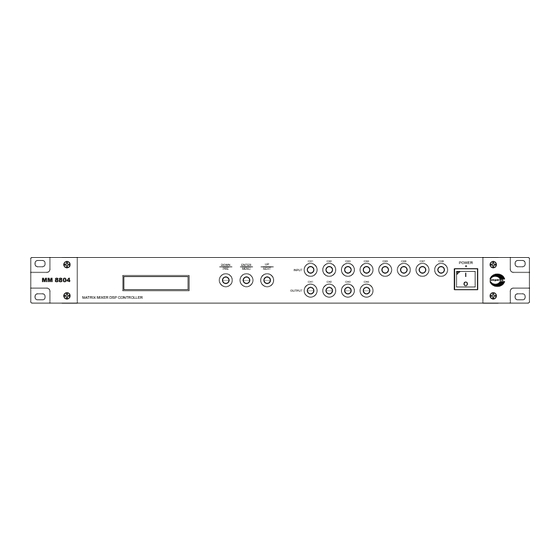

CH1
DOWN ENTER UP
PRE MENU NEXT
INPUT
CH1
OUTPUT
8 In / 4 Out DSP Matrix Controller
CH2 CH3 CH4 CH5 CH6 CH7
CH2 CH3 CH4
In our support towards environment, we
shall no longer print manuals to be
accompanied with each product. Please
view through browser and print them
only when necessary.
MM8804
CH8
POWER
I
amperes
O
Go Green
