EVS 8820
VOICE ALARM SYSTEM
Product in Summary
EVS8820 is an extension amplifier for EVM8810. Combining both the controller and extension unit provides larger setup of 16 zones and
above with amplifier capacity of exceeding 2000W 100V line.
It consists of 8 zone speaker line outputs and can conveniently connect to EVM8810 via simple connecting RJ45 cable. EVS8820 is also an
1000W 100V power pack with built in Auto Fault Sensing circuit ( AFS ).
In essense, Amperes EVM8820 + EVS8810 represent more than just an Integrated Voice Alarm Controller system; it symbolizes an innovative
transformation of conventional PA setup to a more compact and versatile system, both for Paging, BGM and EVAC broadcast.
Ver 1 / Updated May 24
INSTRUCTION MANUAL

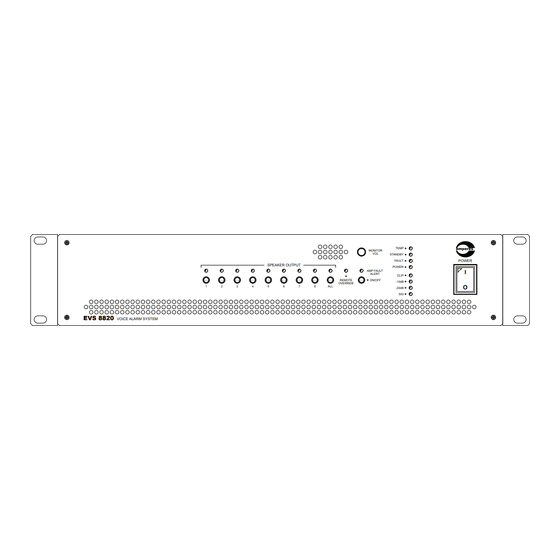

SPEAKER OUTPUT
1
2
3
4
5
6
7
Voice Alarm Controller Extension
TEMP
MONITOR
VOL
STANDBY
FAULT
POWER
AMP FAULT
ALERT
CLIP
REMOTE
ON/OFF
-10dB
OVERRIDE
8
ALL
-20dB
SIG
EVS8820
amperes
POWER
I
O
Go Green
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Amperes EVS8820
Summary of Contents for Amperes EVS8820
- Page 1 2000W 100V line. It consists of 8 zone speaker line outputs and can conveniently connect to EVM8810 via simple connecting RJ45 cable. EVS8820 is also an 1000W 100V power pack with built in Auto Fault Sensing circuit ( AFS ).
-
Page 2: Parts Identification
Upon failure of amplifier output, the Fault LED and buzzer will be ON. The switch is used to silence the buzzer, but the LED will remain lit until the fault is removed. A short circuit occurred at amplifier terminal which is caused by speaker line shorted, will also cause this LED and buzzer to turn ON. EVS8820 | 1000W 100V VOICE ALARM CONTROLLER EXTENSION PAGE 2... - Page 3 B zones can be linked to Group A or can be powered by external amplifier. (When the internal power amplifier is insufficient to power all the zones). 20. AMP OUT - GROUP B LINK When to use Group B zones from the internal amplifier, link both the terminals. PAGE 3 EVS8820 | 1000W 100V VOICE ALARM CONTROLLER EXTENSION...
- Page 4 Standby amplifier model is subjected to the power capacity required. The above diagram illustrates typical configurations using EVM8810 serving Zone 1 to Zone 8 and links to EVS8820 serving Zone 9 to 24. All Amperes PD series of paging microphones can be used in the setup.
-
Page 5: Connecting The Unit
Connecting the Unit CASCADING EVS8820 If more zones are required in a setup, the system can be expanded with VOICE ALARM additional slave unit EVS8820 of up to 2 units, forming a 24 zone AC220-240V 50/60Hz CONTROLLER amperes Model : EVM8810 system. - Page 6 50/60Hz FUSE: 6A DC INPUT 21V-30V MAX 50A SPEAKER OUTPUT BALANCED AUDIO 100V EARTH 1.00V / 15K GAIN 150Hz INPUT BUF.LINK -3dB STBY FAULT RS 485 Standby amplifier, eg QD2100 EVS8820 | 1000W 100V VOICE ALARM CONTROLLER EXTENSION PAGE 6...
-
Page 7: Technical Specifications
482x 88 x 420 with mounting bracket Net weight ( kg ) 9.3 kg Note: The above specifications are correct at time of printing, but subject to changes without prior notice due to product improvements. EVS8820 | 1000W 100V VOICE ALARM CONTROLLER EXTENSION PAGE 7... -
Page 8: Warranty Conditions
Disclaimer Information contained in this manual is subjected to change without prior notice and does not represent a commitment on the part of the vendor. Amperes Electronics Sdn Bhd shall not be liable for any loss or damages whatsoever arising from the use of information or any error contained in this manual.
