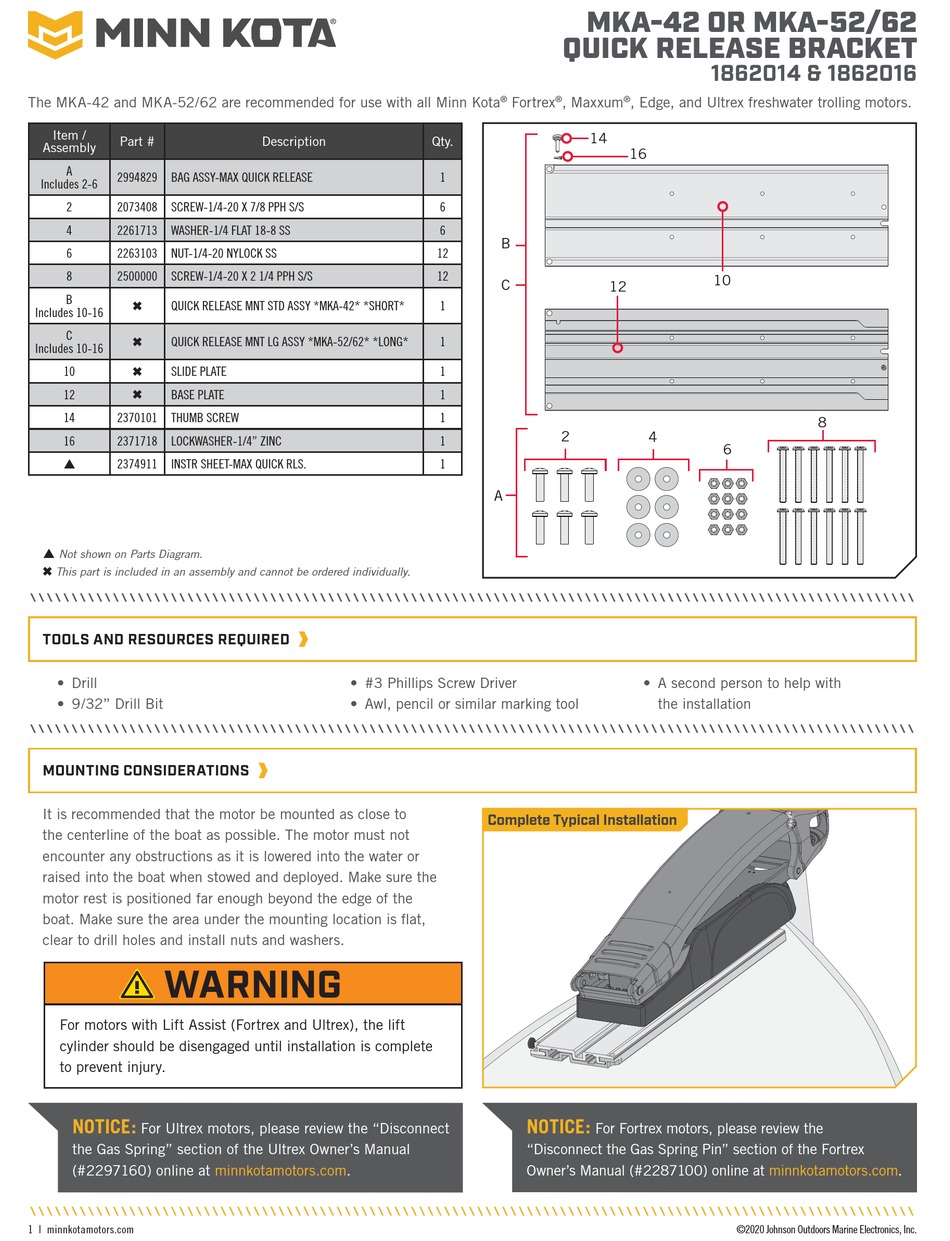

The MKA-42 and MKA-52/62 are recommended for use with all Minn Kota
Item /
Part #
Assembly
A
2994829
BAG ASSY-MAX QUICK RELEASE
Includes 2-6
2
2073408
SCREW-1/4-20 X 7/8 PPH S/S
4
2261713
WASHER-1/4 FLAT 18-8 SS
6
2263103
NUT-1/4-20 NYLOCK SS
8
2500000
SCREW-1/4-20 X 2 1/4 PPH S/S
B
✖
QUICK RELEASE MNT STD ASSY *MKA-42* *SHORT*
Includes 10-16
C
✖
QUICK RELEASE MNT LG ASSY *MKA-52/62* *LONG*
Includes 10-16
✖
10
SLIDE PLATE
✖
12
BASE PLATE
14
2370101
THUMB SCREW
16
2371718
LOCKWASHER-1/4" ZINC
p
2374911
INSTR SHEET-MAX QUICK RLS.
p
Not shown on Parts Diagram.
✖
This part is included in an assembly and cannot be ordered individually.
TOOLS AND RESOURCES REQUIRED
• Drill
• 9/32" Drill Bit
MOUNTING CONSIDERATIONS
It is recommended that the motor be mounted as close to
the centerline of the boat as possible. The motor must not
encounter any obstructions as it is lowered into the water or
raised into the boat when stowed and deployed. Make sure the
motor rest is positioned far enough beyond the edge of the
boat. Make sure the area under the mounting location is flat,
clear to drill holes and install nuts and washers.
WARNING
For motors with Lift Assist (Fortrex and Ultrex), the lift
cylinder should be disengaged until installation is complete
to prevent injury.
NOTICE:
For Ultrex motors, please review the "Disconnect
the Gas Spring" section of the Ultrex Owner's Manual
(#2297160) online at minnkotamotors.com.
1 | minnkotamotors.com
Description
Qty.
1
6
6
12
12
1
1
1
1
1
1
1
• #3 Phillips Screw Driver
• Awl, pencil or similar marking tool

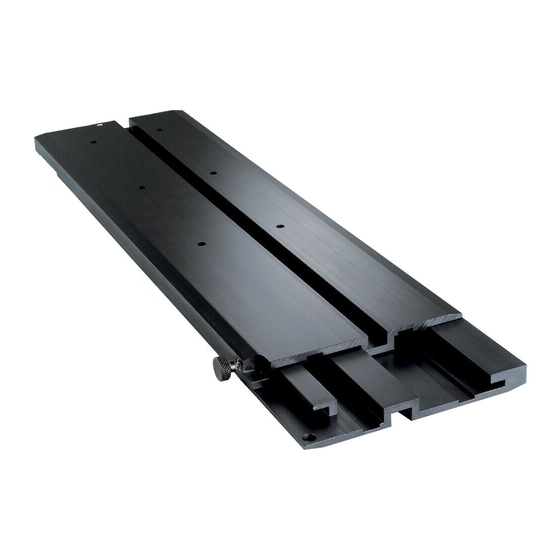

MKA-42 OR MKA-52/62
QUICK RELEASE BRACKET
®
Fortrex
®
, Maxxum
®
, Edge, and Ultrex freshwater trolling motors.
14
14
16
16
B B
C C
12
12
2 2
4 4
A A
• A second person to help with
the installation
Complete Typical Installation
NOTICE:
For Fortrex motors, please review the
"Disconnect the Gas Spring Pin" section of the Fortrex
Owner's Manual (#2287100) online at minnkotamotors.com.
1862014 & 1862016
10
10
8 8
6 6
©2020 Johnson Outdoors Marine Electronics, Inc.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for MINN KOTA 1862014
Summary of Contents for MINN KOTA 1862014
- Page 1 MKA-42 OR MKA-52/62 QUICK RELEASE BRACKET 1862014 & 1862016 The MKA-42 and MKA-52/62 are recommended for use with all Minn Kota ® Fortrex ® , Maxxum ® , Edge, and Ultrex freshwater trolling motors. Item / Part # Description Qty.
-
Page 2: Installation
The MKA-42 and MKA-52/62 are designed to be compatible with NOTICE: Images are a graphical representation and may the Ultrex, Fortrex, Maxxum and Edge Minn Kota ® motors. The vary from your motor. base extrusion or mounting bracket of the trolling motors may vary. - Page 3 ITEM(S) NEEDED #12 x 1 #14 x 1 #16 x 1 Slide the Base Plate (Item #12) into the Slide Plate. Slide Slide Plate Plate Place the Lockwasher (Item #16) onto the Thumb Screw (Item #14). Secure the plates with the Lockwasher Lockwasher Lockwasher and Thumb Screw.
- Page 4 Installing the Base Plate to the Bow (for all trolling motors) Place the Quick Release Bracket with the motor attached as close to the center line or keel of the boat as possible. Make sure to check the clearance of the motor, bracket and handle assembly for any possible obstructions on the bow of the boat.
-
Page 5: Completing The Installation
Ultrex Owner’s Manual (#2297160) online at of the Fortrex Owner’s Manual (#2287100) online at minnkotamotors.com. minnkotamotors.com. For warranty information, please visit minnkotamotors.com. Minn Kota Consumer & Technical Service 121 Power Drive Johnson Outdoors Marine Electronics, Inc. Mankato, MN 56001 PO Box 8129 Phone (800) 227-6433 ©2020 Johnson Outdoors Marine Electronics, Inc. - Page 6 SUPPORT À DÉGAGEMENT RAPIDE MKA-42 OU MKA-52/62 1862014 ET 1862016 On recommande l’utilisation du MKA-42 et du MKA-52/62 avec tous les moteurs de pêche à la traîne pour eau douce Minn Kota Fortrex , Maxxum , Edge, et Ultrex. Article/ Nº...
- Page 7 Le MKA-42 et le MKA-52/62 sont conçus pour être compatibles AVIS : Les images sont une représentation graphique et avec les moteurs Ultrex, Fortrex, Maxxum et Edge Minn Kota peuvent être différentes de votre moteur. L’extrusion de la base ou le support de montage des moteurs de pêche à...
- Page 8 ARTICLE(S) REQUIS #12 x 1 #14 x 1 #16 x 1 Glissez la plaque de base (article nº 12) dans la plaque coulissante. Plaque Plaque coulissante coulissante Placez la rondelle de blocage (article nº 16) sur la Rondelle de blocage Rondelle de blocage vis de serrage (article nº...
- Page 9 Installation de la plaque de base sur la proue (pour tous les moteurs de pêche à la traîne) Placez le support à dégagement rapide avec le moteur le plus près possible de l’axe ou la quille. Veillez à vérifier que le dégagement de l’ensemble du moteur, du support et l’assemblage de la poignée n’est gêné...
-
Page 10: Terminer L'installation
à gaz » du manuel du propriétaire Ultrex (nº 2297160) en ligne sur minnkotamotors.com. Pour obtenir des renseignements sur la garantie, visiter minnkotamotors.com. Minn Kota Consumer & Technical Service 121 Power Drive Johnson Outdoors Marine Electronics, Inc. Mankato, MN 56001...
