- Page 1 TERROVA 101 for use with "N" serial numbers 101 LBS THRUST 2-year warranty 36 VOLT 46 AMPS 54” OR 60” SHAFT...

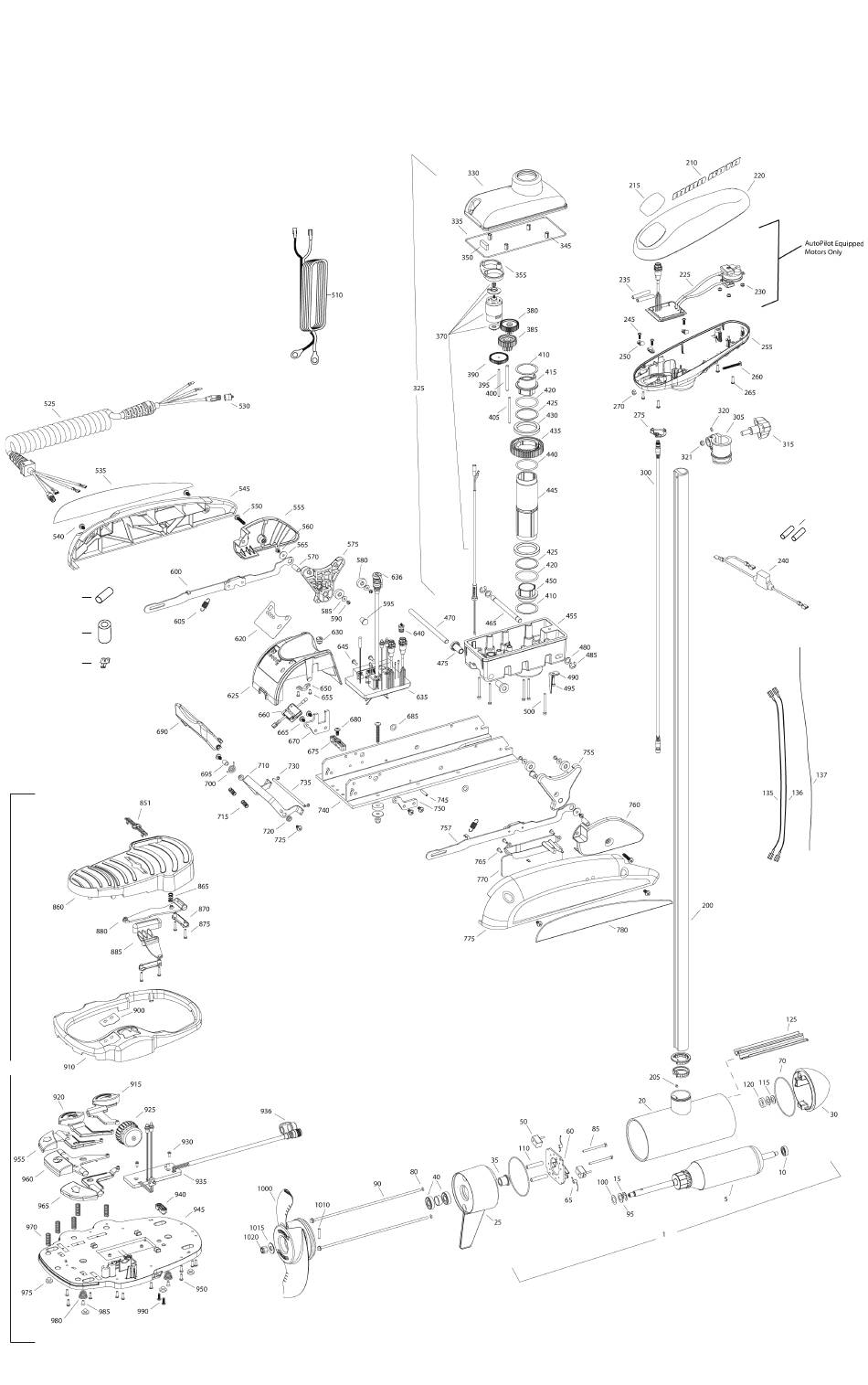

- Page 2 Item Description Item Description Item Description Item Description 2777052 36V Motor 60” FW 2260906 Knob (included in #305) 2994202 Arm, release, left 2322900 Strain relief, foot pedal 2777051 36V Motor 54” FW 2321706 Washer (included in #305) 2322710 Spring, extension 2324500 Base plate, foot pedal 2777054...
- Page 3 Wiring diagram for board p/n 2324017 (see next page for 2324019) THIS IS A UNIVERSAL MULTI-VOLTAGE DIAGRAM. DOUBLE CHECK YOUR MOTORS VOLTAGE FOR PROPER CONNECTIONS. Terrova 101 is 36-volt only! ACCESSORY PLUG STEERING MOTOR/ PRISE D’ACCESSOIRE BATTERY GAUGE/ RED/ROUGE MOTEUR DE DIRECTION VOLTMéTRE...
- Page 4 Wiring diagram for board p/n 2324019 (see prior page for 2324017) THIS IS A UNIVERSAL MULTI-VOLTAGE DIAGRAM. DOUBLE CHECK YOUR MOTORS VOLTAGE FOR PROPER CONNECTIONS Terrova 101 is 36-volt only! CONTROL BOARD/ CARTE DE COMMANDE ACCESSORY PLUG STEERING MOTOR BATTERY GAUGE...
