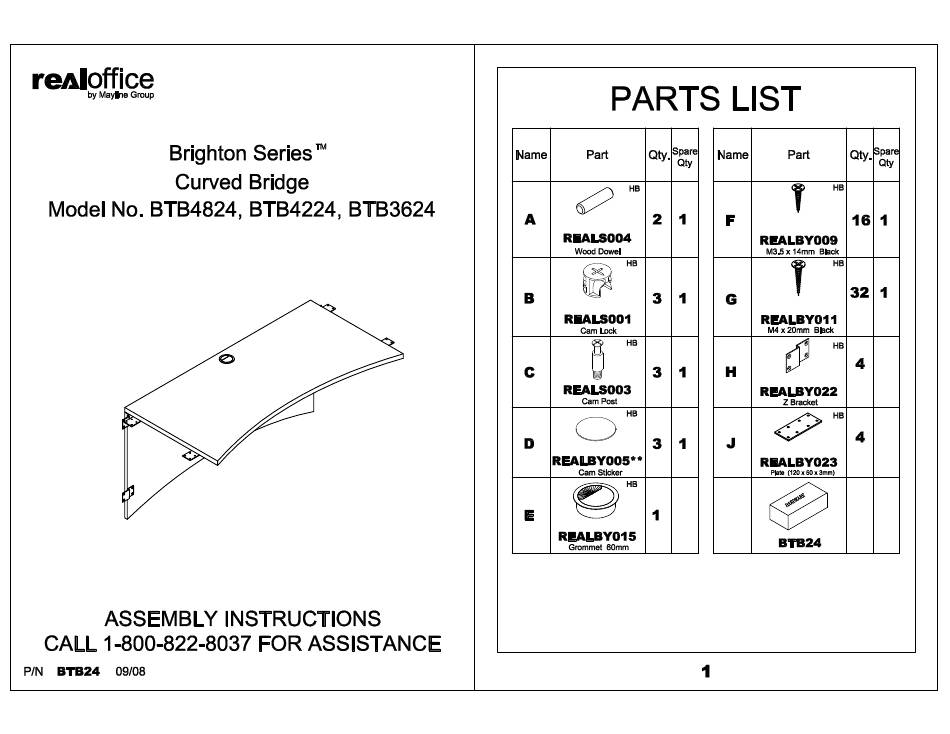

- Page 1 Items with HB are in hardware box. **Denotes Color Code...
- Page 2 Attach the Modesty Panel (L) to the adjacent Desks or Credenzas using Z Bracket (H) and Screws (F). Adjacent Desk or Credenza Adjacent Desk or Credenza **Denotes Color Code ~~Denotes Size (48", 42", or 36")
- Page 3 Install Cam Posts (C) into underside of Top (K). Attach Plates (J) to the underside of adjacent Tops using Screws (G). Adjacent Desk or Credenza Adjacent Desk or Credenza...
- Page 4 Insert Grommet (E) into Top (K). Insert Cams (B) and Dowels (A) into holes in Modesty Panel (L). Secure the Modesty Panel (L) to the Top (K) by turning the Cams (B). Fasten Top (K) to adjacent tops using Plates (J) and Screws (G).
