3.2.1.3 Short-cycle Protection

The VLT® Compressor Drive CDS 803 includes a compressor short-cycling protection that prevents mechanical wear to the compres-
sor and reduces the risk of oil shortage caused by starting and stopping too often. The short-cycle protection consists of 2 timers:
• The interval between starts ensures that a new start first becomes active when the start time has expired.
• The minimum run time ensures that the compressor always runs for a defined minimum time before stopping the compressor.
•
Warning 96, Start Delay is shown in the display if there is a start signal and the INTERVAL BETWEEN STARTS has not expired.
•
Warning 97, Stop Delay is shown in the display if there is a stop signal and the MINIMUM RUNTIME has not expired.
Speed
Start signal
On
Off

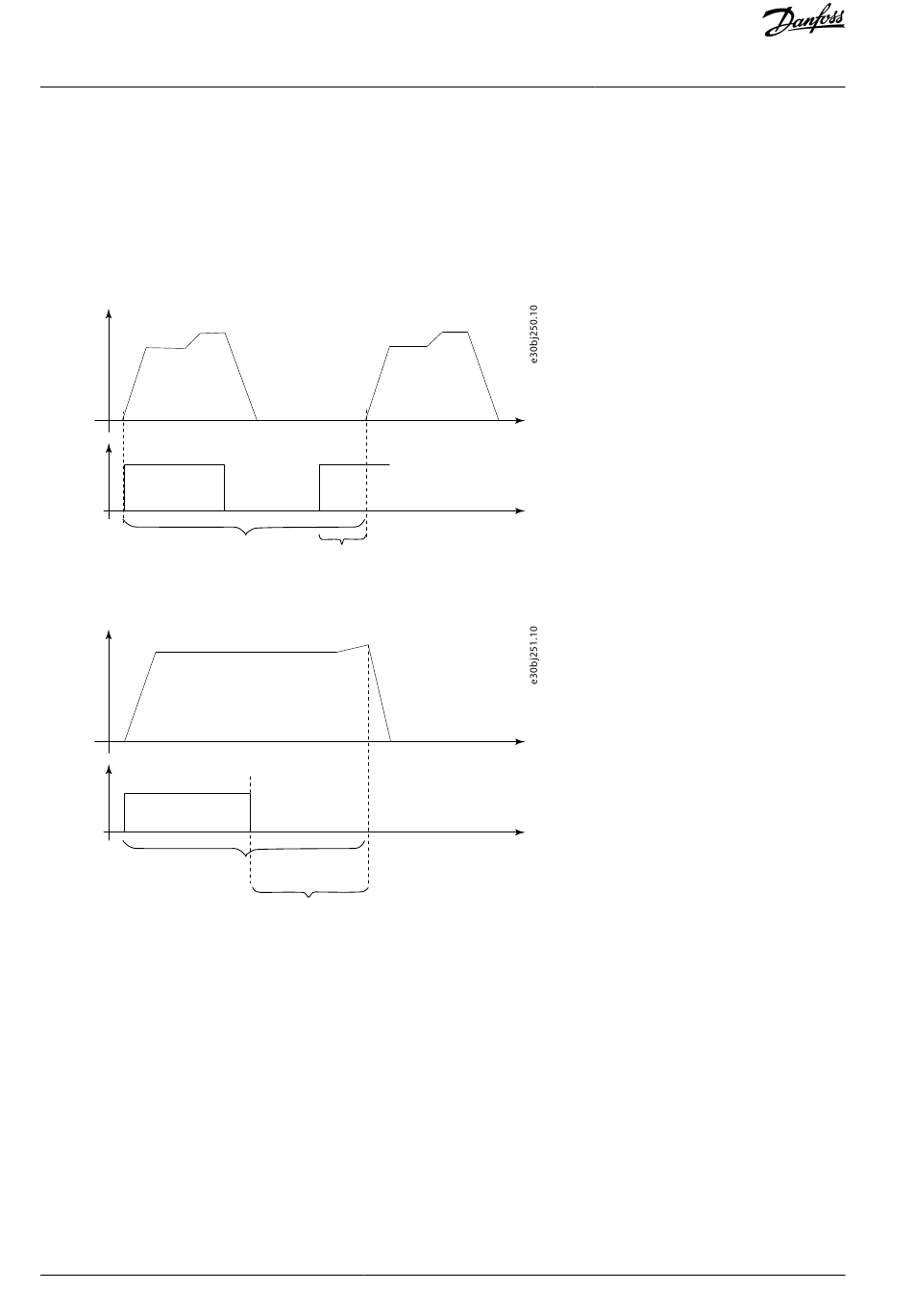

Illustration 4: Short Cycle Protection, Start Delay
Speed
Start signal
On
Off
Minimum run time expired
Illustration 5: Short Cycle Protection, Stop Delay

3.2.1.4 Anti-reverse Protection

The anti-reverse protection function prevents the compressor scroll set from running in the wrong direction during stop.
14 | Danfoss A/S © 2021.05
Interval between
Warning 96
Starts expires
"Start Delay"
Warning 97
"Stop Delay"
Time
Time
Time
Time
