Summary of Contents for Manhattan Comfort 400200

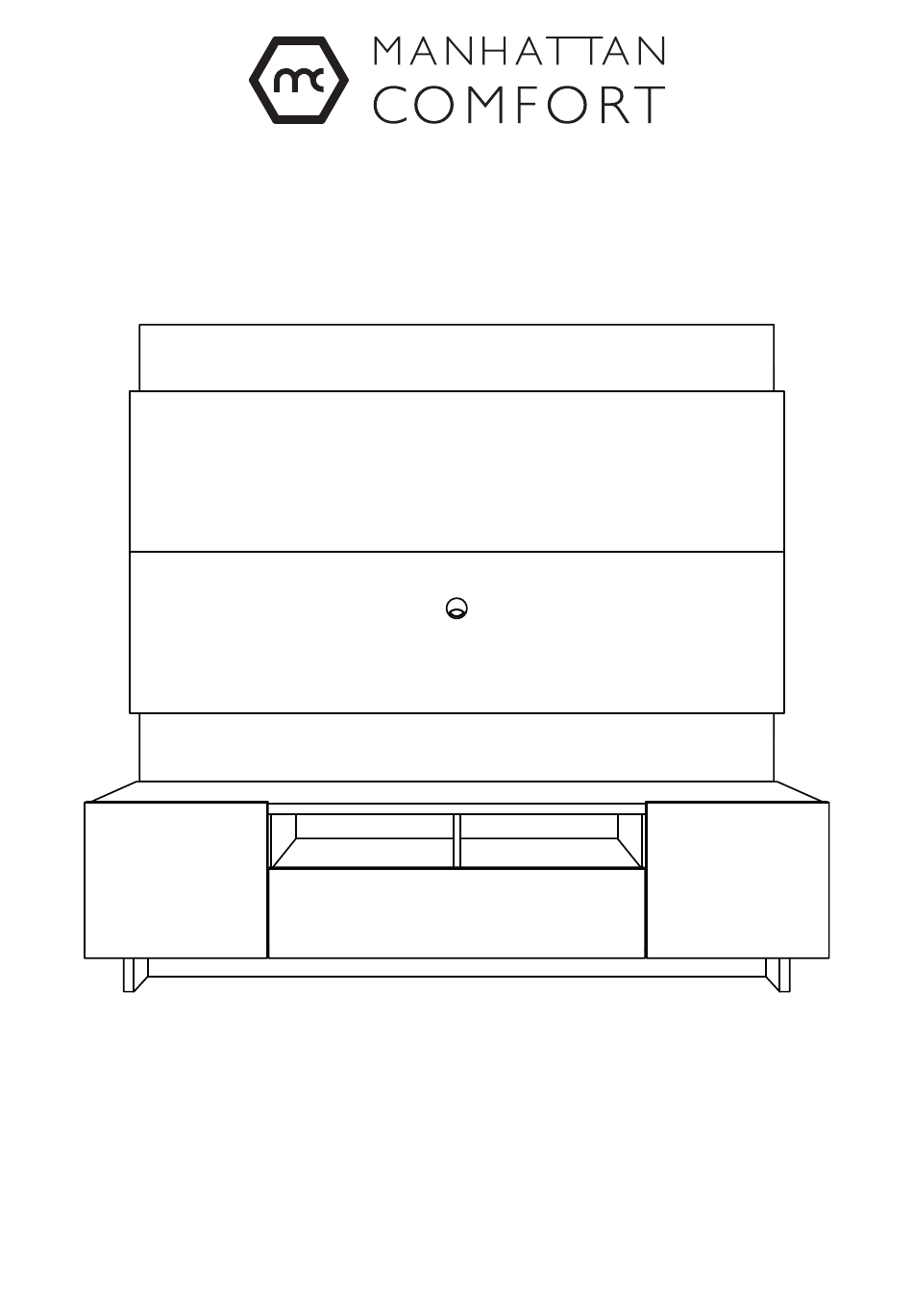

- Page 1 ASSEMBLY INSTRUCTIONS COD: 400200 REV. 01...
-
Page 2: Important Remarks
IMPORTANT REMARKS Never climb or lean on the furniture. Use the packaging to cover the Indentify the parts by observing the You may suffer serious accidents. assembly area and separate number printed on their edges. all parts. CARE INSTRUCTIONS HANDLING Wipe clean using a damp cloth and a mild cleaner. - Page 3 HARDWARE Identify and separate the hardware used in the assembly. There's a label on each package identifying the parts and where to use them. STICKER - 12x 4462-6x 1669-20x 1668-28x 5715-4x 0342-6x 2511-6x 0357-28x 0136-7x 10063-12x 2014-3x 1533-14x 9895-12x 9509-1X 7519-30x 9070-5x 4157-4x...
- Page 4 DESCRIPTION L:1805mm A:1757mm P: 462mm W:71.06 inches H:69.17 inches D: 18.19 inches CÓD:400200 DESCRIPTION QUANTITY PART BOTTOM PANEL UPPER PANEL PANEL SIDE BACK SIDE SUPPORT FRONT SUPPORT UPPER BACK PANEL BOTTOM PANEL PANEL SIDE 66Lb BASE TOP BOARD OUTER LEFT SIDE...
- Page 5 1669 1668 5715 0136 1533 3557 9509 K K K APPLY GLUE...
- Page 6 STICKER 4462 10063 1668 7519 9895...
- Page 7 2511 0342 7519 0357...
-
Page 8: Hinge Adjustment
1669 2014 0348 3706 3557 HINGE ADJUSTMENT 08 03 Use the PVA glue before screwing. - Page 9 9070 4157 0348 11986 3557 3706 3527 Attention The LED lights must be assembled in this step. Part 8 can be mounted on both the right and left sides of the furniture, depending on the need to fit the LED switch. LED LIGHTS SET 2x1,6 m WITH SWITCH INPUT: 100-240Vac...
- Page 10 9070 2088 6244 Measurement to drill the wall. Ø8MM Ø5/16 INCHES Wall 1805.0 164.5 674.0 674.0 Panel 1348.0 164.5 Tv Stand Floor...
- Page 11 WIRE CHANNEL ATTENTION Pass the cables through the back before Panel. CLICK...
