Flycam G-Axis 5000 Assembly Manual

Gimbal support handheld camera stabilizer

Hide thumbs Also See for G-Axis 5000:

Download this manual

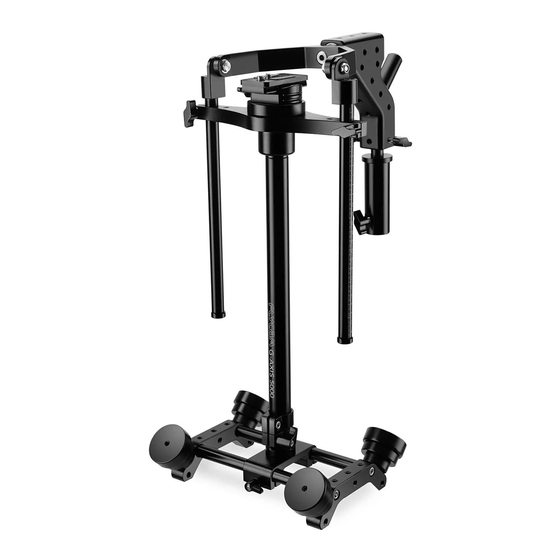

G-Axis 5000 Gimbal Support Handheld

Camera Stabilizer

(FLCM-GX-5000)

A s s e m b l y M a n u a l

What's In The Box

Please inspect the contents of your shipped package to ensure you have received everything that is listed

below.

12 x Weights

Base Weight Platform

Gimbal Support

Gimbal extension

Flycam G-Axis 5000 Stabilizer

Allen Key (3/16")

Bag Packing

No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright

statutes or in writing by the Publisher.

Page 1 G-Axis 5000 Gimbal Support Handheld Camera Stabilizer (FLCM-GX-5000) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
Page 2 G-Axis 5000 Gimbal Support Setup  Insert the Flycam G-Axis 5000 Stabilizer into the Base Weight Platform.  Then rotate the Flycam G-Axis 5000 Stabilizer and tighten it properly as shown in the image.  Then insert the weights into the base platform, as shown in the image.
Page 3 & vest.  Loosen the knob and bolt using a 3/16” Allen Key.  Now increase the height of the Flycam Stabilizer. It offers a great range of handle height NOTE: adjustment, which lets you achieve an ideal balance &...
Page 4 3/8"-16 and 1/4"-20 screws for mounting.  Then insert the P-QRG into the Gimbal’s handle and secure it properly with a screw driver.  Mount the Gimbal (Not Included) onto the Flycam Stabilizer and secure it by tightening the knob.
Page 5  Now loosen both the knobs of the Base Weight Platform, as sown in the image.  Then to balance the Flycam Stabilizer, move the Base Weight Platform and properly tighten it from both the knobs.
Page 6 & create cinematic jib shots transitioning from low to high-angle & high to low-angle. YOUR FLYCAM G-AXIS 5000 GIMBAL SUPPORT CAMERA STABILIZER ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase.
