Hillsdale Furniture Jasmine 1119-010 Quick Start Manual

Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to
insure that all components are in proper position, tight and free from damage. Keep this assembly instruction for future reference.
Adult assembly is required
Hardware List
A (8) 30mm Wood Screws
B (8) 1/4" x 50mm Allen Bolts
C (12) 1/4" Flat Washers
D (12) 1/4" Spring Washers
E (1) 1/4" Allen Wrench
F (4) 1/4" x 65mm Allen Bolts
Parts List
G (1) Back Panel
H (2) Side Panels
I (1) Front Rail
J (1) Rear Rail
K (14) Plywood Slats
L (4) Feet
H
B B
D D
C C
C C
D D
B B

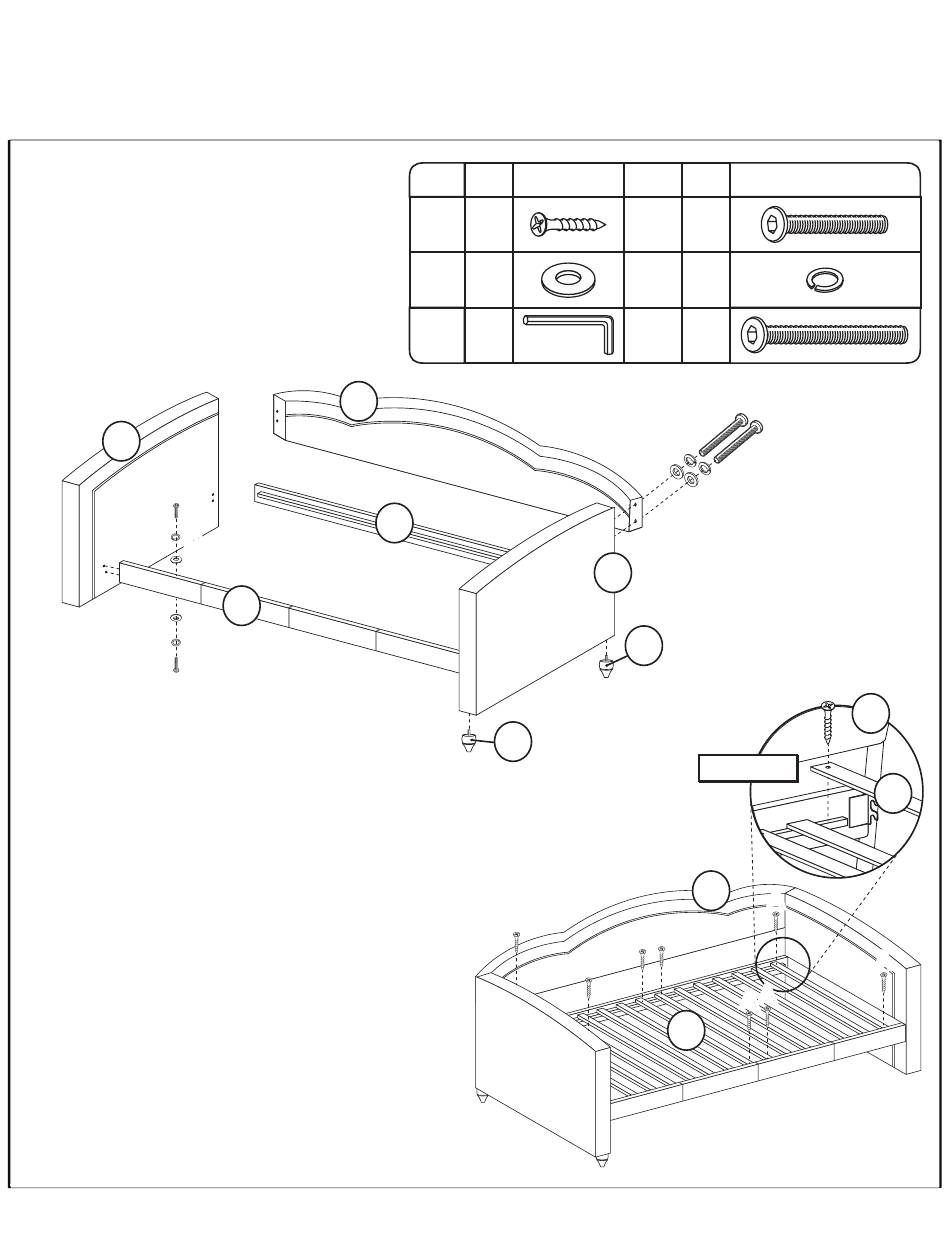

STEP 1

Begin assembly by attaching the Feet (L)
to the Side Panels (H).

STEP 2

Attach the Back Panel (G) to the back of each Side Panel (H) by aligning the
holes and securing with 2 Allen Bolts (F), 2 Spring Washers (D) & 2 Flat Washers
(C) from the backside per each end. Do not fully tighten bolts for this step.

STEP 3

Next attach the Rear Rail (J) to the back of each Side Panel
(H) by aligning the holes and securing with 2 Allen
Bolts (B), 2 Spring Washers (D) and 2 Flat
Washers (C) per each end. Do not fully tighten
bolts for this step.

STEP 4

Attach the Front Rail (I) to the inside of each Side
Rail (H) in the front by aligning the holes and
securing with 2 Allen Bolts (B), 2 Spring Washers
(D) and 2 Flat Washers (C) per each end. Tighten
all bolts from Steps 1 through 3 using the Allen Wrench
(E) that has been provided.
CARE & MAINTENANCE: The touch of a soft cloth is all the maintenance the finish will ever need. Please do not use harsh or abrasive cleaners for polishing,
as they may cause damage to the finish. Periodic checks are recommended to make sure that all bolts, screws and nuts are securely tightened.

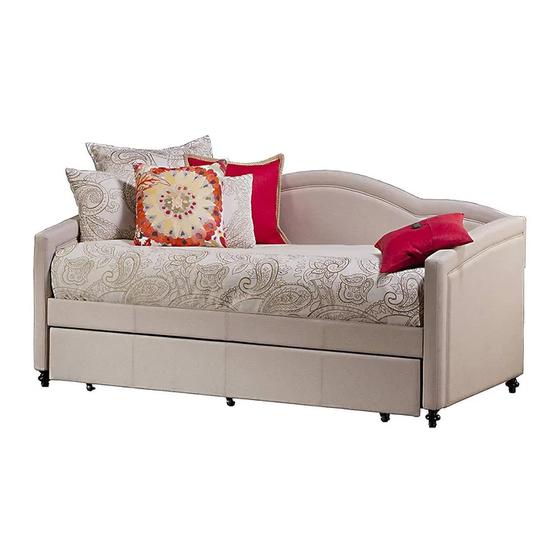

UPHOLSTERED DAYBED

PART
G
J
I
QTY HARDWARE
A 8
C 12
E 1
H
L
A A
A A
PART QTY HARDWARE
B 8
D 12
F 4
F F
D D
C C

STEP 5

Insert both ends of each
Plywood Slat (K) onto the
Front and Rear Rails (I &
J) and secure with 8
Wood Screws (A). See
L
Figure 1. The assembly is
now complete.
A A
FIGURE 1
G
A A
A A
A A
A A
A A
K
*
Trundle Sold Separately
Trundle Panel
Page 1 of 1
G
A
K
A A
