Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure
that all components are in proper position, tight and free from damage. Keep this assembly instruction for future reference. Adult
assembly is required. Customer Service Phone Number: 502-562-0000

HARDWARE LIST

A (4) Allen Bolts 5/16” x 3-3/4”
B (8) Allen Bolts 1/4” x 2-3/4”
C (1) Allen Bolt 1/4” x 1-1/2”
D (10) Allen Bolts 1/4” x 3/4”
E (10) Spring Washers 1/4”
F (10) Flat Washers 1/4”
G (4) Square Lock Nuts
H (1) Allen Wrench 1/4”
J (1) Allen Wrench 5/16”
K

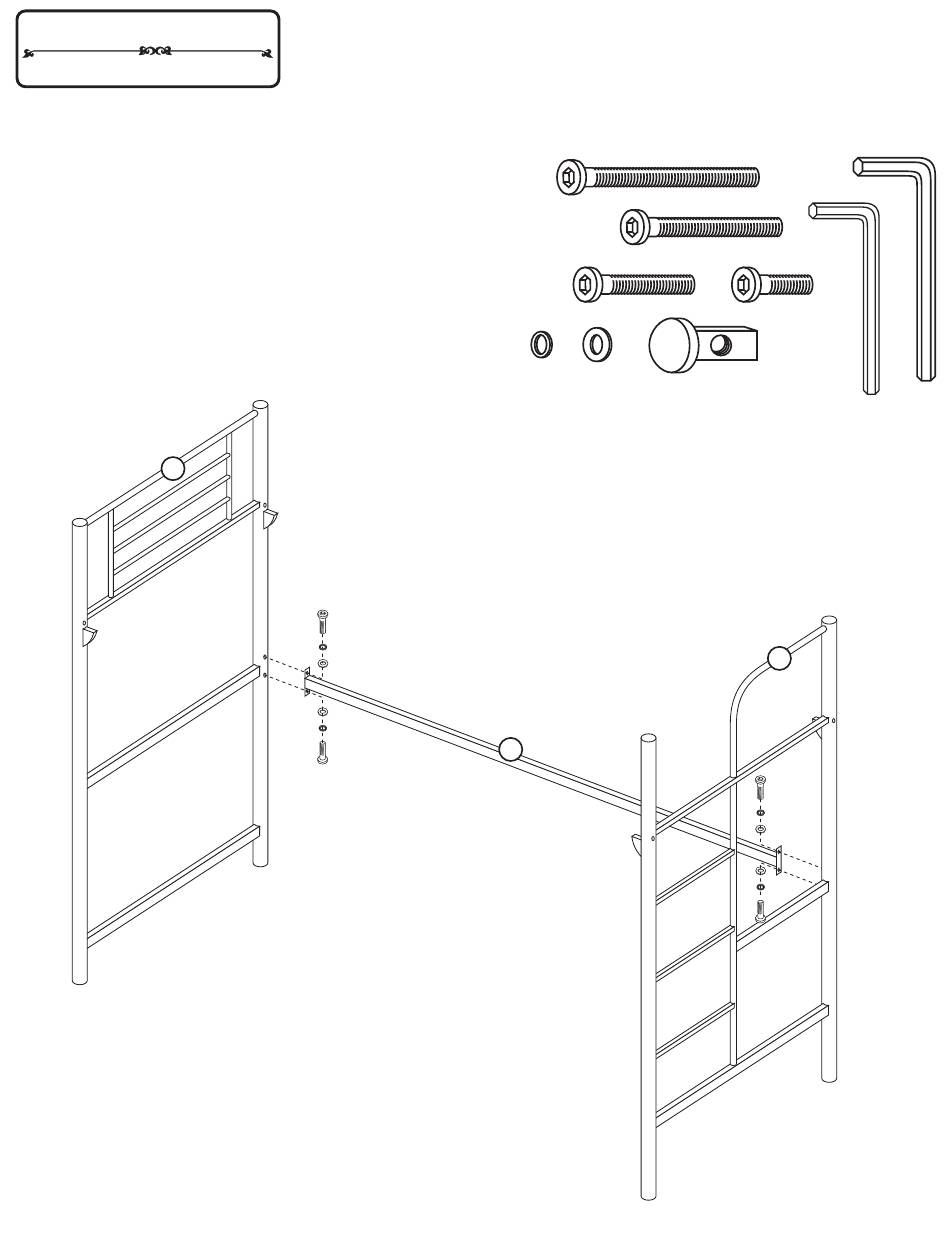

STEP 1

Begin assembly by attaching the Support Brace (R) to each
inner back post on the Full End Panel (K) & Open End
Panel (L) using 2 Allen Bolts (D), 2 Spring Washers (E) &
2 Flat Washers (F) from the inside per each side. Do not
fully tighten bolts.
See next page for more assembly.
UNIVERSAL STUDY LOFT
Model #1178-021 Carton A
Model #1178-011 Carton B

PARTS LIST

K (1) Full End Panel
L (1) Open End Panel
M (1) Top Support Frame
N (2) Side Rails
P (2) Cross Braces
R (1) Support Brace
S (1) Shelf
D
E
F
F
E
D
A
B
C
E F G
R
Date: 05-23-07
Page 1 of 3
J
H
D
L
D
E
F
F
E
D
