CAUTION
"Never repair" fuses or replace them with a fuse of a higher amperage – risk
■
of fire. This may also cause damage at another part of the electrical system.
A blown fuse is recognisable by the molten metal strip. Replace the faulty
■
fuse with a new one of the same amperage.
If a new fuse burns through again, consult a specialist immediately.
■
Note
We recommend that you always carry replacement fuses in the vehicle. A box
■
of replacement fuses can be purchased from ŠKODA Original Accessories.
One fuse may cover several consumers.
■
A single consumer may use several fuses.
■
Fuses in the dash panel
Read and observe
and
on page 182 first.
The fuses are located on the bottom of the dash panel behind a cover.
Replacing fuses
›
Remove the cover of the fuse box
›
Remove the plastic clip from the holder in the fuse box cover in the dash
panel.
›
Place the clamp on the respective fuse and pull this fuse out.
›
Insert a new fuse.
›
Replace the clamp in the original place.
›
Insert the top edge of the cover into the dash panel first.
›
Push the lower edge of the cover in the region
All manuals and user guides at all-guides.com

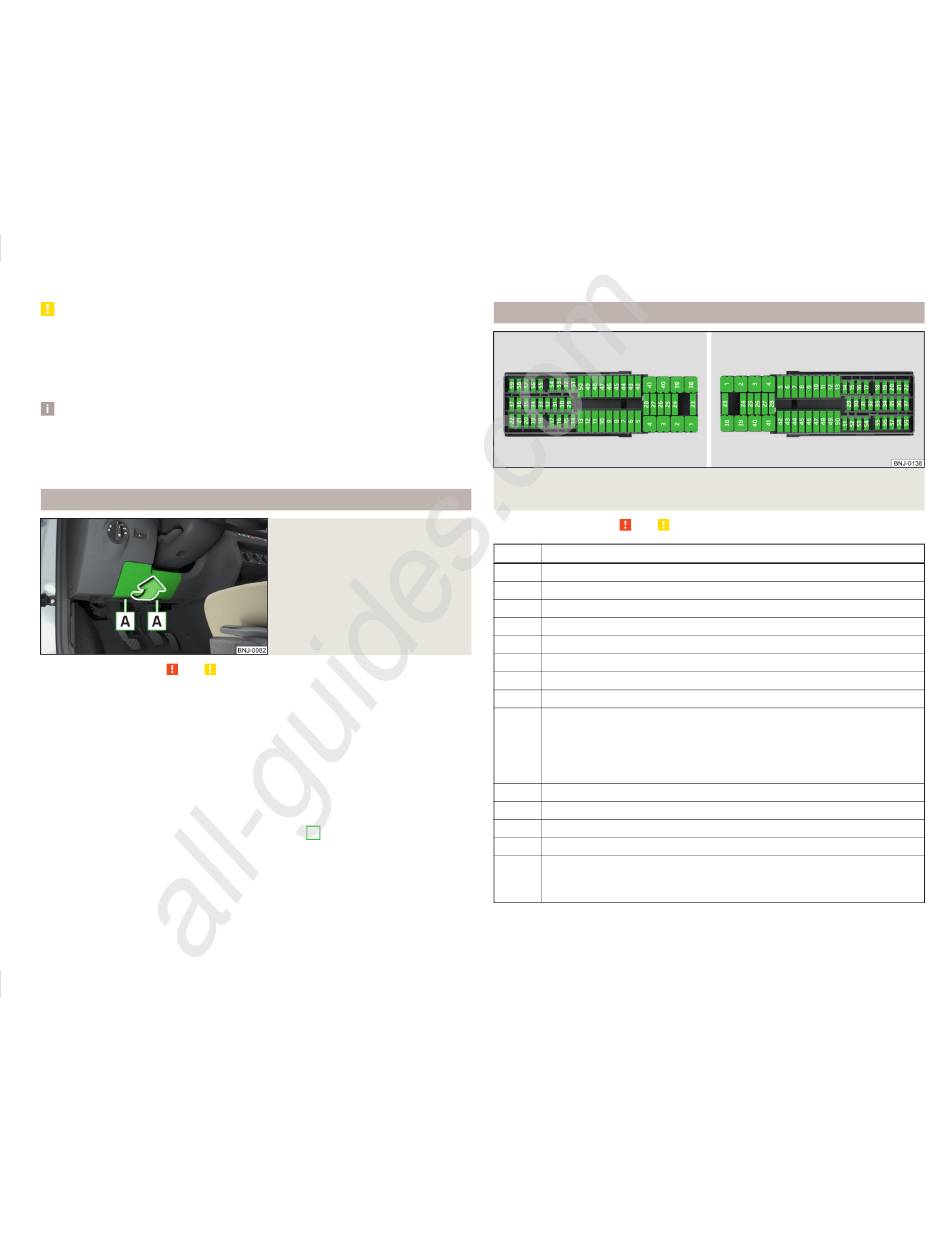

Fig. 178
Remove the cover
» Fig. 178
in the direction of the arrow.
.
A
Assignment of the fuses in the dash panel
Fig. 179 Schematic representation of the fuse box for vehicles with left-
hand steering/right-hand steering
Read and observe
and
on page 182 first.
No.
1
Left parking light, parking light, high-mounted brake light
2
Central locking system
3
Relay for ignition
4
Right-hand light, rear fog light, license plate light
5
Power windows - driver
6
Central control unit, interior lighting
7
Horn
8
Towing hitch - left light
Operating lever beneath the steering wheel, engine control unit (on-
ly without KESSY), automatic gearbox (only without KESSY), selector
9
lever of the automatic gearbox (only without KESSY), ESC (only with-
out KESSY), control unit for trailer detection (only without KESSY),
power steering (only without KESSY), airbag (only without KESSY)
10
Power windows - rear left
11
Headlight cleaning system
12
Radio display
13
12-volt socket in luggage compartment
Operating lever under the steering wheel, light switch, ignition key
14
removal lock (automatic gearbox), diagnostic connector, headlight
flasher, SmartGate controller, rain sensor, light sensor
Power consumer
Fuses and light bulbs
183
