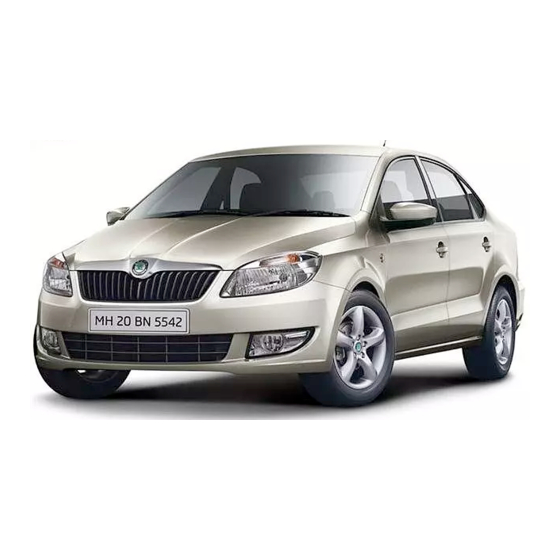

Skoda Rapid Owner's Manual
Hide thumbs Also See for Rapid:
Table of Contents

Advertisement

How you can contribute to a cleaner environment
The fuel consumption of your Škoda - and thus the level of
pollutants contained in the exhaust - is also determined by
how you drive.
The noise level and wear and tear are also influenced by how
you personally handle your vehicle.
This Owner's Manual tells you how to drive your Škoda to
achieve the minimum impact on the environment, and how
to save money at the same time. Look up „Environment" in
the Index to find out more.
Please also refer to all the texts identified with a
in this
Owner's Manual.
Make your contribution - for the sake of the environment.
www.skoda-auto.com
Návod k obsluze
Rapid anglicky 09.11
S55.5613.01.91
5J5 012 003

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rapid and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Skoda Rapid

  • Page 1 Index to find out more. Please also refer to all the texts identified with a in this Owner's Manual. Make your contribution - for the sake of the environment. www.skoda-auto.com Návod k obsluze Rapid anglicky 09.11 S55.5613.01.91 5J5 012 003...
  • Page 2 ŠKODA Rapid OWNER'S MANUAL...
  • Page 3 Thank you for your trust What this Škoda offers you is a car featuring the most modern engi- neering and a wide range of convenience equipment which you will undoubtedly wish to use to the full in your daily motoring. Before the first use, please read and follow the information in this Owner’s Manual so that you become familiar with the vehicle quickly and comprehensively and are able to recognize and avoid possible...
  • Page 4: Table Of Contents

    Table of Contents Table of Contents About this Owner’s Manual Airbag system ........Engine coolant .
  • Page 5: About This Owner's Manual

    About this Owner’s Manual About this Owner’s Manual ● For an alphabetical index, see the end of the manual. ● A list of acronyms and abbreviations explains technical abbreviations and terms at the end of the manual. ● Directions such as left, right, front, rear generally refer to the direction of trav- el, unless otherwise indicated.
  • Page 6: Abbreviations

    Abbreviations Abbreviations Abbreviation Meaning Engine revolutions per minute (engine speed). Anti-lock brake system. 6-speed automatic gearbox. Cubic centimetres. Unit for stating the displacement. Carbon dioxide. Deutsches Institut für Normung (German Institute for Stand- ardization). European Standard. Engine control unit (Electronic Power Control). Electronic Toll Collection System.
  • Page 7 Abbreviations Vehicle overview Before driving When driving Maintenance, cleaning, servic- Do-it-yourself...
  • Page 8: Vehicle Overview

    Exterior views Vehicle overview Exterior views Side view Fig. 1 Overview of the vehicle side. Legend to fig. Fuel filler flap ............Roof aerial .
  • Page 9 Exterior views Front view Fig. 2 Overview of the vehicle front. Legend to fig. Windscreen Front windscreen wiper ..........Bonnet .
  • Page 10 Exterior views Rear view Fig. 3 Overview of the vehicle rear. Legend to fig. Roof aerial ............. . Rear window High-mounted brake light Licence plate lighting...
  • Page 11: Exterior Views

    Exterior views Vehicle overview Before driving When driving Maintenance, cleaning, servic- Do-it-yourself...
  • Page 12: Vehicle Interior

    Vehicle interior Vehicle interior Overview of the driver’s door Fig. 4 Overview of the control elements in the driver’s door. Legend to fig. Buttons for operating the power windows: ......–...
  • Page 13 Vehicle interior Vehicle overview Before driving When driving Maintenance, cleaning, servic- Do-it-yourself...
  • Page 14: Overview Of The Driver's Side

    Vehicle interior Overview of the driver’s side Fig. 5 Overview of the driver’s side. Legend to fig. – Turn signal lights  – Parking light  Lever for: ..............Instrument cluster: –...
  • Page 15 Vehicle interior – Automatic wash-wipe for the windscreen  – Rocker button to operate the multi-function display , / Air outlet ,  ............Light switch : .
  • Page 16: Overview Of Centre Console

    Vehicle interior Overview of centre console Top part of the centre console Fig. 6 Overview of the top part of the centre console. Legend to fig. Air outlet ,  ............Button for: –...
  • Page 17 Vehicle interior Bottom part of the centre console Fig. 7 Overview of the bottom part of the centre console. Legend to fig. Lever for: – Manual gearbox ............–...
  • Page 18: Overview Of The Passenger Side

    Vehicle interior Overview of the passenger side Fig. 8 Overview of the pas- senger side. Legend to fig. Air outlet ,  ............Installation position of the front passenger airbag in the instru- ment panel .
  • Page 19: Instrument Cluster

    Instrument cluster Instrument cluster Warning and indicator lights Sym- Meaning ⇒  The warning and indicator lights indicate warnings ⇒  , problems ⇒  or certain  Engine control or emission control system disturbed. functions. Some warning and indicator lights illuminate when you switch on the ignition and should go out with the engine running or while driving.
  • Page 20 Instrument cluster WARNING (Continued) ● Park the vehicle in a safe distance from moving traffic such that no parts of the exhaust system come in contact with highly flammable materials under the vehicle such as dry grass, fuel. ● A broken-down vehicle is a high accident risk to itself and other road users.
  • Page 21: Instruments

    Instrument cluster Instruments Additional information and warnings: ● Warning and indicator lights ⇒  p age 17 ● Display of the gears engaged (automatic gearbox) ⇒  p age 98 ä Introduction ● Information on service intervals ⇒  B ooklet Service schedule This chapter contains information on the following subjects: WARNING Overview of the instruments...
  • Page 22 Instrument cluster Speedometer. For the sake of the environment Adjust button for the clock. Shifting to a higher gear as early as possible are ways to minimise fuel consump- – Press the button to select the hour or minute display. tion and to reduce operating noise levels.
  • Page 23 Instrument cluster Outside temperature display Note At outside temperatures colder than +39 °F (+4 °C), a “snow flake symbol” (black There are different instrument clusters, so the designs and displays may vary. On ice warning) also appears on the outside temperature display. This symbol flashes the display without warning or information texts, problems are shown only via in- initially and then stays lit until the outside temperature increases above +43 °F dicator lights.
  • Page 24 Instrument cluster Retrieving service message The current service message can be checked with the ignition switched on, the engine switched off and the vehicle stationary: ● Press the button in the instrument cluster repeatedly until the wrench  symbol  appears. An overdue service is indicated by a minus sign in front of the mileage or number- of-days indication.
  • Page 25: Škoda Information System

    Instrument cluster Škoda information system WARNING Driver inattention can lead to accidents and injuries. ä Introduction ● Never select any menus in the instrument cluster while driving. Ð This chapter contains information on the following subjects: Overview of the multi-function display (MFD) Overview of the multi-function display (MFD) .
  • Page 26 Instrument cluster Possible indications Menu Function Driving time Driving time in hours (h) and minutes (min) that has elapsed after the ignition has been switched on. The current fuel consumption is indicated while driving in mpg (l/100 km) or with the engine running and the vehicle Current fuel consumption stopped in gallons per hour (litres per hour).
  • Page 27 Instrument cluster Note When the vehicle is stationary (or driven at a very low speed) the temperature in- dicated may be slightly higher than the actual outside temperature because of heat radiated by the engine. Ð Vehicle overview Before driving When driving Maintenance, cleaning, servic- Do-it-yourself...
  • Page 28: Before Driving

    Before you start Before driving Before you start Driving tips Additional information and warnings: ● Sitting properly and safely ⇒  p age 44 ● Transporting ⇒  p age 81 ä Introduction ● Starting, shifting gears, parking ⇒  p age 94 ●...
  • Page 29 Before you start Checklist (Continued) ¥ Fasten the seat belt properly before driving and leave it on while driving. This also applies to all passengers ⇒  p age 52. ¥ Only carry as many people as there are seats and seat belts. ¥...
  • Page 30 Before you start NOTICE Škoda is not responsible for damage to the vehicle arising from poor quality fuel, poor service or lack of original parts availability. Ð Driving through water on roads ä First read and observe the introductory information and safety warn- ings on page 26.
  • Page 31: Technical Data

    Before you start Technical data Additional information and warnings: ● Transporting ⇒  p age 81 ● Driving in an environmentally conscious manner ⇒  p age 112 ä Introduction ● Fuel ⇒  p age 127 ● Engine oil ⇒  p age 136 This chapter contains information on the following subjects: ●...
  • Page 32 Before you start Vehicle identification number These vehicle data are also indicated in the service schedule. The vehicle identification number can be read from the outside through a viewing Type plate window in the windscreen. The viewing window is on the side at the bottom of ⇒ ...
  • Page 33 Before you start Track gauge rear 1,498 mm Ground clearance at permissible gross 129 - 151 mm weight Depending on the rim and tyre size, small deviations are possible. Value at permissible gross weight; the specified value may differ depending on the equipment. NOTICE ●...
  • Page 34: Opening And Closing

    Opening and closing Opening and closing Vehicle key set WARNING (Continued) ● Never allow children or people requiring help alone in the vehicle. In an ä Introduction emergency, they are unable to leave the vehicle alone or to help themselves. For example, depending on the season, very high or low temperatures may de- velop in a closed vehicle, causing serious injuries and illness or death, espe- This chapter contains information on the following subjects:...
  • Page 35 Opening and closing Flipping the key bit out or in Note ⇒  f ig. 12 By pressing the button , the key bit unlocks and flips out. ⇒  f ig. 12 If the buttons in the vehicle key or one of the central locking buttons ⇒ ...
  • Page 36 Opening and closing Replacing the battery Fig. 14 Vehicle key: Open the battery compartment cover / re- move the battery. ä First read and observe the introductory information and safety warn- For the sake of the environment ings on page 32. ●...
  • Page 37: Central Locking And Closing System

    Opening and closing Central locking and closing system WARNING (Continued) ● Depending on the season, very high or low temperatures may develop in a ä Introduction closed vehicle, causing serious injuries and illness or death especially in young children. This chapter contains information on the following subjects: ●...
  • Page 38 Opening and closing Unlocking and locking the vehicle from the outside Fig. 15 Key without remote control / remote control key ä First read and observe the introductory information and safety warnings on page 35. Function Action with the buttons in the vehicle key Action with the vehicle key in the lock cylinder or with a mechanical vehi- ⇒ ...
  • Page 39 Opening and closing Unlocking and locking the vehicle from the inside Fig. 16 In the driver’s door: Central locking button. ä First read and observe the introductory information and safety warn- ings on page 35. ⇒  f ig. 16 Press the button: Unlocking the vehicle ...
  • Page 40: Doors

    Opening and closing Doors Illumi- Possible cause Remedy nates ä Introduction Do not drive the vehicle!  At least one vehicle door is open  Open the corresponding vehicle door or not closed properly. and close it again. This chapter contains information on the following subjects: When switching on the ignition, some warning and indicator lights illuminate Warning light .
  • Page 41 Opening and closing ⇒  f ig. 17 ⇒  f ig. Child safety lock Position of the slot Child safety lock off. Child safety lock on. WARNING When the child safety lock is switched on, the respective door can not be opened from the inside.
  • Page 42: Boot Lid

    Opening and closing Boot lid NOTICE Before opening the boot lid, check that there is sufficient space for opening ä Introduction and closing the boot lid, for example, in garages. Ð This chapter contains information on the following subjects: Opening the boot lid Opening the boot lid .
  • Page 43 Opening and closing ä Unlocking with the vehicle key First read and observe the introductory information and safety warn- ings on page 40. ⇒  f ig. 19 Press and hold the button in the vehicle key until the boot lid unlocks ...
  • Page 44: Power Windows

    Opening and closing Power windows Electrically opening or closing the windows ä Introduction This chapter contains information on the following subjects: Electrically opening or closing the windows ........Force limiter of the power windows .
  • Page 45 Opening and closing Force limiter of the power windows ä First read and observe the introductory information and safety warn- ings on page 42. The force limiter of the power windows can reduce the risk of crush injury when closing a window ⇒  .
  • Page 46: Sitting Properly And Safely

    Sitting properly and safely Sitting properly and safely Adjusting the seat position WARNING (Continued) ● Children should always be secured in the vehicle with an approved and ap- ä Introduction propriate restraint system according to their size and weight ⇒  p age 66, ⇒ ...
  • Page 47 Sitting properly and safely ● Never put your feet on the seat cushion or seat backrest. WARNING ● Never ride in the footwell. Improper adjustment of the seats can cause accidents and serious injuries. ● Never sit on the front or rear armrest. ●...
  • Page 48 Sitting properly and safely Correct seated position Individuals who can not assume the correct seated position because of their phys- ical characteristics should check with a specialist garage about possible special in- stallations. Only with the correct seated position can the optimal protective effect of seat belts and airbags be obtained.
  • Page 49 Sitting properly and safely Mechanical controls on the front seats Fig. 26 Control lever on the back of the front passenger seat Fig. 25 Controls on the front ä seats. First read and observe the introductory information and safety warn- ings on page 44.
  • Page 50 Sitting properly and safely Adjusting the head restraint Head restraint adjustment for small people Slide the head restraint fully down, even if the head is then below the top edge of the head restraint. In the lowest position, there may be a small gap between the head restraint and the seat backrest.
  • Page 51 Sitting properly and safely ⇒  f ig. 28 ● Fold the lever down. WARNING ● Adjust the steering wheel such that you can hold it with both hands on the Driving or riding with head restraints removed or improperly adjusted increa- outer edge (9 o’clock and 3 o’clock positions) and arms slightly bent.
  • Page 52 Sitting properly and safely Centre armrest WARNING The centre armrest may interfere with the movement of the arms of the driver and cause accidents and serious injuries. ● Always keep the storage compartments in the centre armrest closed while driving. ●...
  • Page 53: Seat Features

    Sitting properly and safely Seat features ä Introduction Additional information and warnings: ● Adjusting the seat position ⇒  p age 44 ● Seat belts ⇒  p age 52 ● Airbag system ⇒  p age 60 ● Child seats (optional) ⇒  p age 66 ●...
  • Page 54: Seat Belts

    Sitting properly and safely Seat belts WARNING (Continued) ● Before each journey, each occupant in the vehicle must always assume the ä Introduction correct seated position and correctly fasten the seat belt belonging to his or her seat and keep it properly fastened during the ride. This applies to all pas- sengers and also in city traffic.
  • Page 55 Sitting properly and safely Frontal collision and the laws of physics The magnitude of the “kinetic energy” depends essentially on the speed at which the vehicle is travelling and on the weight of the vehicle and its occupants. The greater the speed and weight increase, the greater the amount of energy which has to be absorbed in the event of an accident.
  • Page 56 Sitting properly and safely What happens to occupants not wearing seat belts? Even at low impact speeds, forces are acting on your body that can not be prop- ped up with your arms and hands. In the event of a frontal collision, occupants not wearing a seat belt are catapulted forward and strike in an uncontrolled way parts of the interior of the vehicle, such as steering wheel, instrument panel and wind- ⇒ ...
  • Page 57 Sitting properly and safely Seat belts protect Accident statistics have shown that the proper wearing of seat belts significantly reduces the risk of injuries and increases the chance of surviving a serious acci- dent. Correctly fastened and adjusted seat belts also increase the optimal protec- tive effect of deploying airbags in the event of an accident.
  • Page 58 Sitting properly and safely If the twisting in the seat belt can not be removed, fasten the seat belt anyway. The twisting may then not be in a belt section which rests directly against the body! Immediately contact a specialist garage to have the twisting removed. WARNING Improper use of seat belts increases the risk of serious or fatal injuries.
  • Page 59 Sitting properly and safely WARNING Improper routing of the webbing may cause serious or fatal injuries in the event of an accident. ● Optimal protection by the seat belts can only be achieved when the seat backrest is in an upright position and the seat belt is adjusted properly accord- ing to body size.
  • Page 60 Sitting properly and safely Adjusting the routing of the webbing to the body size The routing of the webbing can be adjusted with the following equipment fea- tures: ● Seat belt height adjusters for front seats. ● Front seats adjustable for height. WARNING Improper routing of the webbing may cause serious injuries in the event of an accident or sudden braking and driving manoeuvres.
  • Page 61 During rapid pulling on the seat belt, sudden braking, driving downhill, in curves and during acceleration, however, the inertia reel blocks the seat belt.
  • Page 62: Airbag System

    Sitting properly and safely Airbag system WARNING Objects located between the occupants and the airbag deployment area in- ä Introduction crease the risk of injury when the airbags deploy. This would change the de- ployment area of the airbags or the objects would be thrown against the body. This chapter contains information on the following subjects: ●...
  • Page 63 Sitting properly and safely WARNING (Continued) ● Do not let the dust get into the eyes or open wounds. ● Rinse eyes with water if dust has got into them. WARNING Solvent-based cleaning agents cause the surface of the airbag modules to be- come porous.
  • Page 64 Sitting properly and safely Indicator light ä First read and observe the introductory information and safety warnings on page 60. Illuminates Location Possible cause Remedy Visit a specialist garage and have the system checked imme-  Instrument cluster. Airbag system disturbed. diately.
  • Page 65 Sitting properly and safely Components of the vehicle safety concept Situations in which the front airbag does not deploy: The following safety equipment in the vehicle form the vehicle safety concept to ● If the ignition is switched off in a collision. reduce the risk of serious and fatal injuries.
  • Page 66 Sitting properly and safely Front airbags Fig. 41 Installation position and deployment area of the driv- er’s front airbag. Fig. 42 Installation position and deployment area of the front passenger airbag. ä greatest possible distance to the front airbag ⇒  p age 44. As a result, the front air- First read and observe the introductory information and safety warn- ings on page 60.
  • Page 67 Sitting properly and safely ⇒  f ig. 41 ⇒  f ig. 42 The red-boxed areas are covered by the deploying front air- bags (inflation area). Therefore, objects should never be stored or secured in these areas ⇒  . The factory-mounted attachments are not reached by the de- ploying driver and front passenger airbags, such as the base plate for the mobile phone holder.
  • Page 68: Child Seats (Accessories)

    Sitting properly and safely Child seats (accessories) WARNING Unsecured children and not properly secured children can suffer serious or fa- ä Introduction tal injuries during the ride. ● Never place a rearward-facing child seat in the passenger seat when the This chapter contains information on the following subjects: front passenger airbag is enabled.
  • Page 69 Country-specific standards for child seats (selection) The child seats must comply with the ECE-R 44 standard. For more information, contact a Škoda partner or visit www.skoda-auto.com. Classification of the child seats according to ECE-R 44 Weight group Weight of the child...
  • Page 70 Sitting properly and safely With a child seat in the front passenger seat, be sure to observe the following WARNING points: Non-compliance with the checklist, which is for your own safety, can lead to ● For a rearward-facing child seat opposite to the driving direction, the front accidents and injuries.
  • Page 71 Sitting properly and safely When attaching a child seat in the rear seat bench, the position of the front seat DANGER (Continued) must be adapted such that the child has sufficient space. Consequently, adjust ● Adjust the belt height adjuster to its top position. the front seat to the size of the child seat and the size of the child.
  • Page 72 Sitting properly and safely ● Make sure that the seat belt is not twisted. ● Insert the lock tongue into the belt buckle belonging to the seat until it clicks into place. ● The upper webbing must fit firmly and completely against the child seat. ●...
  • Page 73: Lights And Visibility

    Lights and visibility Lights and visibility Lights Illumi- Possible cause Remedy nates ä Introduction illuminates: Driving lights failed  ⇒  p age 203 partially or completely. This chapter contains information on the following subjects: Turn signal, left or right.  The indicator light flashes at twice Check the lighting of the vehicle Indicator lights...
  • Page 74 Lights and visibility Main beam on ⇒  Turn signal and main beam lever . The indicator light  is lit in the instrument cluster. Operate the headlight flasher. The headlight flasher remains on as long as the lever is pulled. The indicator light  is lit. Move the lever to its basic position to turn off the function.
  • Page 75 Lights and visibility Switching lights on and off Fig. 45 Beside the steering wheel: Representation of two ver- sions of the light switch. ä First read and observe the introductory information and safety warn- ● With the parking lights switched on. ings on page 71.
  • Page 76 Lights and visibility Headlight beam adjustment Note ⇒  f ig. 46 With the headlight beam adjustment , the driver is able to adjust the In cool or wet weather conditions, the headlights as well as the taillights and turn beam of the headlights continuously depending on the vehicle load. This allows signals may become temporarily fogged inside.
  • Page 77 Lights and visibility Button or Function position Door contact switch on (centre position). Interior lights switch on automatically when the vehicle is un- locked, opening a door or removing the vehicle key from the igni-  tion switch. The light goes off a few seconds after you close all doors when locking the vehicle or switching on the ignition.
  • Page 78: Sun Screen

    Lights and visibility Sun screen WARNING Folded-down sun visors may reduce visibility. ä Introduction ● Always return sun visors to their fixtures when they are no longer needed. Ð This chapter contains information on the following subjects: Sun visors ............... . . Sun visors Fig.
  • Page 79: Windscreen Wipers And Washers

    Lights and visibility Windscreen wipers and washers Windscreen wiper lever ä Introduction This chapter contains information on the following subjects: Windscreen wiper lever ............Checking and replenishing the windscreen washer fluid level .
  • Page 80 Lights and visibility Note WARNING The windscreen wipers work only when the ignition is switched on and the bon- Never mix radiator antifreeze or similar unsuitable additives in the windscreen net is closed. Ð washer fluid. This would form an oily film on the windscreen which impairs visibility significantly.
  • Page 81: Mirrors

    Lights and visibility Mirrors Exterior mirrors ä Introduction This chapter contains information on the following subjects: Interior mirror ..............Exterior mirrors .
  • Page 82 Lights and visibility Turn the rotary knob to the desired position: Adjust the left exterior mirror by turning the rotary knob to the  front, rear, right or left.  Zero position. No adjustment of the external mirrors possible. Adjust the right exterior mirror by turning the rotary knob to the ...
  • Page 83: Transporting

    Transporting Transporting Driving tips WARNING (Continued) ● Stow items inside the vehicle in such a way that they can never get into ä Introduction the deployment areas of the airbags. ● Always keep the storage compartments closed during the ride. This chapter contains information on the following subjects: ●...
  • Page 84 Transporting Driving with an open boot lid poses a particular danger. Secure all items and the WARNING open boot lid properly and take appropriate measures to reduce the penetration of toxic exhaust gases. When transporting heavy items, the handling of the vehicle changes and the stopping distance becomes longer.
  • Page 85 Transporting Driving with a loaded vehicle ● Avoid sudden braking and driving manoeuvres. ● Decelerate earlier than usual. ä First read and observe the introductory information and safety warn- ings on page 81. WARNING Slipping cargo items may affect the stability and safety of the vehicle signifi- For good handling characteristics of a loaded vehicle, observe the following: cantly, causing accidents and serious injuries.
  • Page 86 Transporting WARNING Exceeding the maximum permissible weights and axle loads can cause vehicle damage, accidents and serious injuries. ● The actual axle loads must never exceed the permissible axle loads. ● The payload and the distribution of the load in the vehicle have an impact on the handling and braking performance.
  • Page 87: Useful Equipment

    Useful equipment Useful equipment Storage facilities WARNING (Continued) ● Never use floor mats or other floor coverings over the built-in mat. ä Introduction ● Make sure that no objects can enter the footwell of the driver during the ride. This chapter contains information on the following subjects: ●...
  • Page 88 Useful equipment Storage compartments in the centre console Storage compartment in the front centre armrest Fig. 54 In the centre console: Fig. 56 Storage compartment Front storage compartment. in the front centre console. ä First read and observe the introductory information and safety warn- ings on page 85.
  • Page 89 Useful equipment Storage compartment on the front passenger side WARNING An open storage compartment on the passenger side may increase the risk of serious injuries in the event of an accident or sudden braking and driving ma- noeuvres. ● Always keep the storage compartment closed during the ride. Ð...
  • Page 90 Useful equipment WARNING Clothes hanging from the hooks may restrict the driver’s view, thereby caus- ing accidents and serious injuries. ● Always hang clothes on the clothes hooks such that the driver’s view is not restricted. ● Always use the clothes hooks in the vehicle for hanging light clothing only. Never leave heavy, hard or sharp objects in the pockets.
  • Page 91: Cup Holders

    Useful equipment Cup holders Note Beverage bottle holders are located in the open storage compartments of the driver’s and front passenger’s door. ä Introduction Ð Cup holders in the front centre console This chapter contains information on the following subjects: Cup holders in the front centre console .
  • Page 92 Useful equipment Cup holders in the rear centre console Fig. 62 In the rear centre con- sole: Fold out the cup holders. ä First read and observe the introductory information and safety warn- ings on page 89. Opening and closing the rear cup holders ⇒ ...
  • Page 93: Ashtrays And Cigarette Lighter

    Useful equipment Ashtrays and cigarette lighter Emptying an ashtray ● Remove the ashtray from the cup holder from above. ● After emptying the ashtray, insert it into the cup holder from above. ä Introduction Ð Cigarette lighter This chapter contains information on the following subjects: Ashtrays .
  • Page 94: Power Socket

    Useful equipment Power socket For the sake of the environment Do not keep the engine running while the vehicle is stationary. ä Introduction Note The vehicle battery will discharge when the ignition is switched on while the en- This chapter contains information on the following subjects: gine is stopped and electrical accessories are being used.
  • Page 95 Useful equipment 12-Volt power socket The 12-Volt power socket will only work when ignition is switched on. The vehicle battery will discharge when the ignition is switched on while the en- gine is stopped and electrical devices are being used. Therefore, use electrical consumers on the power socket only with the engine running.
  • Page 96: When Driving

    Starting, shifting gears, parking When driving Starting, shifting gears, parking Starting and stopping the engine WARNING Switching off the engine while driving makes it harder to stop the vehicle. ä Introduction This may result in the loss of vehicle control, causing accidents and serious in- juries.
  • Page 97: Starting, Shifting Gears, Parking

    Starting, shifting gears, parking Ignition lock Fig. 66 Positions of the vehicle key in the ignition lock. ä First read and observe the introductory information and safety warn- Non-authorised ignition key ings on page 94. If a non-authorised vehicle key was inserted into the ignition lock, it can be re- moved as follows: ⇒ ...
  • Page 98 Starting, shifting gears, parking Note In vehicles with automatic gearbox, the vehicle key can be removed from the ig- nition key only if the selector lever is in position P. If necessary, press and release the lock button in the selector lever. Ð...
  • Page 99 Starting, shifting gears, parking Note Note When starting the engine, major electrical loads are switched off temporarily. In vehicles with automatic gearbox, the vehicle key can be removed from the igni- tion lock only when the selector lever is in position P. Note Note The engine running noise may be louder for a short time after starting the cold...
  • Page 100: Shifting Gears

    Flash- Possible cause Remedy WARNING Rapid acceleration can cause loss of traction and spinning, especially on slip- The lock button in the selector Engage the selector lever lock  pery roads. This can lead to loss of vehicle control, accidents and serious inju- lever is not engaged.
  • Page 101 Starting, shifting gears, parking WARNING Ignoring illuminated warning lights and text messages may result in breaking down in traffic, accidents and serious injury. ● Never ignore illuminated warning lights and text messages. ● Stop the vehicle as soon as it is possible and safe to do so. ●...
  • Page 102 Starting, shifting gears, parking ● Move the gearshift lever to the neutral position and press it down. NOTICE ● Move the gearshift lever to the left and then forward to the reverse gear posi- Pedals must be operable at any time without hindrance. For example, if one of tion the brake circuits fails, it takes a longer brake pedal travel to bring the vehicle to a stop.
  • Page 103 Starting, shifting gears, parking Automatic gearbox: Engaging a gear ä First read and observe the introductory information and safety warn- ings on page 98. The selector lever is equipped with a selector lever lock. When changing a selector lever position from position P to a driving stage, depress the brake pedal and ⇒ ...
  • Page 104 Starting, shifting gears, parking In rare cases, it may occur in vehicles with automatic gearbox that the selector Shifting gears with the Tiptronic lever lock fails to engage. The drive is then disabled to prevent accidental starting. The green indicator light  will flash. Proceed as follows to engage the selector lever lock: Move the selector lever to position P or N and then select a driving stage.
  • Page 105 The automatic gearbox may, for example, become too hot due to frequent start- ing, long “creeping” or stop-and-go traffic. Stop and allow the gearbox to cool ⇒  Rapid acceleration can cause loss of traction and spinning, especially on slip- in Driving with automatic gearbox on page 103.
  • Page 106: Braking, Stopping And Parking

    Starting, shifting gears, parking Braking, stopping and parking WARNING (Continued) ● Never park the vehicle such that parts of the exhaust system come in con- ä Introduction tact with highly flammable materials under the vehicle, such as underbrush, leaves, dry grass, spilled fuel, etc. This chapter contains information on the following subjects: ●...
  • Page 107 Starting, shifting gears, parking Warning and indicator lights ä First read and observe the introductory information and safety warnings on page 104. Possible cause ⇒  Illuminates Remedy  Releasing the handbrake ⇒  p age 106. Handbrake applied Do not drive the vehicle! ...
  • Page 108 Starting, shifting gears, parking Handbrake NOTICE If the handbrake is not applied and the brake pedal is released in selector lev- er position P while the vehicle is stationary, the vehicle may move a few in- ches forward or backward. Note When driving faster than approximately 4 mph (6 km/h) with the handbrake ap- plied, an alarm will sound.
  • Page 109 Starting, shifting gears, parking ● On a downhill slope, turn the front wheels such that they point toward the The wear of the brake pads depends very much on the operating conditions and curbs. driving style. With frequent city and short-range driving as well as using a sporty style of driving, the thickness of the brake pads needs to be checked more often ●...
  • Page 110 Starting, shifting gears, parking WARNING WARNING New brake pads initially do not provide optimal braking performance. Driving without a brake booster can significantly lengthen the braking dis- tance, causing accidents and serious injuries. ● New brake pads have not yet attained full braking efficiency for up to 200 miles (320 km) and must first be “run in”.
  • Page 111 Starting, shifting gears, parking ABS brake assist system WARNING (Continued) ● Although brake assist systems are very effective in difficult situations and ä First read and observe the introductory information and safety warn- help control the vehicle, always remember that the driving stability depends ings on page 104.
  • Page 112 Starting, shifting gears, parking Brake fluid ments of the VW standard 501 14. Compare this information with the information on the packaging of the brake fluid and make sure to always use the correct brake fluid for the vehicle. Suitable brake fluids are available from a Škoda partner. Brake fluid level The fluid level must always be between the MIN and MAX markings of the brake fluid reservoir and above the MIN marking ⇒ ...
  • Page 113 Starting, shifting gears, parking WARNING Brake fluid is toxic. ● To reduce the risk of poisoning, never use beverage bottles or other con- tainers for storing brake fluid. These containers may entice people to drink from them, even if the container is labelled. ●...
  • Page 114: Driving In An Environmentally Conscious Manner

    Starting, shifting gears, parking Driving in an environmentally conscious manner Vehicles with gear indicator support a fuel-efficient driving style by displaying the best time for changing the gear. ä Introduction Let the vehicle roll When you take your foot off the accelerator pedal, the fuel supply to the engine is This chapter contains information on the following subjects: interrupted and fuel consumption is reduced.
  • Page 115 Starting, shifting gears, parking Other factors that increase fuel consumption (examples): fig. 74 shows the different fuel consumptions for the same distance both at +68 °F (+20 °C) and +14 °F (-10 °C). ● Faulty engine control. ● Driving in mountainous areas. Therefore, avoid unnecessary short distances and combine.
  • Page 116 Starting, shifting gears, parking Therefore, remove unnecessary attachments, especially if you plan to run at high speeds. Ð...
  • Page 117: Steering

    Starting, shifting gears, parking Steering Additional information and warnings: ● Starting and stopping the engine ⇒  p age 94 ● Vehicle battery ⇒  p age 144 ä Introduction ● Tow-starting and towing the vehicle ⇒  p age 212 This chapter contains information on the following subjects: WARNING Warning and indicator lights .
  • Page 118 Starting, shifting gears, parking Information about the steering ä First read and observe the introductory information and safety warn- ings on page 115. To make a theft of the vehicle more difficult, the steering should always be locked before you exit the vehicle. Mechanical steering lock Activating the steering lock feature Deactivating the steering lock feature...
  • Page 119: Air Conditioning

    This is quite normal and not an indication of a leak! ● Maximum heat output and rapid thawing of the windows can only be ach- ieved when the engine has reached its operating temperature. Do not depart Note before you have good visibility conditions.
  • Page 120 Air conditioning Control elements Fig. 75 In the centre console: Control elements of the manual air conditioning system. Fig. 76 In the centre console: Control elements of the Clima- tronic. ä First read and observe the introductory information and safety warn- Illuminating LEDs in the control elements indicate that the function is active.
  • Page 121 The rear window heater only works when the engine is running and interior. switches itself off after 10 minutes at the latest. ● Stale air can lead to rapid fatigue and decreased concentration of the driv- er and passengers, which can cause accidents and serious injuries. Ð...
  • Page 122 Air conditioning Operating information for the air conditioning system Heating Maximum heat output and fastest thawing of the windows can only be achieved ä First read and observe the introductory information and safety warn- when the engine has reached its operating temperature. ings on page 117.
  • Page 123 Air conditioning ● To open and close the air outlets, turn the thumbwheel in the desired di- Note rection. The air exiting from the air outlets and flowing through the entire interior escapes ● Use the handle in the ventilation grille to adjust the outflow direction.
  • Page 124 Switching off: Press the appropriate button repeatedly until no symbol illuminates on the display. WARNING Stale air can lead to rapid fatigue and decreased concentration of the driver, causing collisions, accidents and serious injuries. ● Never use recirculated air mode for an extended period, as no fresh air en- ters the interior.
  • Page 125: At The Petrol Station

    At the petrol station At the petrol station Refuelling WARNING (Continued) ● When refuelling, never get into the vehicle. If you have to get into your ve- ä Introduction hicle in exceptional cases, close the door and touch a metal surface before you touch the pump nozzle again.
  • Page 126 At the petrol station NOTICE (Continued) NOTICE applies even if only a small amount of the wrong fuel has been filled in. Get ● Remove spilled fuel immediately from the vehicle paint to avoid damage to professional assistance! The ingredients of these fuels can significantly dam- the wheel house, tyres and paint.
  • Page 127 At the petrol station WARNING Driving with a low fuel level may result in breaking down in traffic, accidents and serious injuries. ● A low fuel level may lead to irregular fuel supply to the engine, especially when driving uphill or downhill. ●...
  • Page 128 At the petrol station Capacities WARNING ä Do not continue refuelling when the pump nozzle shuts off the first time. You First read and observe the introductory information and safety warn- could overfill the fuel tank. Fuel may spurt out and spill. This can cause fires, ings on page 123.
  • Page 129: Fuel

    At the petrol station Fuel Possible fuel types Alternative names More information Regular petrol, regular unleaded ä Introduction Super petrol, premium, unlea- ⇒  p age 127 ded 95 This chapter contains information on the following subjects: Super Plus petrol, unleaded 98 ⇒ ...
  • Page 130 At the petrol station It is often the case in countries with different climatic conditions that diesel fuels NOTICE available have a different temperature characteristic. Your Škoda partner and pet- rol stations in the specific country provide information on their common diesel ●...
  • Page 131 At the petrol station Information on fuel consumption ä First read and observe the introductory information and safety warn- Determination of fuel consumption ings on page 127. The fuel consumption and emission levels were determined according to Directive 715/2007/EC or 80/1268/EEC in the version currently in force and apply to the The indicated fuel consumption and emission levels are not related to a specific specified vehicle's unloaded weight.
  • Page 132 At the petrol station Diesel engine Fuel consumption according to Directive 715/2007/EC or 80/1268/EEC Engine power Transmission Intra-urban Extra-urban Combined 77 kW CLNA — l/100 km — l/100 km 4,9 l/100 km Ð Data were not available at the time of printing. emission ä...
  • Page 133: Preparing To Work In The Engine Compartment

    In the engine compartment Maintenance, cleaning, servicing In the engine compartment Preparing to work in the engine compartment WARNING Unintended vehicle movement during maintenance work can cause serious in- ä Introduction juries. ● Never work under the vehicle when it is not secured against rolling away. This chapter contains information on the following subjects: When working under the vehicle while the wheels touch the ground, the vehi- cle must be on a plane, the wheels locked and the vehicle key be removed...
  • Page 134 In the engine compartment WARNING (Continued) WARNING (Continued) ● When the engine has cooled down, please note the following before open- ● If work needs to be done at start-up or when the engine is running, a life- ing the bonnet. threatening risk is posed by rotating parts (e.g.
  • Page 135 In the engine compartment For the sake of the environment Fluids leaking from the vehicle pollute the environment. Therefore, regularly check the ground under the vehicle. If you can see stains of oil or other fluids on the floor, have the vehicle checked by a specialist garage. Properly dispose of spil- led or leaking fluids.
  • Page 136 In the engine compartment Opening and closing the bonnet Fig. 82 Left picture: Release lever in the footwell on the driv- er's side. Right picture: Release lever on the bonnet. Fig. 83 Left picture: Folded bonnet support. Right picture: At- tachment point of bonnet support.
  • Page 137 In the engine compartment Closing the bonnet ● Slightly lift the bonnet and unhook the bonnet support from the opening ⇒  ● Press the bonnet support firmly into the holder ● Let the bonnet drop into the lock of the lock carrier from a height of about 12 inches (30 cm) –...
  • Page 138: Engine Oil

    In the engine compartment Engine oil Warning and indicator lights ä First read and observe the introductory information and safety warn- ä Introduction ings on page 136. This chapter contains information on the following subjects: Flas Possible cause Remedy Warning and indicator lights .
  • Page 139 In the engine compartment Engine oils are continuously being further developed. Škoda partners are always notified on any changes. Škoda therefore recommends to have the engine oil changed by a Škoda partner. Engines Engine oil specifications 77 kW petrol engine VW 501 01, VW 502 00 77 kW diesel engine VW 507 00...
  • Page 140 In the engine compartment Engine oil level ranges NOTICE fig. 84 Necessary action depending on engine oil level: ● Do not start the engine if the engine oil level is above area . Get profes- Do not add oil ⇒  . Area sional assistance.
  • Page 141 In the engine compartment For more information on the service intervals, please see the service schedule. Additives in the engine oil make new engine oil appear dark after a short engine- running time. This is normal and there is no reason to change the engine oil more frequently.
  • Page 142: Engine Coolant

    In the engine compartment Engine coolant WARNING Engine coolant is toxic! ä Introduction ● Store engine coolant only in sealed containers and in a safe place. ● Never use empty food cans, bottles or other containers for storage of en- This chapter contains information on the following subjects: gine coolant, since people could drink the contained engine coolant.
  • Page 143 In the engine compartment WARNING WARNING Ignoring illuminated warning lights and text messages may result in breaking Lack of antifreeze protection in the engine cooling system can lead to engine down in traffic, accidents and serious injury. failure and cause serious injuries. ●...
  • Page 144 In the engine compartment Checking the engine coolant level and replenishing engine Preparations coolant ● Park the vehicle on a level and solid surface. ● Allow the engine to cool ⇒  ⇒  p age 131. ● Open the bonnet  ●...
  • Page 145 In the engine compartment WARNING (Continued) ● When the engine has cooled down, please note the following before open- ing the bonnet. – Firmly pull the handbrake and move the selector lever to position P or the gearshift lever into neutral. –...
  • Page 146: Vehicle Battery

    In the engine compartment Vehicle battery WARNING Work on the vehicle battery and the electrical system can cause severe chemi- ä Introduction cal burns, fire or electric shock. Before performing any work, always read and observe the following warnings and precautions: This chapter contains information on the following subjects: ●...
  • Page 147 In the engine compartment Warning light Checking the battery electrolyte level ● Provide for adequate lighting to see the colours clearly. Never use open flames ä First read and observe the introductory information and safety warn- or smouldering objects as lighting. ings on page 144.
  • Page 148 In the engine compartment Replacing the vehicle battery Despite the vehicle power management, the vehicle battery may be discharged. For example, when the ignition is switched on a long time with the engine turned The vehicle battery is designed according to the installation position and equip- off or the side or parking lights are turned on during longer parking.
  • Page 149 In the engine compartment For the sake of the environment Battery acid may pollute the environment. Collect and properly dispose of leaking fluids. Ð Vehicle overview Before driving When driving Maintenance, cleaning, servic- Do-it-yourself...
  • Page 150: Care And Maintenance Of The Vehicle

    Care and maintenance of the vehicle Care and maintenance of the vehicle Maintaining and cleaning the vehicle exterior WARNING Care products can be toxic and dangerous. Improper care products and im- ä Introduction proper application of care products can cause accidents, serious injuries, burns and poisoning.
  • Page 151: Washing The Vehicle

    Care and maintenance of the vehicle For the sake of the environment WARNING Do not dispose of residues of care products in domestic waste. Observe the pack- Sharp edges on the vehicle can cause injury. age inserts. Ð ● Protect your hands and arms from sharp-edged parts when you are clean- ing, for example, the underfloor or the inside of the wheel housings.
  • Page 152: Washing With A High-Pressure Cleaner

    Care and maintenance of the vehicle Washing with a high-pressure cleaner NOTICE (Continued) ● To ensure that the park distance control works properly, the sensors in the ä First read and observe the introductory information and safety warn- bumper must be kept clean and free of ice. When cleaning with high-pressure ings on page 148.
  • Page 153: Cleaning And Replacing The Wiper Blades

    Care and maintenance of the vehicle Removing ice Cleaning and replacing the wiper blades Ice is best removed with a de-icing spray. When using an ice scraper, do not move it back and forth, but move it in one direction only. Dirt may scratch the window when you move the scraper backward.
  • Page 154: Service Position Of The Windscreen Wipers

    Care and maintenance of the vehicle Replacing windscreen wiper blades Service position of the windscreen wipers ● Lift and fold away the wiper arms. ⇒  f ig. 88 ● Press the release and simultaneously pull the wiper blade in the direction of the arrow ●...
  • Page 155: Preserving And Polishing The Vehicle Paintwork

    Care and maintenance of the vehicle ● Clean the surfaces with a clean, lint-free cloth dampened with water. NOTICE ● For heavy dirt, use a special solvent-free cleaning product. ● To avoid damage to the bonnet and the wiper arms, fold the wiper arms ●...
  • Page 156: Maintaining Rubber Seals

    Care and maintenance of the vehicle Maintaining rubber seals CAUTION ä Underbody protection and anti-corrosion agents can be ignited by the hot ex- First read and observe the introductory information and safety warn- haust system or other hot engine parts. ings on page 148.
  • Page 157 Care and maintenance of the vehicle NOTICE Water introduced in the plenum chamber, e.g., with a high-pressure cleaner, can cause considerable damage to the vehicle. For the sake of the environment Wash the engine compartment only at specially designated wash areas to prevent the dirty water contaminated with oil, grease and fuel from entering the sewage system.
  • Page 158: Maintaining And Cleaning The Interior

    Care and maintenance of the vehicle Maintaining and cleaning the interior WARNING (Continued) ● Observe the package inserts. ä Introduction ● Never use empty food cans, bottles or other containers for storage of care products, as people may not always recognise the contained care products. This chapter contains information on the following subjects: ●...
  • Page 159 Care and maintenance of the vehicle Treating seat covers ä First read and observe the introductory information and safety warnings on page 156. Checklist For treating and maintaining the seat covers, observe the following ⇒  : ¥ Before getting into the vehicle, close all Velcro fasteners that may get in contact with upholstery cloths or cloth trims. Open Velcro fasteners can cause damage to upholstery cloths and cloth trims.
  • Page 160 Care and maintenance of the vehicle Cleaning storage compartments, cup holders and ashtrays Type of stain Cleaning Water-based stains, – Apply a mild detergent solution with a sponge. such as coffee or fruit – Dab with an absorbent dry cloth. juice.
  • Page 161 Care and maintenance of the vehicle Maintaining and cleaning the plastic parts and instrument panel WARNING ä Regularly check the condition of all seat belts. If the webbing or other parts of First read and observe the introductory information and safety warn- the seat belt are damaged, immediately have the seat belt removed and re- ings on page 156.
  • Page 162: Wheels And Tyres

    Care and maintenance of the vehicle Wheels and tyres WARNING (Continued) ● On all four wheels, use only radial tyres of the same type, size (rolling cir- ä Introduction cumference) and the same tread pattern. ● New tyres should be run in, as new wheels initially have reduced grip and This chapter contains information on the following subjects: braking efficiency.
  • Page 163: Handling Wheels And Tyres

    Care and maintenance of the vehicle Handling wheels and tyres Unidirectional tyres Unidirectional tyres are designed to roll in one direction only. Unidirectional tyres have arrow markings on the wall of the tyre ⇒  p age 168. The so specified running direction must absolutely be complied with.
  • Page 164: Rims

    Care and maintenance of the vehicle WARNING WARNING Aggressive fluids and substances can cause visible and invisible damage to Using improper or damaged rims can impair safe driving and cause accidents the tyres, which can lead to bursting of the tyres. and serious injuries.
  • Page 165: Tyre Inflation Pressure

    Care and maintenance of the vehicle Note WARNING For tyres that are approved by Škoda, it is ensured that the actual dimensions Wheels must have the necessary design-related clearance. Absence of clear- match the vehicle. For other types of tyres, the vendor of the tyres has to provide ance may lead to frictional contact of tyres with parts of the chassis, the body a certificate of the tyre manufacturer, stating that the tyre type is also suitable for and brake lines, which may result in failure of the braking system and tread...
  • Page 166: Tread Depth And Wear Indicator

    Care and maintenance of the vehicle The specified tyre inflation pressure is for cold tyres. The tyre inflation pressure of NOTICE warm tyres is higher than of cold tyres. ● When attaching the tyre inflation pressure gauge, make sure that it is not Therefore, never let the air escape a warm tyre to adjust the tyre inflation pres- jammed with the valve stem.
  • Page 167: Tyre Damage

    Markings on Driving style – Fast cornering, rapid acceleration and hard braking increase the the tyre walls mark the location of the wear indicators, e.g., the letters “TWI” or wear of the tyres.
  • Page 168: Spare Wheel Or Emergency Spare Wheel

    ● Put the replaced wheel with the rim facing down into the spare wheel well ● Never drive faster than 50 mph (80 km/h). Avoid rapid acceleration, hard such that the centre hole of the wheel is aligned with the screw.
  • Page 169 Care and maintenance of the vehicle Note WARNING (Continued) Where possible, securely fasten the spare wheel, emergency spare wheel or the ● Never drive with more than one emergency spare wheel. replaced wheel in the boot. Ð ● After fitting the emergency spare wheel, the tyre inflation pressure should be checked as soon as possible ⇒ ...
  • Page 170: Tyre Inscription

    Care and maintenance of the vehicle Tyre inscription Fig. 96 International tyre inscription. ä First read and observe the introductory information and safety warnings on page 160. Tyre inscription (example) Meaning Brand name, logo Manufacturer Product name Individual tyre name of the manufacturer. £...
  • Page 171 Care and maintenance of the vehicle Tyre inscription (example) Meaning P 255 / 55 R 18 Tyre size designation: Marking for passenger cars. Tyre width from side wall to side wall in mm. Height/width ratio in %. Belt-type code letter for radial. Rim diameter in inches.
  • Page 172: Winter Tyres

    Care and maintenance of the vehicle Unidirectional tyres In winter road conditions, winter tyres improve the handling characteristics of the vehicle considerably. Summer tyres do not offer the same grip on ice and snow Unidirectional tyres are designed to rotate in one direction only. Unidirectional because of their construction (width, rubber blend, tread pattern).
  • Page 173: Snow Chains

    Care and maintenance of the vehicle Note WARNING Ask your Škoda partner for the permissible size of winter tyres. Ð The use of unsuitable or improper snow chains or fitting improper fitting of snow chains can cause accidents and serious injuries. Snow chains ●...
  • Page 174: Accessories, Replacement Of Parts, Repairs And Modifications

    Care and maintenance of the vehicle Accessories, replacement of parts, repairs and WARNING Modifications Unsuitable spare parts and accessories as well as improperly performed work, changes and repairs can cause vehicle damage, accidents and serious injuries. ä Introduction ● Škoda strongly recommends using only approved Škoda accessories and genuine Škoda parts.
  • Page 175 Care and maintenance of the vehicle Run in new tyres and brake pads WARNING ● New tyres and tyre replacement ⇒  p age 160. Improper repairs and modifications to the vehicle may affect the effectiveness ● Information on the brakes ⇒  p age 107. of airbags and cause malfunctions, accidents and fatal injuries.
  • Page 176 Care and maintenance of the vehicle The installation documentation of the conversions is to be kept by the vehicle NOTICE owner and to be handed over to the dismantling facility when scrapping the vehi- cle. This is to ensure the environmentally sound recovery, even for converted ve- ●...
  • Page 177 Care and maintenance of the vehicle Observe the legal rules and follow the instructions in operating manuals of the WARNING two-way radio equipment. Improperly performed repairs and modifications can cause damage and mal- function of the vehicle and reduce the effectiveness of the airbag system. This WARNING can lead to accidents and serious or fatal injuries.
  • Page 178 Care and maintenance of the vehicle ● Braking power. Using a mobile phone in the vehicle without connection to the ● Seat belt query. external aerial Under no circumstances are conversations in the vehicle recorded by the built-in ä First read and observe the introductory information and safety warn- control units.
  • Page 179 Care and maintenance of the vehicle WARNING An unsecured or improperly secured mobile phone may be thrown through the interior of the vehicle and cause injuries in a sudden driving or braking ma- noeuvre or accident. ● Always securely fasten or stow the mobile phone properly and outside the airbag deployment areas while driving.
  • Page 180 Care and maintenance of the vehicle WARNING (Continued) ⇒  f ig. 97 ⇒  f ig. ● Lift the vehicle only at the points shown in figures 98. If the vehicle is not lifted at the points shown, the vehicle may fall off the lifting platform, for example, when the engine and gearbox are removed.
  • Page 181: Consumer Information

    Care and maintenance of the vehicle Consumer information ● Under no circumstances remove any safety certificates, stickers and labels or make them either unusable or unreadable. ● If vehicle parts provided with safety certificates, stickers and labels are re- ä Introduction placed, identical safety certificates, stickers and labels must be affixed properly by a specialist garage in the same place on the new vehicle parts.
  • Page 182 For more information on the return and recycling of old vehicles, ask your Škoda Please contact a Škoda partner or specialist garage or order appropriate literature partner. from https://erwin.skoda-auto.cz/. Scrapping If the vehicle or individual parts of the airbag system are scrapped, it is essential to observe the relevant safety precautions.
  • Page 183: Engine Control And Emission Control System

    Care and maintenance of the vehicle ● Engine oil ⇒  p age 136 Engine control and emission control system ● Vehicle battery ⇒  p age 144 ● Information stored in the control units ⇒  p age 172 ä Introduction ● Tow-starting and towing the vehicle ⇒  p age 212 This chapter contains information on the following subjects: WARNING Indicator lights...
  • Page 184 Care and maintenance of the vehicle Note As long as the indicator lights  or  illuminate, engine problems, increased fuel consumption and reduce engine power can be expected. Ð Catalytic converter ä First read and observe the introductory information and safety warn- ings on page 181.
  • Page 185 Practical information Do-it-yourself Practical information Questions and answers If you suspect a malfunction or damage during handling of the vehicle, read and observe the following notes before visiting a Škoda partner or specialist garage. In addition, the index entries “Particulars” or “Checklist” may be helpful. Particulars Possible causes among others Possible remedy...
  • Page 186: Practical Information

    Practical information Particulars Possible causes among others Possible remedy – Avoid short distances. – Short-haul traffic – Drive with foresight. – “Nervous accelerator pedal”. – Use the accelerator pedal smoothly. Electrical loads turned on. Switch off unnecessary loads. Have disturbance resolved ⇒  p age 181. Engine control disturbed.
  • Page 187: In An Emergency

    Practical information ä In an emergency First read and observe the introductory information and safety warn- ings on page 185. ä Introduction Observe the legal regulations for securing a broken-down vehicle. In many coun- tries, for example, switching on the hazard warning light system and wearing a This chapter contains information on the following subjects: safety vest are required.
  • Page 188 Practical information ä First read and observe the introductory information and safety warn- WARNING ings on page 185. Failure to observe the checklist, which is for your own safety, can lead to acci- dents and serious injuries. First-aid kit ⇒  f ig. 100 ●...
  • Page 189: Emergency Closing Or Opening

    Practical information Emergency closing or opening NOTICE When doing an emergency closing or emergency opening, remove the parts ä Introduction carefully and reinstall them correctly to avoid vehicle damage. Ð This chapter contains information on the following subjects: Manually unlocking or locking the driver's door Manually unlocking or locking the driver's door .
  • Page 190 Practical information Manually unlocking the front passenger door and rear doors Emergency unlocking the selector lever lock Fig. 102 Emergency locking the vehicle with the vehicle key (the emergency lock is covered by a rubber seal). ä First read and observe the introductory information and safety warn- Fig.
  • Page 191 Practical information The emergency unlock lever is located under the cover of the shift gate, on the right when looking in the driving direction. Preparations ● Firmly pull the handbrake. ● Switch off the ignition. Removing the cover of the shift gate ⇒ ...
  • Page 192: Tool Kit

    Practical information Tool kit Placement ä Introduction This chapter contains information on the following subjects: Placement ............... . . Components .
  • Page 193 Practical information Components Fig. 106 Tool kit components. ä First read and observe the introductory information and safety warn- ings on page 190. The tool kit scope depends on the vehicle equipment level. The maximum scope is described in the following. Tool kit components⇒ ...
  • Page 194: Wheel Trims

    Practical information Wheel trims Wheel trim ä Introduction This chapter contains information on the following subjects: Wheel trim ............... . Wheel bolt caps .
  • Page 195 Practical information Wheel bolt caps Fig. 108 Pulling off the caps from the wheel bolts. ä First read and observe the introductory information and safety warn- ings on page 192. ● Remove the wire clamp from the tool kit ⇒  p age 190. ⇒ ...
  • Page 196: Wheel Change

    Practical information Wheel change WARNING (Continued) ● Make sure that the ground is flat and firm. If necessary, set up the jack on ä Introduction a stable base with a large surface. ● Only change a wheel yourself if you are familiar with the required actions. This chapter contains information on the following subjects: Otherwise, seek professional assistance.
  • Page 197 Practical information ä First read and observe the introductory information and safety warn- WARNING ings on page 194. Failure to observe the checklist, which is for your own safety, can lead to acci- dents and serious injuries. To slacken the wheel bolts, use only the wheel wrench supplied with the vehicle. ●...
  • Page 198 Practical information WARNING WARNING (Continued) ● Only slacken the wheel bolts by about one turn until you have jacked up Wheel bolts that are tightened incorrectly can work loose during driving and the vehicle. cause accidents, serious injuries, and loss of control over the vehicle. ●...
  • Page 199 Practical information Lifting the vehicle with the jack Fig. 111 Jacking points for po- sitioning the jack. Fig. 112 Jack applied at rear left side of the vehicle. ä First read and observe the introductory information and safety warn- Checklist ings on page 194.
  • Page 200 Practical information Checklist (Continued) Wheel change ⇒  f ig. 111 Look under the vehicle for the jacking point nearest to the wheel you will be changing. Crank up the jack to a point where you can still push it under the jacking point on the vehicle.
  • Page 201 Practical information ● Use the wheel wrench to tighten all the wheel bolts firmly in clockwise direc- tion ⇒  . Do not work around the vehicle, but always move to a wheel bolt on the opposite side. ● If applicable, fit the caps, the hub cover, or the wheel trim ⇒  p age 192. WARNING Incorrect tightening torque, or improper handling of the wheel bolts, can cause loss of control over the vehicle, accidents and serious injuries.
  • Page 202: Fuses

    Practical information Fuses NOTICE ● To avoid damage to the vehicle's electrical system, always switch off the ä Introduction ignition, the lights, and all power consuming devices and remove the ignition key from the ignition lock before replacing a fuse. This chapter contains information on the following subjects: ●...
  • Page 203 Practical information Fuses in the vehicle Colour Amperage blue yellow white or clear green orange Opening the distribution board on the dashboard ⇒  f ig. 114 ● Insert a flat object, e.g. a screwdriver, into the recesses (arrows) and carefully lever off the cover. Fig.
  • Page 204 Practical information Replacing blown fuses Identifying blown fuses ⇒  f ig. You can identify a blown fuses by the molten metal strip 116. Shine a flashlight at the fuse. This will help you to identify the blown fuse more easily. Replacing fuses ⇒ ...
  • Page 205: Changing A Bulb

    Practical information ● Preparing to work in the engine compartment ⇒  p age 131 Changing a bulb ● Tool kit ⇒  p age 190 ● Fuses ⇒  p age 200 ä Introduction WARNING This chapter contains information on the following subjects: Accidents can be caused if the road is not sufficiently illuminated and the ve- Information on bulb replacement .
  • Page 206 Practical information Information on bulb replacement ä First read and observe the introductory information and safety warnings on page 203. Checklist Always perform the following preparations for bulb replacement in the specified order ⇒  Always park the vehicle at a safe distance from the flow of traffic on flat and firm ground, if possible. Apply the handbrake firmly ⇒ ...
  • Page 207: Replacing Bulbs In The Headlamp

    Practical information Replacing bulbs in the headlamp (Halogen H4) Fig. 118 Rear view of the right H4 headlamp. ä First read and observe the introductory information and safety warnings on page 203. Bulb replacement in the H4 headlamp Perform the actions in the specified order: Low beam and main beam Turn signal light (at the front) Parking lights...
  • Page 208: Replacing Bulb In Front Fog Lamp

    Practical information Note The illustrations show the right headlamp from the rear. The left headlamp is a mirror image of this. Ð Replacing the bulb in the front fog lamp Fig. 119 In the bumper front right: Remove the fog lamp cover. ä...
  • Page 209 Practical information Bulb replacement in the tail light assembly Removing the tail light assembly Follow the checklist and carry out the actions ⇒  p age 204. Open the tailgate ⇒  p age 40. Reach into the opening in the side trim of the luggage compartment ⇒ ...
  • Page 210 Practical information Replacing the rear license plate light bulb Perform the actions in the specified order: Carefully place the rear license plate lamp in the opening in the tailgate. Make sure that you install the rear license plate lamp in the right direc- tion.
  • Page 211: Jump Starting

    Practical information Jump starting WARNING (Continued) ● Jump starting creates a highly explosive oxyhydrogen gas mixture in the ä Introduction vehicle's battery. Keep fire, sparks, open flames and lit cigarettes well clear of the vehicle's battery. Never use a mobile phone while you are attaching or re- moving the jump leads.
  • Page 212 Practical information Performing jump starting ● Connect the other end of the red jump lead to the positive terminal on the battery providing the power ● Connect one end of the black jump lead to the negative terminal of the bat- ⇒ ...
  • Page 213 Practical information WARNING (Continued) ● Make sure that the non-insulated parts of the crocodile clips never touch. Additionally, make sure that the cable connected to the positive terminal of the battery never touches electrically conducting parts of the vehicle. ● Check the view window in the vehicle's battery; use a flashlight if needed. If the window is light yellow or colourless, do not attempt to jump start;...
  • Page 214: Tow-Starting And Towing

    Practical information Tow-starting and towing WARNING When a vehicle is towed, its driving behaviour and braking performance are ä Introduction substantially impaired. To reduce the risk of an accident, or serious injury, ob- serve the following: This chapter contains information on the following subjects: ●...
  • Page 215 Practical information ● Switch on the ignition system and the hazard warning lights. Attach the tow rope or tow bar to the eyes intended for towing only. ● When both vehicles are moving, release the clutch. Towing vehicles with automatic gearbox ●...
  • Page 216 Practical information ä ä First read and observe the introductory information and safety warn- First read and observe the introductory information and safety warn- ings on page 212. ings on page 212. ⇒  f ig. The mount for the screw-type towing eye is located front right in the bumper A fixed towing eye is located on the rear right below the bumper 126.
  • Page 217 Practical information Driver of the towing vehicle ● Use extra care and caution when accelerating. Avoid sudden driving manoeu- vres. ● Brake earlier than usual, but with gentle pedal pressure. ● For information and instructions also consult the manual for the towed vehi- cle.
  • Page 218: Index

    Index Index Anodised surfaces ......153 Boot lid ........40 closing .
  • Page 219 Index Preparing to change a wheel ....194 Seat belts ........55 Capacities Seat covers .
  • Page 220 Index Driving Emergency closing or opening ....187 Specification ....... . 141 Before you start .
  • Page 221 Index Force Limiter Glasses storage box ......87 Indicator gauge Power windows ......43 Indicator gauge .
  • Page 222 Index Turn signal lever ......72 Warning signals ......73 Jack .
  • Page 223 Index Front view ........7 Polishing .
  • Page 224 Index The first miles ......172 Service interval display ......21 Stickers .
  • Page 225 Index Performance ....... . . 31 Transporting ....... . . 81 Unlocking and locking from the inside .
  • Page 226 Index Underbody protection ..... . . 154 Washing the vehicle Speed code letters ......170 Upholstery cloths .
  • Page 227 Index Wiper blades Cleaning ........151 Replacing .
  • Page 228 Index...
  • Page 229 Index Vehicle overview Before driving When driving Maintenance, cleaning, servic- Do-it-yourself...
  • Page 230 Škoda Auto pursues a policy of constant product and model development. We Škoda Auto expressly reserves all rights relating to copyright laws. Subject to trust that you will understand that changes to models in terms of shape, equip- change. ment and engineering, may be introduced at any time. The information about Produced in the Czech Republic.

Table of Contents

Save PDF
