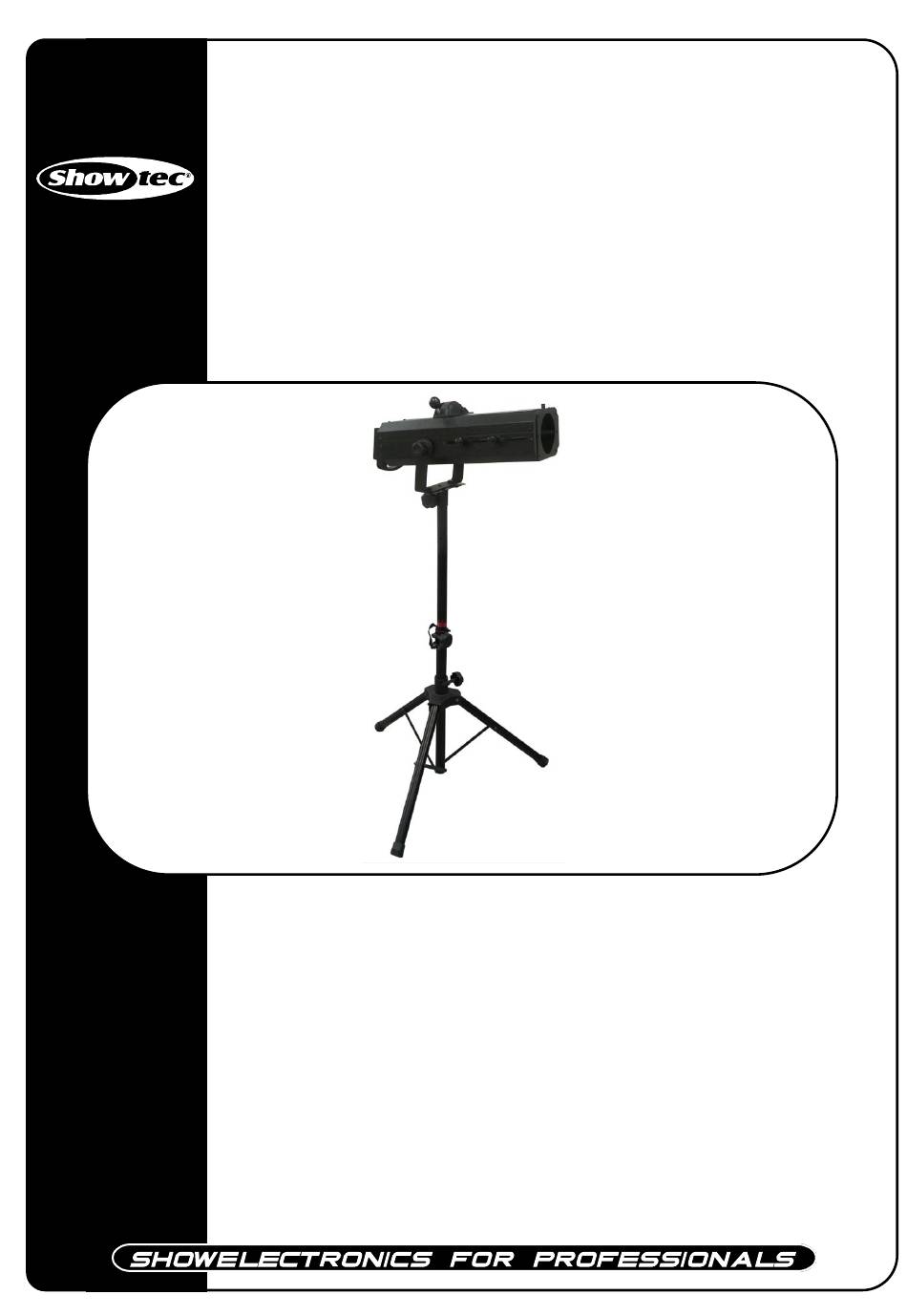

- Page 1 LED Followspot 75W ORDERCODE 30628 Highlite International B.V. Vestastraat 2 6468 EX Kerkrade The Netherlands Phone: +31 45-5667700...
- Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!
-
Page 3: Table Of Contents
Showtec Showtec LED Followspot 75W Product Guide ™ Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Return Procedure ................................5 Claims ....................................5 Description of the device ..............................6 Overview ..................................6 Complete Followspot Setup ............................7 Backside Followspot 75W ............................ -
Page 4: Warning
Warning FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. - Page 5 If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 6: Operating Determinations
Operating Determinations • This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. • The minimum distance between light-output and the illuminated surface must be more than 1 meter. •... -
Page 7: Return Procedure
Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. -
Page 8: Description Of The Device
Description of the device Features The Showtec LED Followspot 75W is a theatrelight from Showtec with RGB-Colormixing. • High light output and never change lamps again! • Stylish design • Convection cooling which eliminates the use of fans and noise •... -
Page 9: Complete Followspot Setup
Complete Followspot Setup Fig. 2 DMX signal connector (IN) DMX signal connector (OUT) Stand Pole, total setup height 1110-1440 mm) 8) Torx bolts for mounting the followspot to the stand Mounting Plate... -
Page 10: Backside Followspot 75W
Backside Followspot 75W Fig. 3 Dimmer Max Dimmer Min Shutter ON / Strobe when you hold this button for 3 seconds 13) Blackout LCD Display Fuse 2A/ 250V IEC Powerconnector Colors: Orange, Cyan, Red, Green, Magenta, Yellow, Blue, White 18) Function selction: Manual Mode or DMX Mode Up button Down button ON/OFF... -
Page 11: Multiple Led Followspots (Dmx Control)
Multiple LED Followspots (DMX Control) 1. Fasten the effect light onto the stand. Leave at least 0,5 meter on all sides for air circulation. Plug the end of the electric mains power cord into a proper electric power supply socket. Use a 3-p XLR cable to connect the LED Followspot and other devices. -
Page 12: Fixture Linking
Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 13: Control Panel
Control Panel Fig. 5 A. LCD Display B. Up Button C. Down Button Control Mode The fixtures are individually addressed on a data-link and connected to the controller. The fixtures respond to the DMX signal from the controller. DMX Addressing The control panel allows you to assign the DMX fixture address, which is the first channel from which the LED Followspot will respond to the controller. -
Page 14: Dmx Channels
DMX Channels 3 Channels Maintenance The Showtec LED Followspot 75 requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply and then wipe the cover with a damp cloth. -
Page 15: Replacing A Fuse
75W, as this may damage the unit and the warranty will become void. 6. Return the device to your Showtec dealer. No Response to DMX Response: Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card malfunction. - Page 16 Problem Probable cause(s) Remedy No power to the fixture • Check that power is switched on One or more and cables are plugged in. fixtures are Primary fuse blown. • Replace fuse. completely dead. Fixtures reset The controller is not connected. •...
-
Page 17: Product Specification
Product Specification • Model: Showtec LED Followspot • High light output and never change lamps again! • Stylish design • Convection cooling which eliminates the use of fans and noise • Peak Power : 363W; Continuous Power 206W • DMX and Manual control •...
