Sena PI - Bluetooth Communication Headset Manual

ABOUT pi

Package Contents

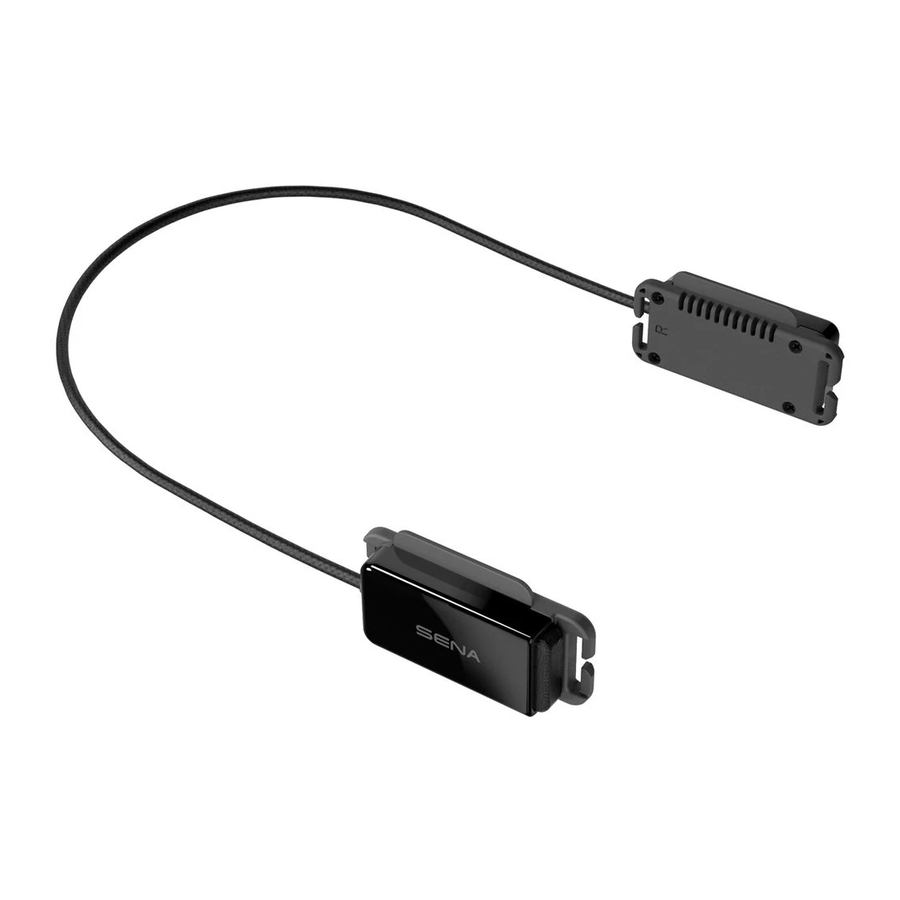

Headset

USB Power & Data Cable (USB-C)

INSTALLING THE HEADSET ON YOUR HELMET

1. Secure the headset to the chinstrap using the strap hooks on both sides.
2. Slide the headset as close to the helmet as possible.





• The (R) and (L) markings are located on the back of the headset.
• Make sure that the cable is facing toward the helmet.

3. Hide the cable under the inner pad in the front of the helmet.
4. Adjust the headset upward or downward so that the speakers are facing your ears.




NOTE:
The SENA logo will appear as above after proper installation.

GETTING STARTED

Downloadable Sena Software

Sena Utility App

By simply pairing your phone with your headset, you can use the Sena Utility App for quicker, easier set up and management.

• Download Sena Utility App on Google Play Store or App Store.

Sena Device Manager

The Sena Device Manager allows you to upgrade firmware and configure settings directly from your PC.

• Download the Sena Device Manager at sena.com.

Firmware Upgrades

The headset supports firmware upgrades.

Please visit sena.com to check for the latest software downloads.

• Download the firmware at sena.com.

Charging

NOTE:

Powering On and Off

Powering On

• Press and hold the (+ ) Button and the (-) Button for 1 second.

Powering Off

• Tap the (+ ) Button and the (-) Button.

Checking the Battery Level

There are two ways to check battery level:

1. Visual Method

2. Audible Method

• While the headset is on, press and hold the (-) Button for 3 seconds.

  " Battery level is high/ medium/low"

NOTE:

Volume Adjustment

Volume is set and maintained independently at different levels for each audio source, even when the headset is rebooted.

Volume Up/Down

• Tap the (+ ) Button or the (-) Button.

PAIRING THE HEADSET WITH OTHER BLUETOOTH DEVICES

When using the headset with other Bluetooth devices for the first time, they will need to be "paired." This enables them to recognize and communicate with one another whenever they are within range.

The pairing operation is required only once for each Bluetooth device. The headset can pair with multiple Bluetooth devices such as a mobile phone, GPS, or MP3 player via Mobile Phone Pairing and Second Mobile Phone Pairing.

Phone Pairing

There are three ways to pair the phone.

Initially Pairing the pi

The headset will automatically enter the phone pairing mode when you initially turn on the headset or in the following situation:

• Rebooting after executing Factory Reset.

1. Press and hold the (+) Button and the (-) Button for 1 second.

   Blinking
   "Phone Pairing"

2. Select pi in the list of Bluetooth devices detected.


NOTE:

Pairing When the pi Is Turned Off

1. While the headset is off, press and hold the (+ ) Button and the (-) Button for 5 seconds.

   Blinking
   "Phone Pairing"

2. Select pi in the list of Bluetooth devices detected.


Pairing When the pi Is Turned On

1. While the headset is on, press and hold the (+ ) Button for 5 seconds.

   Blinking
   "Phone Pairing"

2. Select pi in the list of Bluetooth devices detected.


Second Mobile Phone Pairing - Second Mobile Phone and GPS

MOBILE PHONE USAGE

Making and Answering Calls

Bluetooth Stereo Music

BLUETOOTH INTERCOM

The headset can be paired with another headset for Bluetooth intercom conversation.

Intercom Pairing

There are two ways to pair the headset.

Using the Smart Intercom Pairing (SIP)

SIP allows you to quickly pair with your friends for intercom communication by scanning the Q R code on the Sena Utility App without remembering the button operation.

NOTE:
The Smart Intercom Pairing (SIP) is not compatible with Sena products that use Bluetooth 3.0 or below.

Using the Button

1. Press and hold the (-) Button on the headsets (A and B) for 5 seconds.

   Blinking
   "Intercom Pairing"

2. The two headsets (A and B) will be automatically paired.

   Turns blue


Two-Way Intercom

Start/End Conversation with the Intercom Friend

• Press and hold the (-) Button for 1 second.

HD Intercom

HD Intercom enhances the two-way intercom audio from normal quality to HD quality. If this feature is disabled, the two-way intercom audio will change to normal quality.

UNIVERSAL INTERCOM

Universal Intercom allows you to have Two-way intercom conversations with users of non-Sena Bluetooth headsets. Non-Sena Bluetooth headset can be connected to the Sena headset if they support the Bluetooth Hands-Free Profile (HFP). You can pair the headset with only one non-Sena headset at a time. The intercom distance depends on the performance of the headset to which it's connected. When a non-Sena headset is paired with the headset, if another Bluetooth device is paired via Second Mobile Phone Pairing, it will be disconnected.

Universal Intercom Pairing

1. Press and hold the (+) Button for 10 seconds to enter the configuration menu.

   ^{"Configuration menu"}

2. Double tap the (+) Button

   " Universal intercom pairing"

3. Tap the (-) Button to enter into Universal Intercom Pairing mode.

4. Put the non-Sena Bluetooth headset in Hands-free Pairing Mode. The headset will automatically pair with a non-Sena Bluetooth headset.

Two-Way Universal Intercom

You can initiate the Universal Intercom connection with non-Sena Bluetooth headsets using the same intercom connection method as you would between other Sena headsets.

You may start/end a Two-Way Universal Intercom using the same way as you do in a normal Two-Way Intercom. Please refer to section "Two-Way Intercom".

FUNCTION PRIORITY

The headset operates in the following order of priority:

A lower priority function is always interrupted by a higher priority function.

CONFIGURATION SETTING

Headset Configuration Menu

Accessing the Configuration Menu

• Press and hold the (+ ) Button for 10 seconds.

Navigating Between Menu Options

• Tap the (+ ) Button.

Execute Menu Options

• Tap the (-) Button.

Software Configuration Setting

You can change the settings of the headset through the Sena Device Manager or the Sena Utility App.

Unit Language

You can select the device language. The selected language is maintained even when the headset is rebooted.

Voice Prompt (Default: Enable)

You can disable voice prompts by software configuration settings, but the following voice prompts are always on.

• Headset configuration menu

Advanced Noise Control™ (Always on)

The background noise is reduced during an intercom conversation.

TROUBLESHOOTING

Please visit sena.com for more troubleshooting information.

• Customer Support: sena.com

Fault Reset

When the USB charging & data cable connects a power supply to the headset, the headset will automatically be turned off and a fault reset will occur.

NOTE:
Fault Reset will not restore the headset to the factory default settings.

Factory Reset

To erase all of your settings and start fresh, use the Factory Reset. The headset automatically restores the default settings and turns off.

1. Press and hold the (+) Button for 10 seconds to enter the configuration menu.

   "Configuration menu"

2. Tap the (+ ) Button three times.

   "Factory Reset"

3. Tap the (-) Button to execute Factory Reset

   "Headset reset, good-bye"
