4

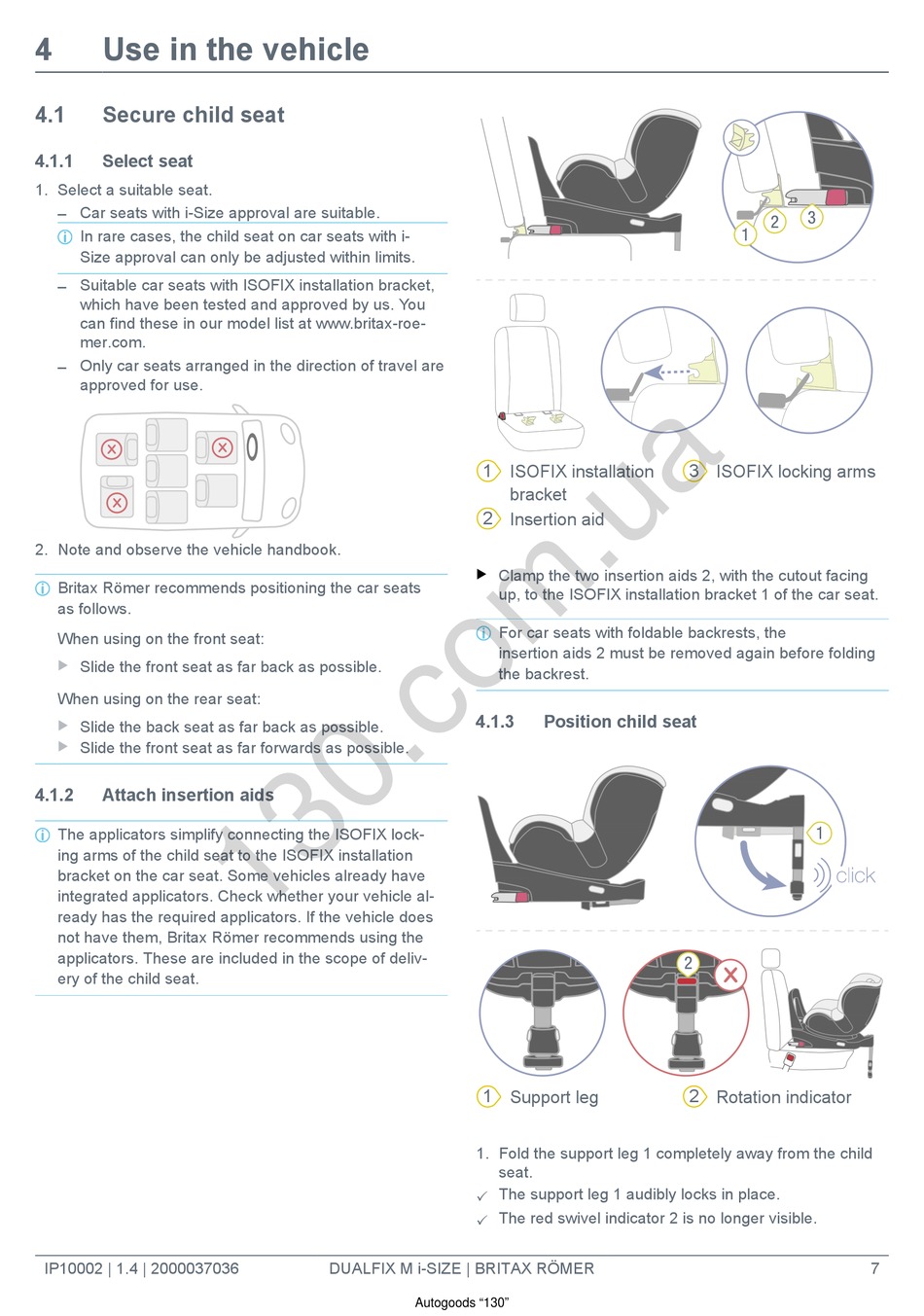

Use in the vehicle

4.1

Secure child seat

4.1.1
Select seat
1. Select a suitable seat.
– Car seats with i-Size approval are suitable.
In rare cases, the child seat on car seats with i-
Size approval can only be adjusted within limits.
– Suitable car seats with ISOFIX installation bracket,
which have been tested and approved by us. You
can find these in our model list at www.britax-roe-
mer.com.
– Only car seats arranged in the direction of travel are
approved for use.
2. Note and observe the vehicle handbook.
Britax Römer recommends positioning the car seats
as follows.
When using on the front seat:
Slide the front seat as far back as possible.
u
When using on the rear seat:
Slide the back seat as far back as possible.
u
Slide the front seat as far forwards as possible.
u
4.1.2
Attach insertion aids
The applicators simplify connecting the ISOFIX lock-
ing arms of the child seat to the ISOFIX installation
bracket on the car seat. Some vehicles already have
integrated applicators. Check whether your vehicle al-
ready has the required applicators. If the vehicle does
not have them, Britax Römer recommends using the
applicators. These are included in the scope of deliv-
ery of the child seat.
IP10002 | 1.4 | 2000037036
1 ISOFIX installation
2 Insertion aid
Clamp the two insertion aids 2, with the cutout facing
u
up, to the ISOFIX installation bracket 1 of the car seat.
For car seats with foldable backrests, the
insertion aids 2 must be removed again before folding
the backrest.
4.1.3
1 Support leg
1. Fold the support leg 1 completely away from the child
seat.
P The support leg 1 audibly locks in place.
P The red swivel indicator 2 is no longer visible.
DUALFIX M i-SIZE | BRITAX RÖMER
Autogoods "130"
bracket
Position child seat
3 ISOFIX locking arms
2 Rotation indicator
7
