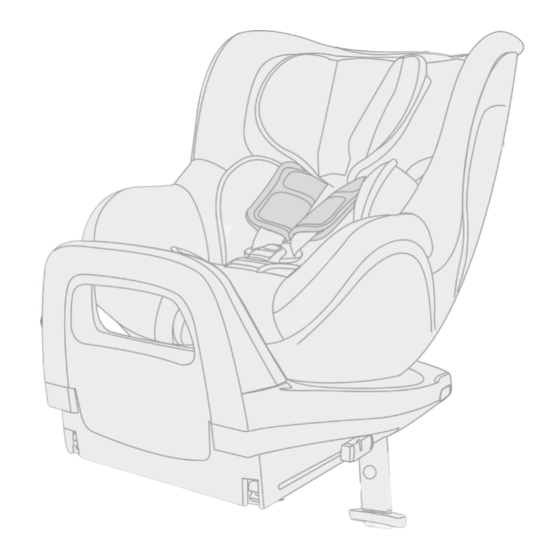

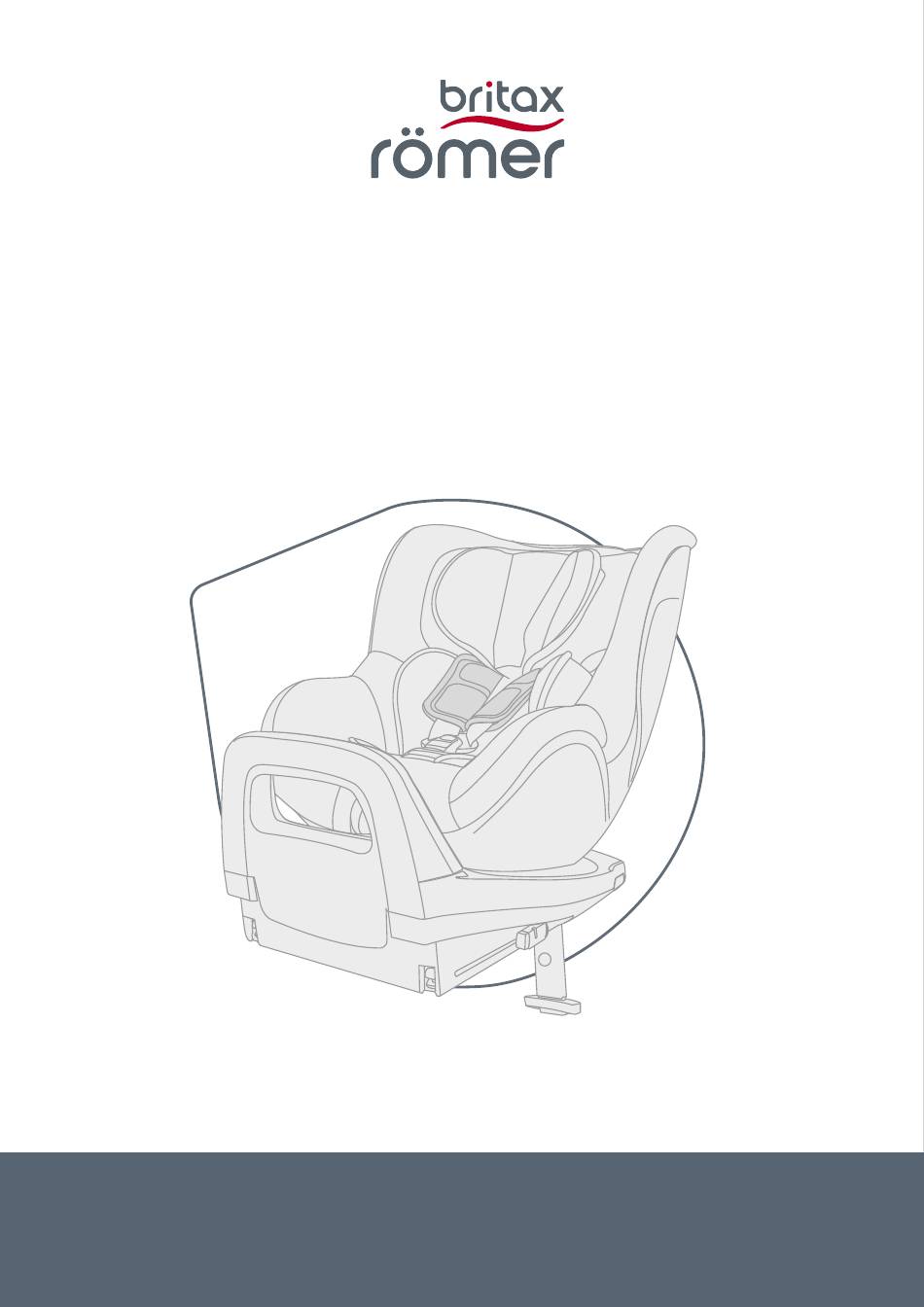

- Page 1 DUALFIX PRO USER GUIDE BRITAX RÖMER Child Safety EMEA www.britax-roemer.com | contact@britax.com...
-
Page 2: Table Of Contents
Unbuckle child........... 12 6 Cleaning and maintenance....13 Cover..............13 Shoulder pads............ 15 Harness buckle..........16 Troubleshooting..........16 7 Storage and disposal......18 Storage..............18 Disposal.............. 18 8 Contact..........19 IP10165 | 1.5 | 2000038331 DUALFIX PRO | BRITAX RÖMER... -
Page 3: Symbol Explanation
Action 1. Demands action from you. 2. Defined sequence of actions. 3..Result of action P There is where you will find the result of a sequence of actions. IP10165 | 1.5 | 2000038331 DUALFIX PRO | BRITAX RÖMER... -
Page 4: Safety
Ensure that the product is not trapped between hard objects (car door, seat rails, etc.). Keep product away from moisture, wet conditions, liq- uids, dust and salt spray. Do not lean heavy objects on the product. IP10165 | 1.5 | 2000038331 DUALFIX PRO | BRITAX RÖMER... -
Page 5: Settings
4. Hang the two plastic hooks 7 in the loops 1 on the cov- er of the headrest 1. 5. Pass the harness buckle 5 and the padded crotch 6 through the recesses in the lower section of the insert for newborn babies. IP10165 | 1.5 | 2000038331 DUALFIX PRO | BRITAX RÖMER... -
Page 6: Adjusting The Seat Angle
Make sure that the seat is fully locked in place by front airbag. pulling at it. Check the colour of the two rotation indica- Note and observe the instructions in the vehicle tors. They must both be black. handbook. IP10165 | 1.5 | 2000038331 DUALFIX PRO | BRITAX RÖMER... -
Page 7: Use In The Vehicle
1. Fold the support leg 1 completely away from the child seat. P The support leg 1 audibly locks in place. P The red rotation indicator 2 is no longer visible. IP10165 | 1.5 | 2000038331 DUALFIX PRO | BRITAX RÖMER... - Page 8 2. Keep holding the adjustment button 3 depressed. P Both ISOFIX indicators 3 are green. 3. Extend the support leg 1 to the floor of the vehicle. 4. Release the adjustment button 3. IP10165 | 1.5 | 2000038331 DUALFIX PRO | BRITAX RÖMER...
-
Page 9: Loosen Child Seat
Support leg Fastening button ISOFIX locking arms 1. Keep holding the adjustment button 1 depressed. 2. Slide the lower section of the support leg 2 into the up- per section. IP10165 | 1.5 | 2000038331 DUALFIX PRO | BRITAX RÖMER... -
Page 10: Buckling In And Unbuckling
WARNING Risk of injury from unsecured seat. Make sure that the seat is fully locked in place by pulling at it. Check the colour of the two rotation indicators. They must both be black. IP10165 | 1.5 | 2000038331 DUALFIX PRO | BRITAX RÖMER... -
Page 11: Buckle Child In
10. The headrest is correctly adjusted. 11. The shoulder pads are in the right position on the child. Shoulder straps Adjustment button 12. The straps are not twisted and not reversed. Harness buckle Adjustment belt IP10165 | 1.5 | 2000038331 DUALFIX PRO | BRITAX RÖMER... -
Page 12: Unbuckle Child
Römer recommends taking regular breaks. Give your child the opportunity to move. Unbuckle child 1. Open the harness buckle by pressing the red button. 2. Take the child our of the child seat. IP10165 | 1.5 | 2000038331 DUALFIX PRO | BRITAX RÖMER... -
Page 13: Cleaning And Maintenance
1. Remove the two hooks 3 from the loops 4 in the cover of the headrest 1. 2. Undo the Velcro 5 on the headrest of the insert for newborn babies 2. 3. Remove the foam sections 6. IP10165 | 1.5 | 2000038331 DUALFIX PRO | BRITAX RÖMER... - Page 14 Damage to important parts Before washing the seat reducer, remove all foam and styrofoam parts from the top and bottom sec- tions. Do not wash these parts in the washing machine. IP10165 | 1.5 | 2000038331 DUALFIX PRO | BRITAX RÖMER...
-
Page 15: Shoulder Pads
5. Pull the ends of the shoulder straps 5 out slightly. 6. Unhook the revealed belt loops of the shoulder pads from the plastic webs 4. 7. Pull the shoulder pads 1 forwards out of the belt slots. IP10165 | 1.5 | 2000038331 DUALFIX PRO | BRITAX RÖMER... -
Page 16: Harness Buckle
The ISOFIX connection is an integral part of the child seat 2. Thoroughly rinse and dry the harness buckle. and fulfils important functions of the child seat. Make sure that the ISOFIX connection works perfectly. IP10165 | 1.5 | 2000038331 DUALFIX PRO | BRITAX RÖMER... - Page 17 Possible problem: – The ISOFIX locking arms of the child seat cannot be connected to the ISOFIX installation brackets of the ve- hicle. Solution: Clean the vehicle's ISOFIX installation bracket. IP10165 | 1.5 | 2000038331 DUALFIX PRO | BRITAX RÖMER...
-
Page 18: Storage And Disposal
Do not dismantle the product. Prevent third parties from using the defective product. Cut through the shoulder straps. Remove the approved label. Please follow the disposal regulations applying in your country. IP10165 | 1.5 | 2000038331 DUALFIX PRO | BRITAX RÖMER... -
Page 19: Contact
Contact If there are any questions, please get in touch: BRITAX RÖMER Child Safety EMEA www.britax-roemer.com contact@britax.com BRITAX RÖMER Kindersicherheit GmbH Theodor-Heuss-Strasse 9 89340 Leipheim Germany IP10165 | 1.5 | 2000038331 DUALFIX PRO | BRITAX RÖMER...
