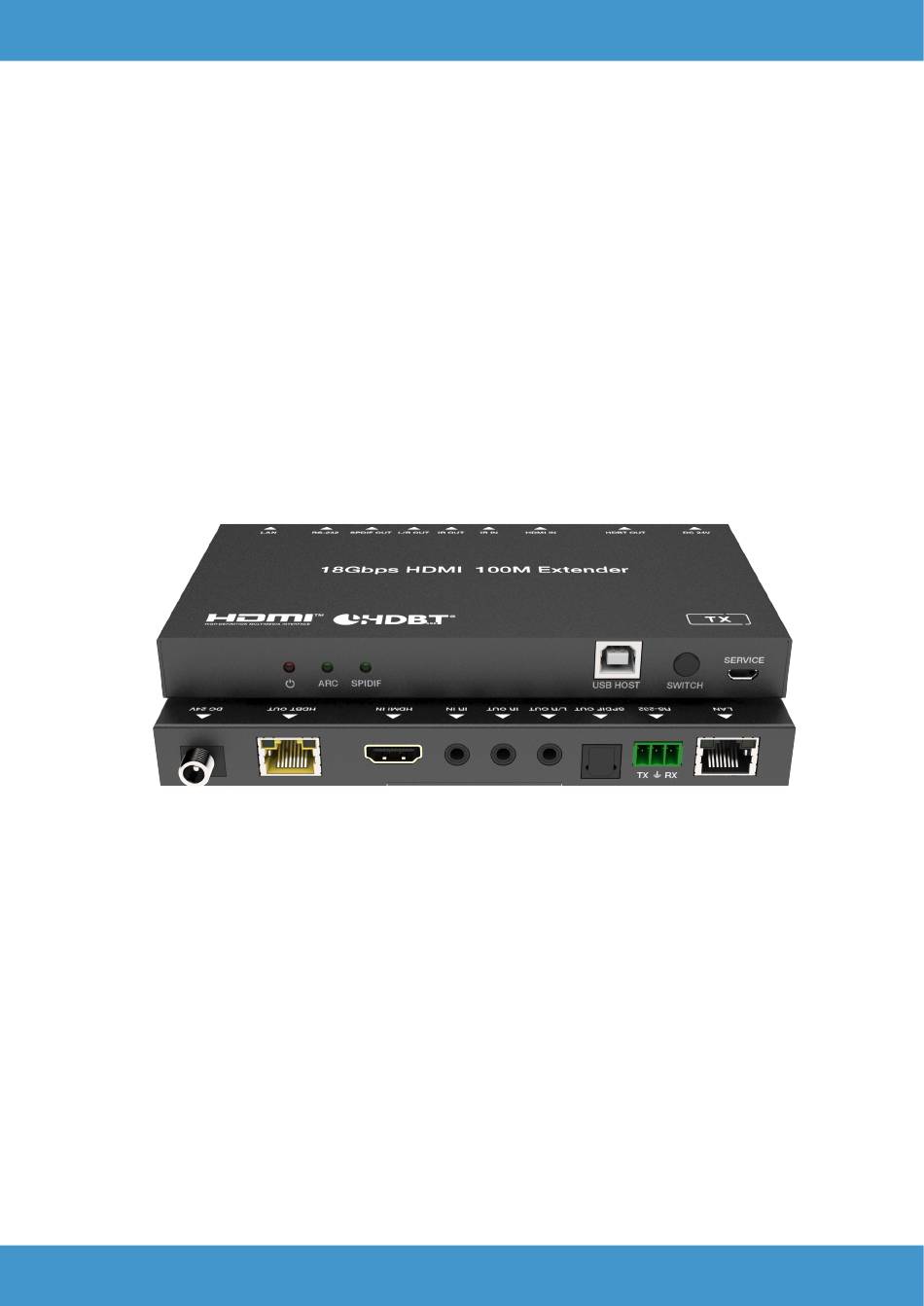

- Page 1 SC05.8100U Scion Tech User Manual HDMI HDBaseT Extender, 100m with USB SC05.8100U Scion Tech Ltd Unit 10 Thatcham Business Village Colthrop Lane Thatcham Berkshire. RG19 4LW United Kingdom www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 226450...
-
Page 2: Table Of Contents
SC05.8100U Scion Tech User Manual Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
SC05.8100U Scion Tech User Manual Description This 18Gbps Extender extends high definition video, audio, bi-directional IR, RS-232, USB 2.0 for KVM and 1G LAN. The supported transmission distance is up to 90 meters for 4K2K@60Hz 4:4:4 resolution and 100 meters for 1080P60Hz resolution between transmitter and receiver over a single CAT 5e/6 cable. -
Page 4: Specifications
SC05.8100U Scion Tech User Manual 4. Specifications Connections Input: 1 x HDMI Type A (19-Pin Female) 1 x HDBaseT (RJ45 Data Socket) 1 x SPDIF (Optical) Output: 1 x L/R Stereo Audio (3.5mm Jack Socket) 1 x 1G LAN (RJ45 data socket) Transmitter 1 x IR IN (3.5mm Jack Socket) -
Page 5: Operation, Control And Functions
SC05.8100U Scion Tech User Manual 5. Operation Controls and Functions 5.1 Transmitter Panel Name Description / Function Power LED The LED will illuminate RED when powered ON. ARC LED The LED will illuminate GREEN when ARC is enabled. SPDIF LED The LED will illuminate Green when audio outputs the SPDIF from the receiver. -
Page 6: Receiver Panel
SC05.8100U Scion Tech User Manual 5.2 Receiver Panel Name Description / Function Power LED The LED will illuminate RED when powered ON. ARC LED The LED will illuminate GREEN when ARC is enabled. SPDIF LED The LED will illuminate Green when audio outputs the SPDIF from the receiver. -
Page 7: Ir Pin Connections
SC05.8100U Scion Tech User Manual 5.3 Audio Signal Output Switching Switch the output audio signal source for SPDIF OUT and L/R OUT port using the “SWITCH” button on the panel (the corresponding LED will illuminate). The status of ARC LED and SPDIF LED... -
Page 8: Application Drawing
SC05.8100U Scion Tech User Manual 6. Application Drawing Page 6 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 226450... -
Page 9: Servicing, Warranty And Maintenance
SC05.8100U Scion Tech User Manual 7. Maintenance, Service & Warranty Clean this unit with a soft, dry cloth. Never use alcohol, pint thinner of benzene to clean these devices. 7.1 Servicing Damage requiring service: This product should be serviced by a qualified service engineer if: ●... -
Page 10: Limited Warranty And Exclusions
SC05.8100U Scion Tech User Manual 7.4 Limited warranty limits and exclusions This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by...
