Scion-Tech SC01.3019 Operating Instructions

60m hdmi extender over single cat5e/6, support 3d, ir

Scion-Tech

Ltd

Digital Video Distribution

SC01.3019

60m HDMI Extender over single Cat5e/6, Support 3D, IR

Operating Instructions

Dear Customer

Thank you for purchasing this product. For optimum performance and safety,

please read these instructions carefully before connecting, operating or adjusting

this product. Please keep this manual for future reference.

FEATURES

Each set includes one transmitter and one receiver.

Allows HDMI Audio/Video Signals and IR to be transmitted over a 60m single

Cat5e/6 cable (UTP cable).

Use single Cat5e/6 cable to substitute HDMI cable to achieve long distance

transmission, cat5e/6 cable follows the standard of IEEE-568B .

Transmission distance reaches up to 60 meters under the video format of

1080p.

Auto-adjustment of feedback, equalization and amplify.

Signaling rates up to 2.25 Gbits at 1080p.

With infrared control signal passing through function.

Support 3D video format.

NOTICE

Our company reserves the right to make changes in the hardware, packaging and

any accompanying documentation without prior written notice.

www.scion-tech.co.uk

Tel: +44 (0) 1635 862484

E-Mail: sales@scion-tech.co.uk

Table of Contents

Need help?

Do you have a question about the SC01.3019 and is the answer not in the manual?

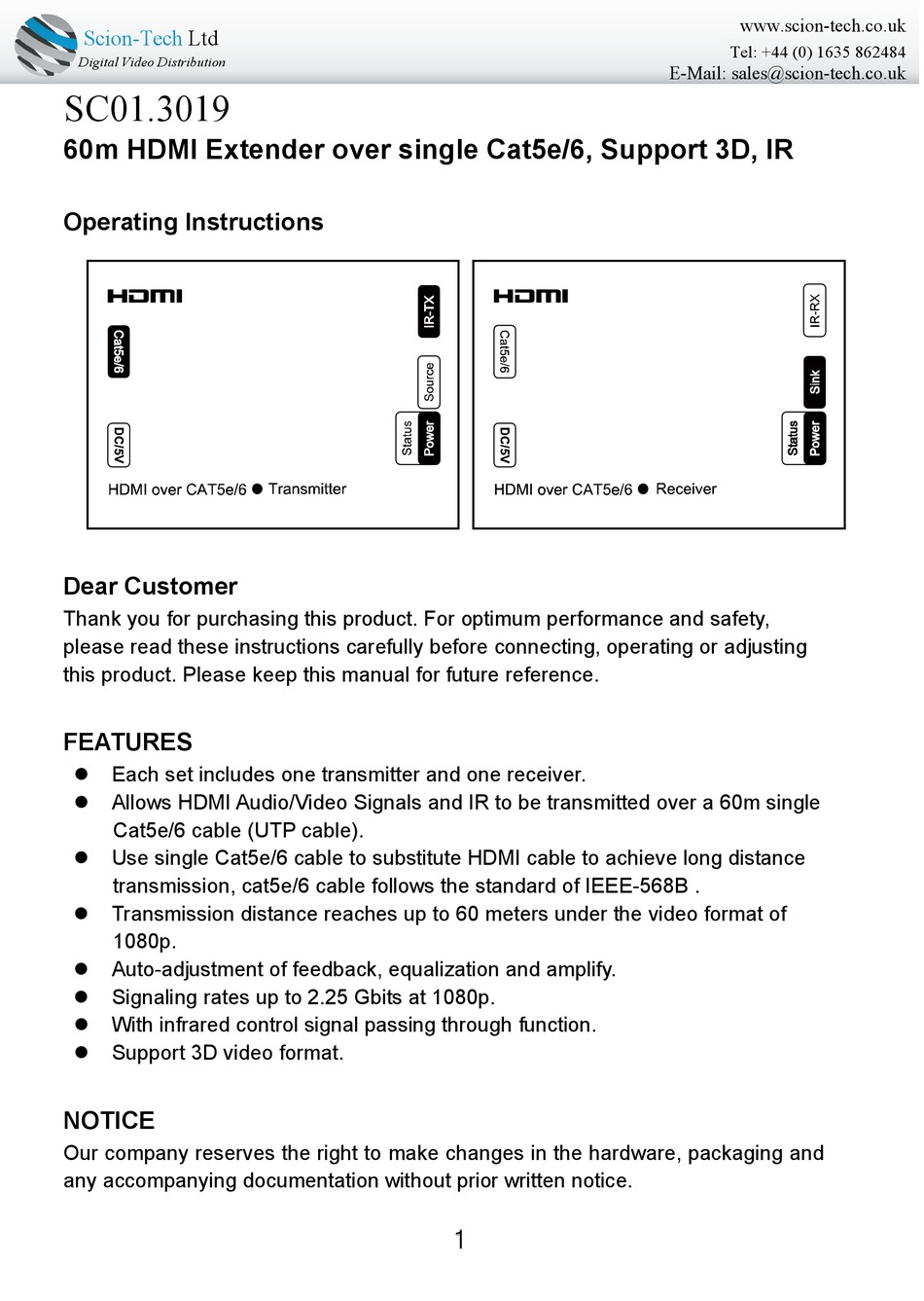

Page 1 Scion-Tech Tel: +44 (0) 1635 862484 Digital Video Distribution E-Mail: sales@scion-tech.co.uk SC01.3019 60m HDMI Extender over single Cat5e/6, Support 3D, IR Operating Instructions Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product.
Page 2 Scion-Tech Tel: +44 (0) 1635 862484 Digital Video Distribution E-Mail: sales@scion-tech.co.uk TABLE OF CONTENTS Specifications Package Contents Panel Descriptions Connecting and Operating Typical Application Maintenance Product Service Warranty SPECIFICATIONS Operating Temperature Range -5 to +35℃(+23 to +95℉) Operating Humidity Range...
Page 3: Panel Descriptions
Scion-Tech Tel: +44 (0) 1635 862484 Digital Video Distribution E-Mail: sales@scion-tech.co.uk PANEL DESCRIPTIONS Transmitter Panel 1) DC5V Power. 2) HDMI input. 3) IR-TX. 4) Cat5e/6 output port. 5) Status of Signals connections. 6) Status of Power Input. Receiver Panel 1) DC5V Power.
Page 4: Typical Application
Scion-Tech Tel: +44 (0) 1635 862484 Digital Video Distribution E-Mail: sales@scion-tech.co.uk CONNECTING AND OPERATING 1) Connect the HDMI input source (such as HD-DVD/PS3/STB etc) into transmitter over HDMI cable. 2) Connect the output of transmitter and input of receiver over CAT5E or CAT6 cable.
