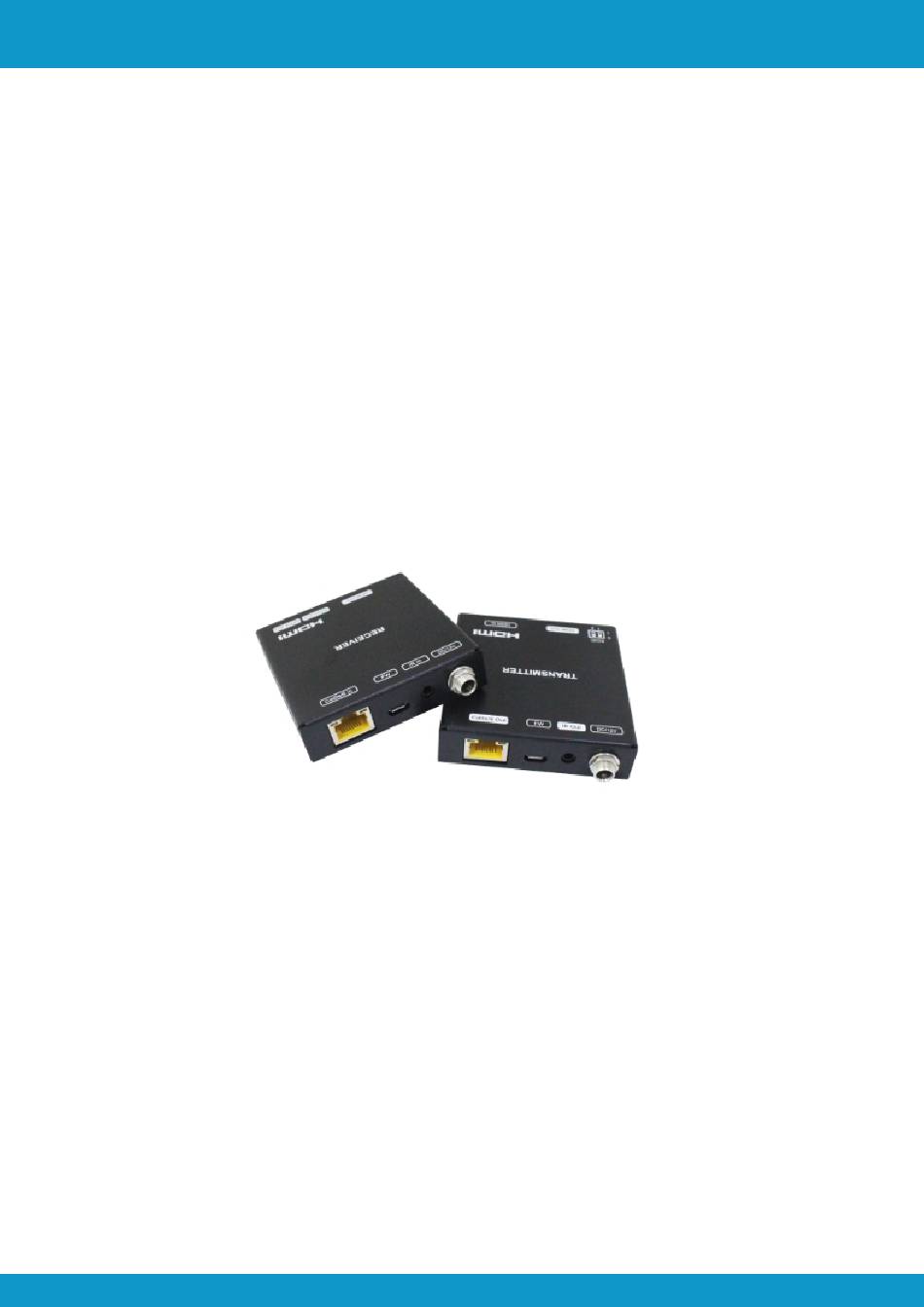

- Page 1 Scion Tech SC01.7060 User Manual 18Gbps 4K HDMI Extender with Looped HDMI & PoC SC01.7060 User Manual Version 1.0 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484...
-
Page 2: Table Of Contents
Scion Tech SC01.7060 User Manual Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
User Manual 1. Introduction The SC01.7060 extends the distance between the HDMI source and display up to 90m over a single CAT5e/6 cable with zero degredation and zero latency. The 18Gbps technology supports resolutions up to 4K/60Hz and LPCM 7.1 digital audio. The transmitter has a looped HDMI output for connecting a local display and the return path wide band infra-red gives smooth control of the source device. -
Page 4: Specifications
Scion Tech SC01.7060 User Manual 4. Specifications Connectivity Transmitter HDMI Input: 1 x HDMI Type A, 19-Pin Female HDMI Output (Looped): 1 x HDMI Type A, 19-Pin Female CAT5e/6 Output: 1 x RJ45 Data Socket Infra-Red Out: 1 x 3.5mm Jack Socket Firmware Upgrade: 1 x Mini HDMI Power: 1 x 2.1mm DC Jack... -
Page 5: Front Panel Description
Scion Tech SC01.7060 User Manual 5. Front Panel Description CAT5e Out IR Out DC/12V EDID HDMI Out HDMI In Number Name Function / Description The transmitter has default integral EDID and the ability to copy EDID. Defaults EDID Switch include 4K/60Hz and 1080P/60Hz. -
Page 6: Application Drawing
Scion Tech SC01.7060 User Manual 7. Application Drawing CAT5e Out IR Out DC/12V EDID HDMI Out HDMI In Display CAT5e In IR In DC/12V Output HDMI Out Analogue Toslink Audio Amplifier Speakers Display Page 5 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 862484... - Page 7 Scion Tech SC01.7060 User Manual 8. Maintenance Clean this unit with a soft, dry cloth. Never use alcohol, pint thinner of benzene to clean these devices. Servicing Damage requiring service: This product should be serviced by a qualified service engineer if: ●...
- Page 8 Scion Tech SC01.7060 User Manual Limited warranty limits and exclusions This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER damages...
