Summary of Contents for Scion-Tech SC05.8070U

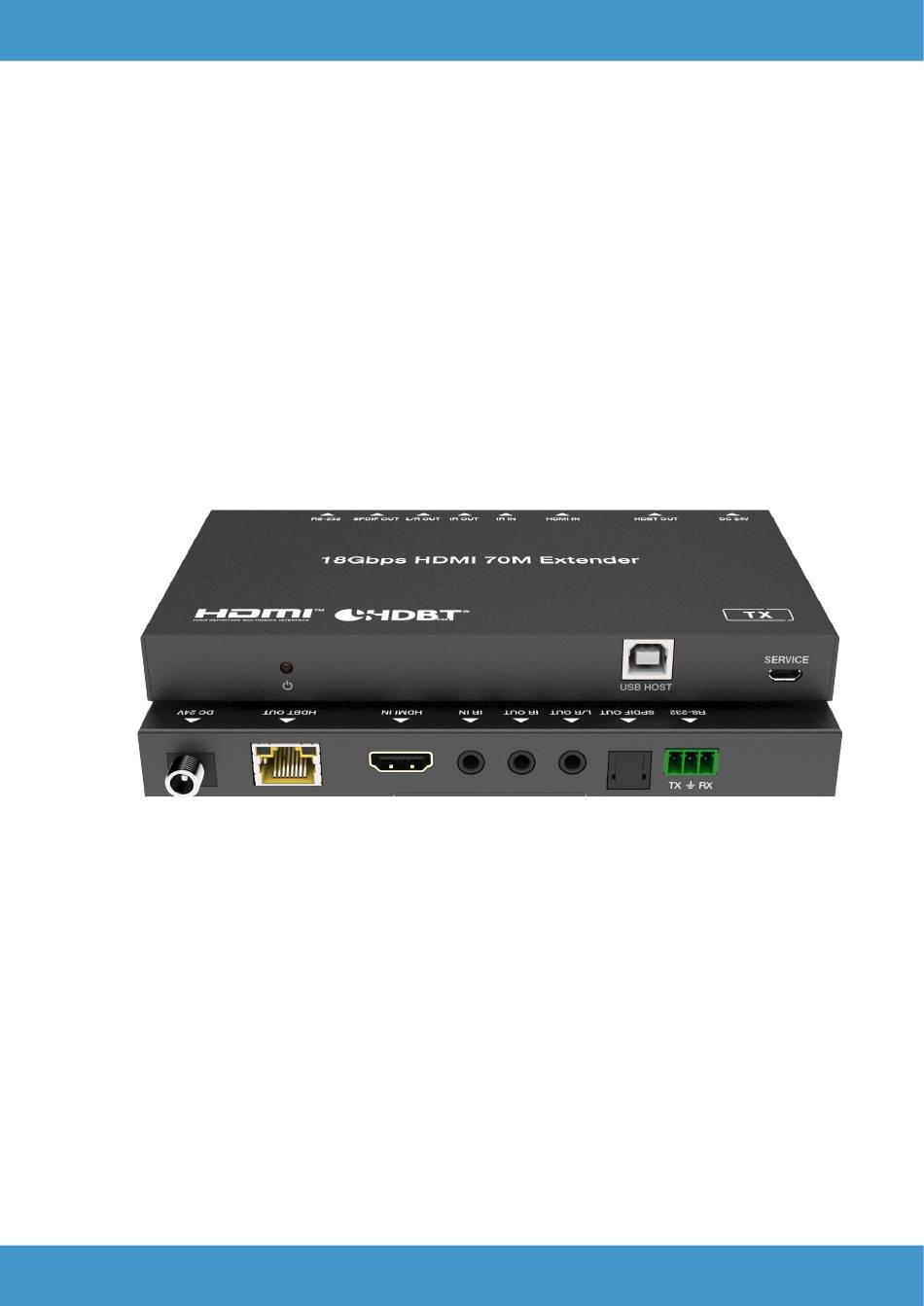

- Page 1 SC05.8070U Scion Tech User Manual HDMI HDBaseT Extender, 70m with USB SC05.8070U Scion Tech Ltd Unit 10 Thatcham Business Village Colthrop Lane Thatcham Berkshire. RG19 4LW United Kingdom www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 226450...
-
Page 2: Table Of Contents
SC05.8070U Scion Tech User Manual Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
SC05.8070U Scion Tech User Manual Description This 18Gbps Extender extends high definition video, audio, bi-directional IR, RS-232 and USB 2.0 for KVM. The supported transmission distance is up to 40 meters for 4K2K@60Hz 4:4:4 resolution and 70 meters for 1080P60Hz resolution between transmitter and receiver over a single CAT 5e/6 cable. -
Page 4: Specifications
SC05.8070U Scion Tech User Manual 4. Specifications Connections 1 x HDMI Type A (19-Pin Female) 1 x IR IN (3.5mm Jack Socket) Input: 1 x Service (Mini-USB) 1 x USB (USB-B, 4-Pin Female) Transmitter 1 x HDBaseT (RJ45 Data Socket) 1 x IR Out (3.5mm Jack Socket) -
Page 5: Operation, Control And Functions
SC05.8070U Scion Tech User Manual 5. Operation Controls and Functions 5.1 Transmitter Panel Number Name Description / Function Power LED The LED will illuminate RED when powered ON USB Host USB Type B port. Connection for PC. Service Port Used only for firmware updates DC 24V /1A Power Input. -
Page 6: Receiver Panel
SC05.8070U Scion Tech User Manual 5.2 Receiver Panel Number Name Description / Function Power LED The LED will illuminate RED when powered ON USB 2.0 Two USB 2.0 ports for devices (keyboard & mouse) etc. Service Port Used only for firmware updates DC 24V /1A Power Input. -
Page 7: Ir Pin Connections
SC05.8070U Scion Tech User Manual 5.3 IR Pin Connections IR receiver and blaster pin connections. Note: When the angle between the IR receiver and the remote control is ± 45 °, the transmission distance is 0-5 meters; when the angle between the IR receiver and the remote control is ± 90 °, the transmission distance is 0-8 meters. -
Page 8: Application Drawing
SC05.8070U Scion Tech User Manual 6. Application Drawing Page 6 www.scion-tech.co.uk sales@scion-tech.co.uk Tel: +44 (0) 1635 226450... -
Page 9: Servicing, Warranty And Maintenance
SC05.8070U Scion Tech User Manual 7. Maintenance, Service & Warranty Clean this unit with a soft, dry cloth. Never use alcohol, pint thinner of benzene to clean these devices. 7.1 Servicing Damage requiring service: This product should be serviced by a qualified service engineer if: ●... -
Page 10: Limited Warranty And Exclusions
SC05.8070U Scion Tech User Manual 7.4 Limited warranty limits and exclusions This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by...
