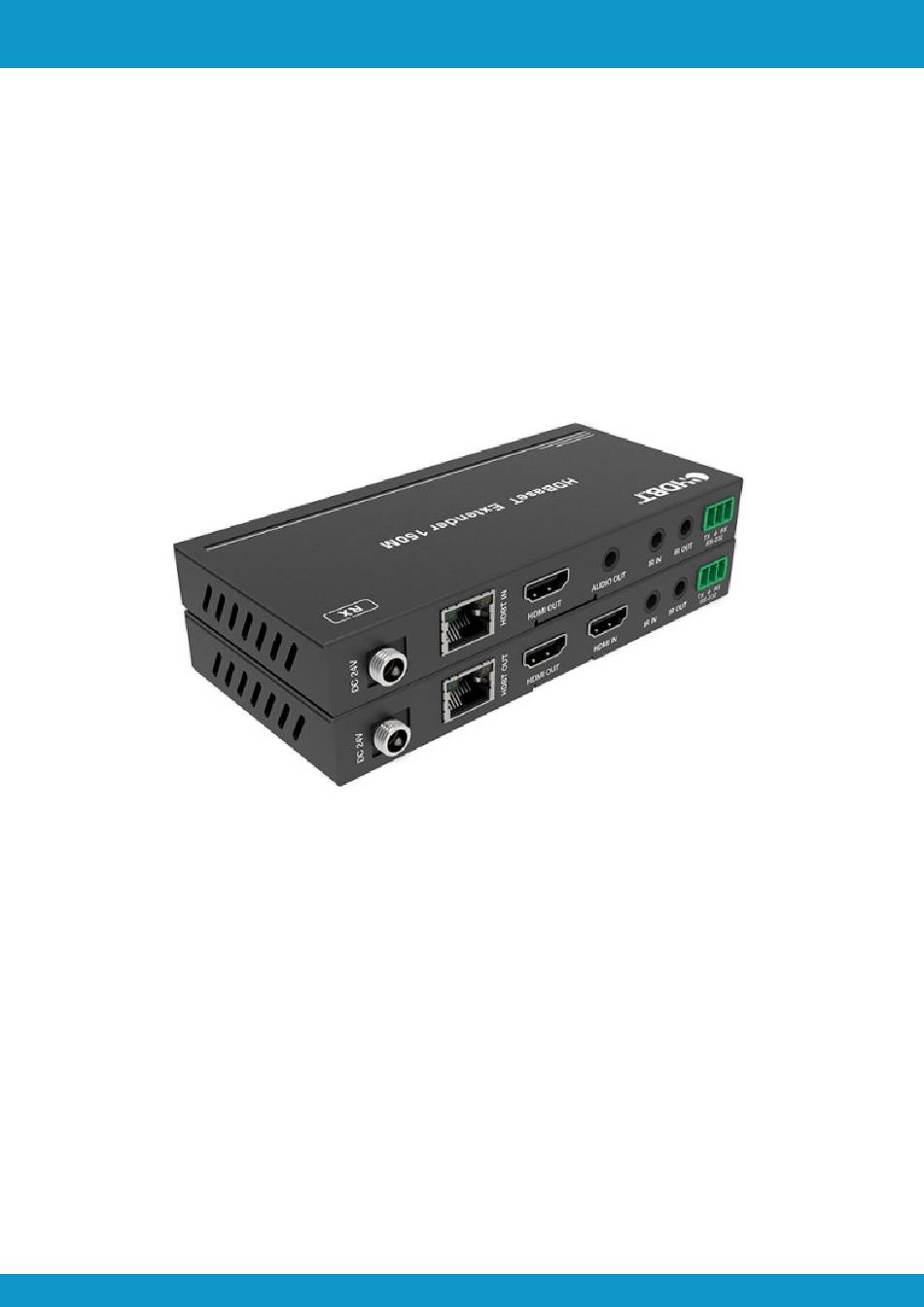

- Page 1 Scion Tech SC05.7150 User Manual SC05.7150 HDMI Extender (HDBaseT), 150m 18Gbps, 4K/60Hz, 4:4:4, HDR User Manual Version 1.0 Tel: +44 (0) 1635 862484 www.scion-tech.co.uk sales@scion-tech.co.uk...
-
Page 2: Table Of Contents
Scion Tech SC05.7150 User Manual Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
PoC (power over cable) means only one device requires power. The SC05.7150 is supplied as a pair and contains Tx/Rx infra-red cables and PSU . These units are ideal for home, office and general retail display screens. -
Page 4: Specifications
Scion Tech SC05.7150 User Manual 4. Specifications Technical HDMI Compliance HDMI 2.0 HDCP Compliance HDCP 2.2 Bandwidth 18Gbps Video Resolutions 4K/60Hz LPCM 2.0/2.1/5.1/6.17.1 channel, Dolby Digital™, Dolby True HD™, HDMI Audio Formats Dolby Digital Plus (DD+)™, DTS HD Master Audio™, DTS HD-HRA, DTS-... -
Page 5: Panel Description (Transmitter)
Scion Tech SC05.7150 User Manual 5. Transmitter Panel Description Front Panel Service Rear Panel HDMI Out HDMI In IR In IR Out RS232 Name Function Power LED Red LED illuminates when powered. Service Port Used for firmware updates only. Power input. The extenders support PoC (power over DC 24V cable), only one end needs a power supply. -
Page 6: Panel Description (Receiver)
Scion Tech SC05.7150 User Manual 6. Receiver Panel Description Front Panel Service Rear Panel HDMI Out IR In IR Out Audio Out RS232 Name Function Power LED Red LED illuminates when powered. Service Port Used for firmware updates only. Power input. The extenders support PoC (power over DC 24V cable), only one end needs a power supply. -
Page 7: Ir Pin Connections
Scion Tech SC05.7150 User Manual 7. IR Pin Connections IR Receiver Cable IR Blaster Cable (Emitter) (Tip) IR Signal (Tip) IR Signal (Ring) Volts + (Ring) Volts + (Body) N/C (Body) Ground 8. Cable lengths Resolution / Distance 394ft / 120m... -
Page 8: Application Drawing
Scion Tech SC05.7150 User Manual 11. Application Drawing IR Emitter HDMI Matrix HDMI Source Satellite Receiver HDMI Out HDMI In IR In IR Out RS232 DC 12V/1A IR Receiver Local Display Extended Display Remote 4K/60Hz CAT5e/6 (max 150m) Audio System... -
Page 9: Maintenance And Warranty
Scion Tech SC05.7150 User Manual 12. Maintenance Clean this unit with a soft, dry cloth. Never use alcohol, pint thinner of benzene to clean these devices. Servicing Damage requiring service: This product should be serviced by a qualified service engineer if: ●... - Page 10 Scion Tech SC05.7150 User Manual Limited warranty limits and exclusions This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER...
