Micro
INSTRUCTION MANUAL: 32 Device,4 Zone Addressable Fire Alarm Panel
ADDRESSABLE
FIRE ALARM PANEL
Display & Controls

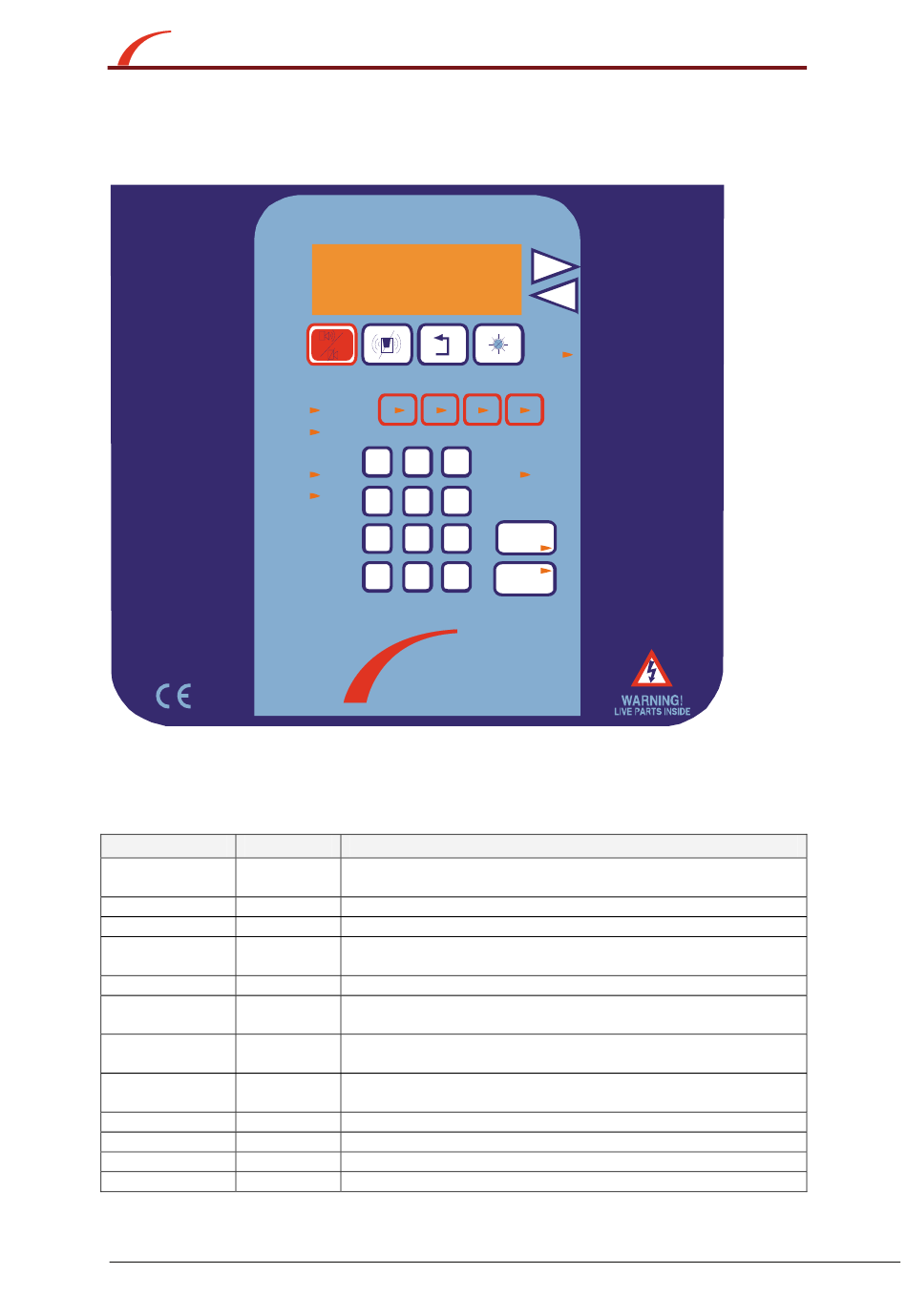

Here is the fascia for the Simplicity Micro.
OPERATING INSTRUCTIONS
FIRE ALARM (RED LIGHTS ON)
In the event of a fire alarm,
Follow building evacuation
procedures.
When it is safe to enter the
building:-
1. Record the alarm address.
2. Enter Access Code.
3. Press Start/Stop sounder
button once.
4. Press Silence tone button.
5. Press reset button.
6. If alarm resounds, repeat
steps 1 to 4. Check cause
of alarm has cleared
before pressing reset.
FAULT ALARM (YELLOW LIGHT)
In the event of a fault alarm,
1. Record the message on
the screen.
2. Enter Access Code.
3. Press Silence tone
4. Contact Engineer or
building supervisor

Display

The Simplicity Micro has the following LED indicators:-
LED COLOUR MEANING
POWER GREEN
FIRE RED
FAULT YELLOW
SYSTEM YELLOW
FAULT
MORE DATA YELLOW
ACCESS ON YELLOW
GENERAL YELLOW
TEST
GENERAL YELLOW
DISABLEMENT
FIRE 1 RED
FIRE 2 YELLOW
FIRE 3 RED
FIRE 4 YELLOW
Approved Document No: GLT.MAN-129
Issue : 1.0 Author: NRPJ
START/STOP SOUNDERS SILENCE TONE
RESET
FIRE ZONE
POWER
1 2
FIRE
1 2 3
FAULT
ABC DEF
SYS FLT
4 5 6
GHI JKL MNO
7 8 9
PQRS TUV WXYZ
0
CANCEL ENTER
(SP).-
S
p
y t
c i
l
i
i
m
Micro
ADDRESSABLE
FIRE ALARM PANEL
COMPLIES WITH EN5 4 part 2 & part 4
M EET S T H E FU NCT IO NA L R EQ U IR EM EN T O F BS:EN 5 8 3 9 p a rt 1
The system has mains and/or battery backup present. The
panel showing this LED only is the normal condition
There is an alarm on the system.
There is a fault on the system. See LCD for more detail
The processor has stopped running. It may have restarted
and be running correctly.
There are further messages to be displayed on screen
The panel controls are active (IE first access code has been
entered)
The panel is in test mode. See LCD for more detail
Part of the system has been disabled. See LCD for more
detail
There is a fire in zone 1. See LCD for more detail
There is a fire in zone 2. See LCD for more detail
There is a fire in zone 3. See LCD for more detail
There is a fire in zone 4. See LCD for more detail
Date: 11/04/2008
OPERATING INSTRUCTIONS
(Continued)
NEXT
TO DISABLE A ZONE
PREV
If a zone is repeatedly giving
a fault, or an alarm, it may
be desirable to disable that
MORE
zone until the system is
DATA
serviced.
LED TEST To disable a zone:-
1. Press General Disablement
3 4
button.
2. Enter Access Code if
prompted.
3. Press General Disablement
button until required zone
ACCESS
is indicated.
ON
4. Press ENTER button to
confirm.
5. Press General Disablement
button again if more zones
GENERAL
need disabling
TEST
6. Repeat above to
re-enable.
GENERAL
WARNING: A disabled zone
DISABLEMENT
will not signal an alarm, so
the fire alarm is effectively
off for that zone.
.
PAGE 8
