INSTRUCTION MANUAL: 32 Device,4 Zone Addressable Fire Alarm Panel
ADDRESSABLE
FIRE ALARM PANEL
Mains & Battery

Connecting the mains.

The Mains supply to the FACP is fixed wiring, using Fire resisting 3-core
cable (Between 1 mm² and 2.5mm²) or a suitable 3-conductor system, fed
from an isolating double pole switch fused spur, fused at 3A. IT SHOULD
NOT BE CONNECTED THROUGH AN RCD. This should be secure from
unauthorised operation and be marked 'FIRE ALARM: DO NOT SWITCH
OFF'. The supply must be exclusive to the Fire Panel. MAKE SURE ANY
SPARE ENTRY HOLES ARE COVERED WITH THE GROMMETS
PROVIDED

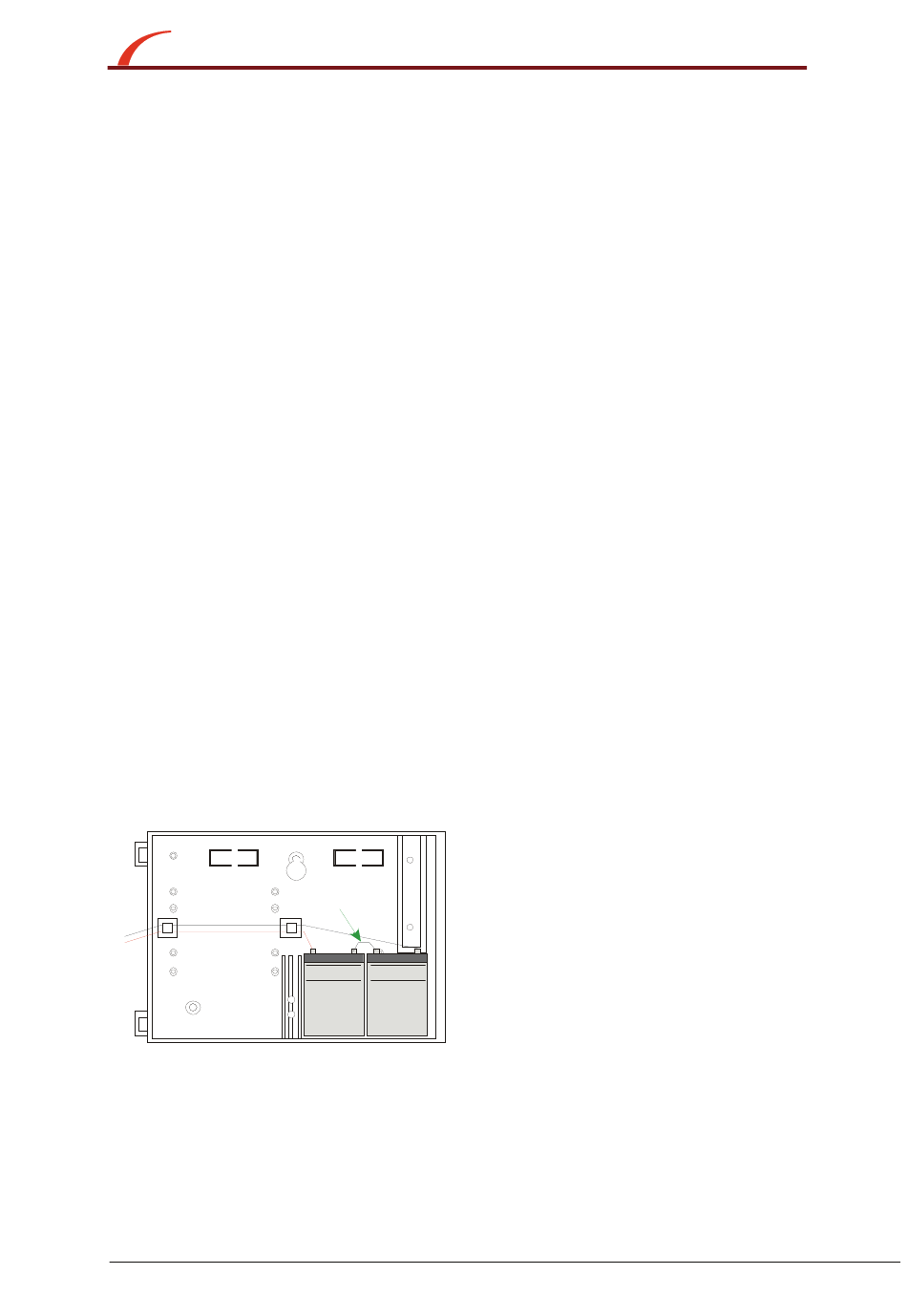

Connecting the batteries

The Simplicity Micro requires 2 x 12 V sealed lead acid (SLA) batteries
The two batteries are wired in series.
The +ve of one battery is connected to the red battery lead.
The –ve of the other battery is connected to the black battery lead.
The –ve of the first battery is connected to the +ve of the second battery using
the link wire supplied.
Although there are many sizes of suitable battery, the sizes the enclosure has
been designed for 12V 2Ah.
TO PCB
2 x 2Ah Batteries
Approved Document No: GLT.MAN-129
Issue : 1.0 Author: NRPJ
BATTERY
INTERC ONNEC TING
C ABLE
SLA BATTERY SLA BATTERY
12V / 2 Ah 12V / 2 Ah
Date: 11/04/2008
PAGE 4
