This installation guide covers 2 model:
TAB-128/3WO-B-ARR-CP
TAB-128/3WO-S-ARR-CP
VADO
Wedmore Road Cheddar Somerset England BS27 3EB
tel 01934 744466
fax 01934 744345
www.vado.com
sales @ vado.com
ARRONDI

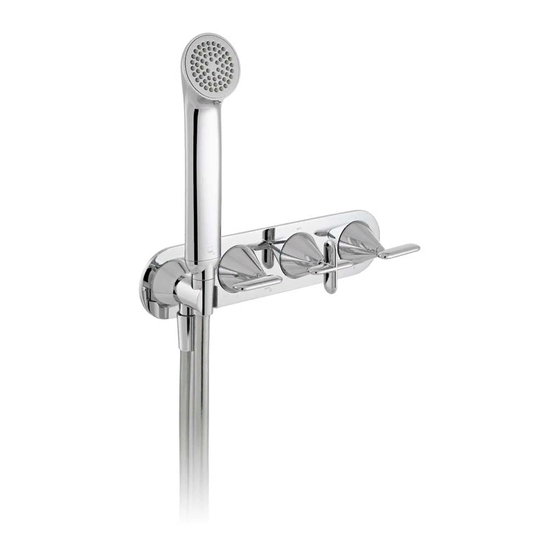

3 handle, 3 outlet thermostatic shower valve
Installation Guide
TAB-128/3WO-B-ARR-CP
TAB-128/3WO-S-ARR-CP
Version 1, 1-4-22
TM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARRONDI TAB-128/3WO-B-ARR-CP and is the answer not in the manual?

Questions and answers

Summary of Contents for VADO ARRONDI TAB-128/3WO-B-ARR-CP

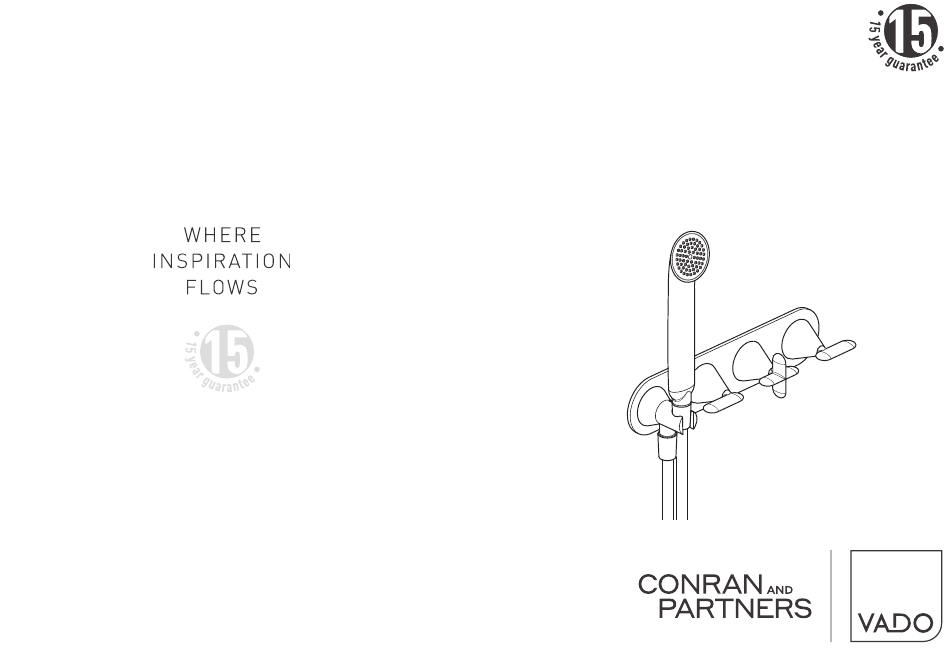

  • Page 1 This installation guide covers 2 model: TAB-128/3WO-B-ARR-CP 3 handle, 3 outlet thermostatic shower valve TAB-128/3WO-S-ARR-CP Installation Guide TAB-128/3WO-B-ARR-CP TAB-128/3WO-S-ARR-CP VADO Wedmore Road Cheddar Somerset England BS27 3EB tel 01934 744466 fax 01934 744345 www.vado.com sales @ vado.com Version 1, 1-4-22...
  • Page 2: Important - Please Read

    Important - Please Read Contents of Packaging Please read these instructions carefully before starting installation and keep for future reference. Remove all packaging and check the product for missing parts or damage before starting installation. Any alterations made to this product and fittings may infringe water regulations and will invalidate the guarantee.
  • Page 3 Contents of Packaging Dimensions Hex key Adaptors ¾" to ½" x 4 Handset 80mm 80mm 80mm 314mm 50mm 50mm Shower hose with 2 washers 58mm 58mm...
  • Page 4 Installation - Quick Guide Installation - Quick Guide 250mm 90mm...
  • Page 5 Installation - Quick Guide Installation - Quick Guide...
  • Page 6: Installation

    If you are fitting the valve to a partition wall or a wall of particularly soft substrate you will need specialist fixings. Please contact VADO or retailer for WG-STUDFAST-C-S/S fixing. Mortar guard During installation please leave the mortar guard secured to the valve to avoid damage to the product and protect the internals during tiling etc.
  • Page 7 Installation Installation - Trim Connect cold supply to the lower left Hot inlet Outlet 1 inlet of the valve and hot supply to the Threaded cartridge upper left inlet. covers Connect outlet 1 to the desired channel e.g. to the shower head. Note: outlet 2 will be connected to the bath.
  • Page 8: Installation - Handset

    Installation Installation - Handset Handle shroud Handle shroud Rubber washer Hose Handset outlet Place a rubber washer into either end of the hose and attach it to the handset outlet (see above). Carefully slide on both control handles onto spline of the valve. While holding the Handset handle in the horizontal position screw the shroud until touches the cover plate.
  • Page 9 Temperature Commissioning Temperature Commissioning Stop adapter Screw Stop ring Stop arm Temperature valve spline Step on stop ring located at 8 o'clock Stop Note: mixed water temperature at terminal fitting should never exceed 46°C. Turn the spline of the thermostatic valve clockwise to decrease the temperature and The valve has been factory set under balance pressures and hot water supply at 65°C.
  • Page 10 Notes: Notes:...
