where inspiration flows
ALTITUDE
Installation Guide

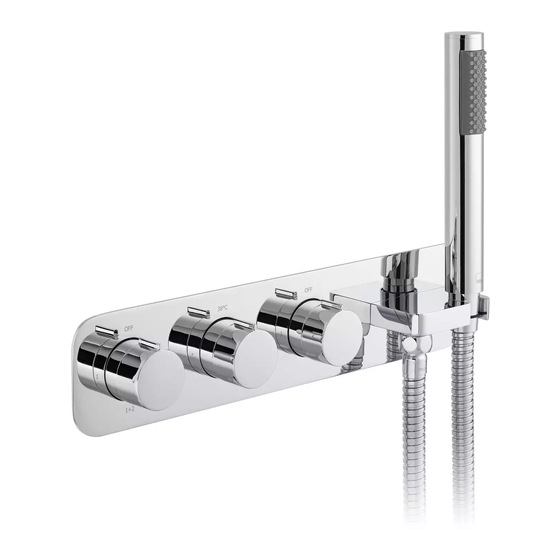

3 handle, 3 outlet thermostatic shower valve
TAB-128/3WO-ALT-CP
This instruction booklet covers model:
TAB-128/3WO-ALT-CP
Vado
Wedmore Road, Cheddar, Somerset, England BS27 3EB
tel 01934 744466.
fax 01934 744345
aftersales @ vado.com
www.vado.com
Keep for future reference
Version 1, 1-2-20
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VADO ALTITUDE TAB-128/3WO-ALT-CP
Summary of Contents for VADO ALTITUDE TAB-128/3WO-ALT-CP
- Page 1 Installation Guide 3 handle, 3 outlet thermostatic shower valve TAB-128/3WO-ALT-CP This instruction booklet covers model: TAB-128/3WO-ALT-CP Vado Wedmore Road, Cheddar, Somerset, England BS27 3EB tel 01934 744466. fax 01934 744345 aftersales @ vado.com www.vado.com Keep for future reference Version 1, 1-2-20...
-
Page 2: Important - Please Read
Important - please read Contents of Packaging Please read these instructions carefully before starting installation and keep for future reference. Remove all packaging and check the product for missing parts or damage before starting installation. Any alterations made to this product and fittings may infringe water regulations and will invalidate the guarantee. - Page 3 Contents of Packaging Dimensions 306mm Rubber caps x 3 ¾" ¾" Adaptors ¾" to ½" x 4 Hex key Handset 80mm 80mm 95mm 370mm Shower hose with 2 washers ½"...
- Page 4 Installation - Quick guide Installation - Quick guide 263mm 90mm...
- Page 5 Installation - Quick guide Installation - Quick guide...
-
Page 6: Installation
If you are fitting the valve to a partition wall or a wall of particularly soft substrate you will need specialist fixings. Please contact VADO or retailer for WG-STUDFAST-C-S/S fixing. Mortar guard During installation please leave the mortar guard secured to the valve to avoid damage to the product and protect the internals during tiling etc. - Page 7 Installation Installation - trim Connect hot supply to the lower right Outlet Cold inlet of the valve and cold supply to the Handset holder Spigot upper right inlet. Connect outlet 1 & 2 to the desired channels e.g. outlet 1 to the shower head, outlet 2 to the bath.
-
Page 8: Installation - Handset
Installation - handset Temperature commissioning Rubber washer Stop Handset outlet Place a rubber washer into the nut end Splines of the hose and attach it to the handset outlet (see above). The valve has been factory set under balance pressures and hot water supply at Handset 65°...
