ALTITUDE
Installation Guide

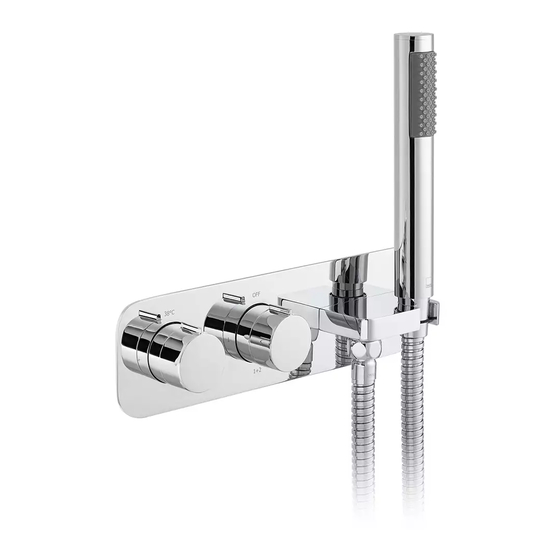

2 handle, 2 outlet thermostatic shower valve
TAB-148/2WO-ALT-CP
This instruction booklet covers model:
TAB-148/2WO-ALT-CP
Vado
Wedmore Road, Cheddar, Somerset, England BS27 3EB
tel 01934 744466.
fax 01934 744345
aftersales @ vado.com
www.vado.com
Keep for future reference
Version 1, 1-2-20
Advertisement
Table of Contents
Related Manuals for VADO ALTITUDE TAB-148/2WO-ALT-CP
Summary of Contents for VADO ALTITUDE TAB-148/2WO-ALT-CP
- Page 1 Installation Guide 2 handle, 2 outlet thermostatic shower valve TAB-148/2WO-ALT-CP This instruction booklet covers model: TAB-148/2WO-ALT-CP Vado Wedmore Road, Cheddar, Somerset, England BS27 3EB tel 01934 744466. fax 01934 744345 aftersales @ vado.com www.vado.com Keep for future reference Version 1, 1-2-20...
-
Page 2: Important - Please Read
Important - please read Contents of Packaging Please read these instructions carefully before starting installation and keep for future reference. Remove all packaging and check the product for missing parts or damage before starting installation. Any alterations made to this product and fittings may infringe water regulations and will invalidate the guarantee. - Page 3 Contents of Packaging Dimensions Rubber caps x 2 ¾" ¾" Adaptors ¾" to ½" x 3 Hex key Handset 80mm 95mm 285mm Shower hose with 2 washers ½"...
- Page 4 Installation - Quick guide Installation - Quick guide 142mm 90mm...
- Page 5 Installation - Quick guide Installation - Quick guide...
-
Page 6: Installation
If you are fitting the valve to a partition wall or a wall of particularly soft substrate you will need specialist fixings. Please contact VADO or retailer for WG-STUDFAST-C-S/S fixing. Mortar guard During installation please leave the mortar guard secured to the valve to avoid damage to the product and protect the internals during tiling etc. - Page 7 Installation Installation - trim Connect cold supply to the lower left Spigot Hot inlet Outlet 1 inlet of the valve and hot supply to the Handset holder upper left inlet. Connect outlet 1 to the desired channel e.g. to the shower head. Note: outlet 2 will be connected to the handset.
-
Page 8: Installation - Handset
Installation - handset Temperature commissioning Rubber washer Handset outlet Stop Place a rubber washer into the nut end of the hose and attach it to the handset Splines outlet (see above). The valve has been factory set under balance pressures and hot water supply at Handset 65°...
