Operation

Key instruction

5.1

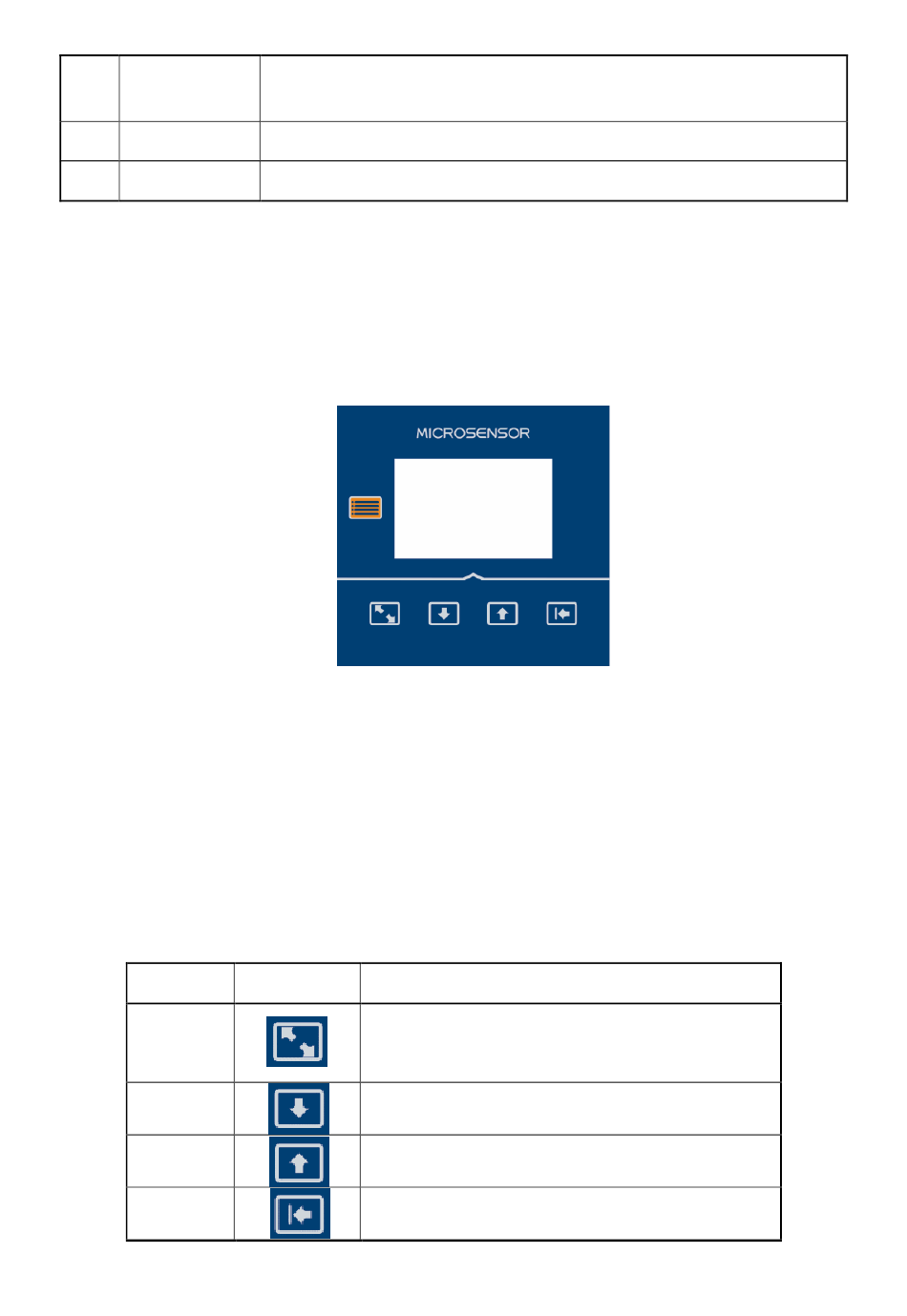

The electromagnetic flowmeter display and operation interface are shown in Figure 4. There is a key on
the left side of the screen and 4 keys on the bottom side of the display screen
The meaning of the keys and operation methods are shown in Table 6. The composite key needs to
press two keys at the same time. If there is no key operation within 10 minutes, it will automatically return
to the main screen. This version does not provide touch keys or infrared remote-control keys. If you need
to set up, you must open the front cover.
Key
Shift
Down
Up
Enter
The fluid is not filled with pipe; the media conductivity is less than 5us; the electrode is
misconnected
The real-time flow value is higher than the set upper limit of alarm value
The real-time flow value is lower than the set lower limit of alarm value
Figure 4 Operation interface
Table 6
Sign
1. Use in combination with the confirm key to enter the
password interface;
2. Cursor movement during password input
Number minus 1 or page down
Number plus 1 or page up
Enter or exit
