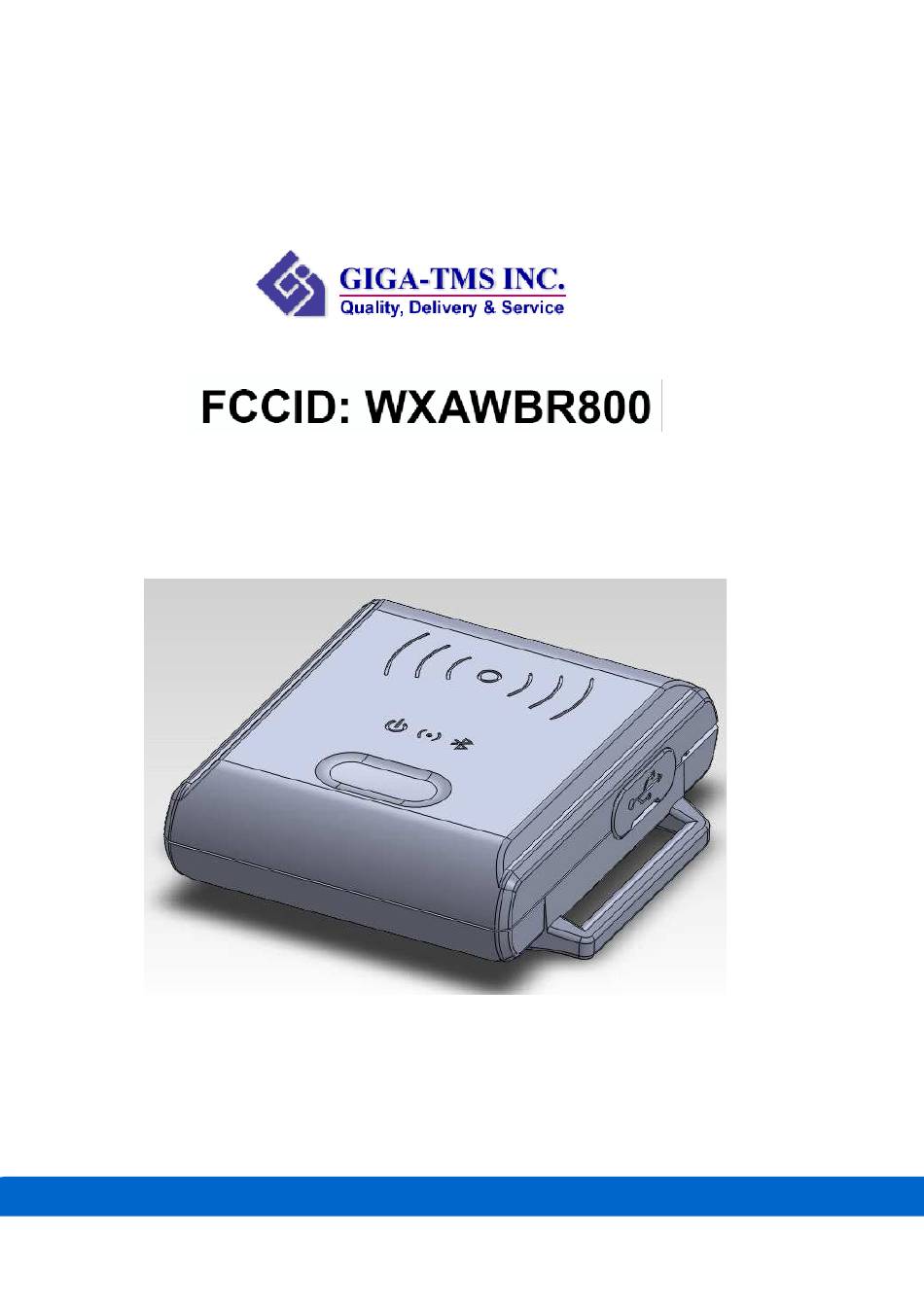

  • Page 1 WBR800 WRISTBAND RFID READER USER GUIDE TM970186 September 05, 2013...
  • Page 2 Copyright© 2013 GIGA-TMS INC. Printed in Taiwan Copy right○ 2013: without a written approval from GIGA-TMS INC, this document is not allowed to be duplicated for the public usage. The content is subjected to change without notice Revision history Version...
  • Page 3 Warning notice The Federal Communication Commission Statement This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential.
  • Page 4: Table Of Contents

    Table of contents Introduction………..….……………………………………………………………………..1 What’s in the box ....................... 1 Optional accessories ....................2 Specification....................... 3 Reader status ......................4 Connecttions for setting.................... 6 Operational Description .................... 7 Contact us…………………………………………………………………………………….8...
  • Page 5: Introduction

    WBR800 Introduction WBR800 is a slightly designed high frequency RFID reader with ISO15693. It has widely varied applications such as Asset Control, Transportation Management, Logistic of Items Management…etc. We strongly suggest you to read this manual in details before you start the setup.
  • Page 6: Optional Accessories

    WBR800 Optional accessories Following parts are available to purchase from GIGA-TMS to work with WBR800 Reader. Go to promag@gigatms.com.tw for sales inquiry of these items. EFA800 Finger Antenna © 2013 GIGA-TMS Corporation. All rights reserved http://www.gigatms.com.tw...
  • Page 7: Specification

    Discharge temp : -0° C ~ 60° C Humidity Operating: 10% ~ 90% non-condensing Storage: up to 90% non-condensing Safety approval Approval CE R&TTE FCC ID EN 300 330 PART 15B/C EN 301 489-1/-3 EN 60950-1 © 2013 GIGA-TMS Corporation. All rights reserved http://www.gigatms.com.tw...
  • Page 8: Reader Status

    WBR800 Reader status RFID Scan Area Charge Power / Scan Bluetooth Touch Key Micro USB Area Connector © 2013 GIGA-TMS Corporation. All rights reserved http://www.gigatms.com.tw...
  • Page 9 Scanning A new calculation of 10 seconds scanning time after any times successful reading within 10 seconds. Bluetooth Blue LED Continuous Blink Once Ready Bluetooth Blue LED Continuous Blink Twice Link OK © 2013 GIGA-TMS Corporation. All rights reserved http://www.gigatms.com.tw...
  • Page 10: Connecttions For Setting

    The working hours would be more than 48 hours (Stand alone and Always On). When WBR800 is connected with USB cable, it will use power from PC instead.
  • Page 11: Operational Description

    When the unit is connected with the PC through the communication Cable (WAS-T0675-R) and the PC is running WBR800 software and open the USB for the unit, then the unit will be turned on in about 0.5 second by the PC through the USB PORT. Then you can do the unit Setting and Configuration.
  • Page 12: Contact Us

    Contact us Company address: 8F, No. 31, Lane 169 Hsi-Chih Dist, New Taipei City Taiwan Telephone: (02) 26954214 Fax: (02) 26954213 Official web-site: www.gigatms.com.tw emails: Product information: - promag@gigatms.com.tw Technical support: - support@gigatms.com.tw © 2013 GIGA-TMS Corporation. All rights reserved http://www.gigatms.com.tw...
