- Page 1 SLR810 Hardware User Guide TM951327 Apr 9, 2020...
- Page 2 Copyright © 2020 GIGA-TMS INC. Printed in Taiwan Any part of the contents of this document, without the express written GIGA-TMS permission, shall not in any documents, electronic, mechanical form of remakes or spread. File contents are subject to change without notice.
- Page 3 Has been tested in accordance to essential protection requirements of the RED – DIRECTIVE 2014/53/EU, EU-LOW VOLTAGE DIRECTIVE 2014/35/EU on the approximation of the laws of the Member States relating to Radio Spectrum Matters and found the test results indeed meet the limitation of the relevant test standard(s) listed below: MPE SAR EN301489-1-3...
- Page 4 Warning Federal Communication Commission (FCC) Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 5 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
- Page 6 LIMITED WARRANTY Giga-Tms warrants that the products sold pursuant to this Agreement will perform in accordance with Giga-Tms’s published specifications. This warranty shall be provided only for a period of one year from the date of the shipment of the product from Giga-Tms (the “Warranty Period”).
- Page 7 THE SOLE REMEDY SHALL BE REPAIR OR REPLACEMENT AS PROVIDED ABOVE. GIGA-TMS’S LIABILITY, IF ANY, SHALL IN NO EVENT EXCEED THE TOTAL AMOUNT PAID TO GIGA-TMS UNDER THIS AGREEMENT. IN NO EVENT WILL GIGA-TMS BE LIABLE TO THE BUYER FOR ANY DAMAGES, INCLUDING...
-
Page 8: Table Of Contents
Contents Chapter 1 : Introduction ................ 9 Introduce ......................9 Chapter 2：About SLR810 ..............10 Specification ...................... 10 LED Indication ....................11 Chapter 3：How to use SLR810 ............12 Before Installing ....................12 Start to use SLR810................... 12 Chapter 4：Good to Read ..............13 Chapter 5：Troubleshooting .............. -
Page 9: Chapter 1 : Introduction

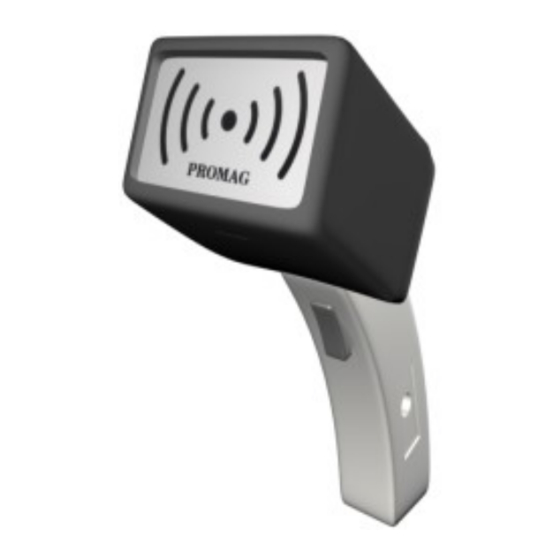

Chapter 1 : Introduction Introduce The SLR810 include Antenna. It is all in one Ultra High Frequency RFID Reader compliant to ISO18000-6C EPC Gen 2 protocol with an operating range of 860 to 960 MHz. With UHF Tag which maximum read range can up to 0.5 meters. SLR810 include USB HID connect to PC or Controler. -
Page 10: Chapter 2：About Slr810
Chapter 2：About SLR810 Specification SLR810 series EUROPE TAIWAN (902.75-927.25Mhz) (865.7-867.5Mhz) (920-928Mhz) Model SLR810-00 SLR810-30 SLR810-40 Standard RFID spec ISO 18000-6C, EPC Class1 Gen2 Interface Wire – USB HID Interface Power Require Working : Max 500mA@5VDC Dimension L: 70mm / W: 40mm / H: 175mm Physical Characteristics Weight 200g... -
Page 11: Led Indication
LED Indication LED Orange LED Green Buzzer Vibration Power just turned on Blink once Ring once Vibration once Standby ● Read Success Blink once Ring once Vibration once... -
Page 12: Chapter 3：How To Use Slr810
Chapter 3：How to use SLR810 Before Installing Before Install SLR810. Please make sure the following items are ready. A SLR810 A PC or Controller. PC need already installed SLR810 software (DISK5472) Start to use SLR810 The SLR810 use USB HID to connect the PC or Controller. ... -
Page 13: Chapter 4：Good To Read
Chapter 4：Good to Read The antenna of the SLR810 is horizontally polarized. UHF Tag is consistent with antenna direction which can get better reading distance. -
Page 14: Chapter 5：Troubleshooting
Chapter 5：Troubleshooting 1. Cannot connect to SLR810 with SLR810 software? Please check that the SLR810 is actually connected to USB. Please check the power light (Green light) of SLR810 is lighting... -
Page 15: Contact Us
Contact Us Address: 8F, NO.31, Lane 169, Kang-Ning Street, His-Chih Dist, New Taipei City, Taiwan Tel: 886-2-26954214 Fax: 886-2-26954213 Websites: www.gigatms.com.tw Email: Sales inquiry email - promag@gigatms.com.tw After sales service - support@gigatms.com.tw...
