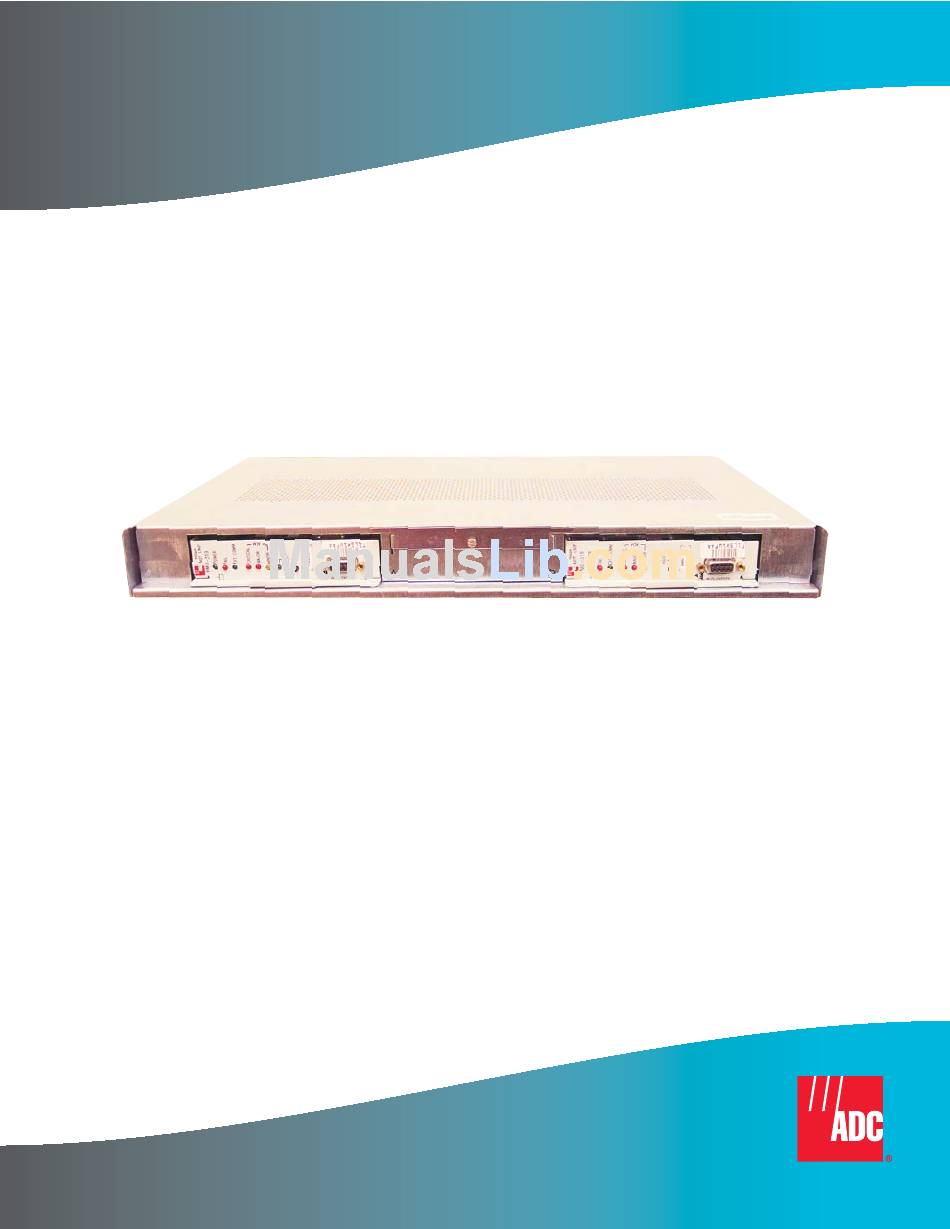

- Page 1 HRM-238 List 1 HiGain Retrofit Management Shelf User Manual Product Catalog: HRM-238 L1 CLEI: T1MFW004...
-
Page 2: July
Contents herein are current as of the date of publication. ADC reserves the right to change the contents without prior notice. In no event shall ADC be liable for any damages resulting from loss of data, loss of use, or loss of profits, and ADC further disclaims any and all liability for indirect, incidental, special, consequential or other similar damages. -
Page 3: Using This Manual
• Unpack each container and inspect the contents for signs of damage. If the equipment has been damaged in transit, immediately report the extent of damage to the transportation company and to ADC Telecommunications, Inc. Order replacement equipment, if necessary. - Page 4 Inspecting Shipment LTPH-UM-1237-04 July 21, 2004 HRM-238 List 1...
-
Page 5: Table Of Contents
LTPH-UM-1237-04 ABLE OF ONTENTS Overview ____________________________________________________________________________ 1 Features ...1 Operational Capabilities...2 Application ...2 Management Cabling...4 Installation___________________________________________________________________________ 5 Inspecting Your Shipment ...5 Installing the HRM-238 Shelf...5 Installing Frame Ground and Battery Power ...5 Installing Communication Wiring ...6 Connect NMA Wiring ...7 Connect to a LAN or Interconnect Shelves ...9 Connect to a Computer, Terminal, or Modem...9 Identifying Alarms ...11... - Page 6 List of Figures IST OF IGURES 1. HRM-238 List 1 (front view) ... 1 2. Recommended Network Setup for 220 Type Shelves... 2 3. Recommended Network Setup for 3190 Type Shelves... 3 4. Recommended Network Setup for DDM+ Type Shelves ... 3 5.
- Page 7 LTPH-UM-1237-04 IST OF ABLES 1. HRM-238 Connectors ...4 2. Terminal Block (TB1) ...6 3. P1 and P6 NMA Connectors ...8 4. BNC Connector J1 and J3 ...9 5. AUX P3 and P5 Connectors ...10 6. OS Port P2 and P4 ...10 7.
- Page 8 List of Tables LTPH-UM-1237-04 viii July 21, 2004 HRM-238 List 1...
-
Page 9: Overview
LTPH-UM-1237-04 VERVIEW ® The HiGain HRM-238 List 1 is a two-slot HiGain Retrofit Management (HRM) shelf. This shelf fits into either a 19- or 23-inch Central Office (CO) equipment rack. It accommodates up to two HiGain management units (HMU-319s). It is used in conjunction with 220-type, unmanaged 3190 type, and DDM+ type mechanic shelves to manage HiGain line units. -
Page 10: Operational Capabilities
Overview PERATIONAL APABILITIES Application With two HMU-319 management units installed, the HRM-238 shelf provides network management for up to 56 HiGain line units. Recommended Network Setup for 220 Type Shelves The configuration shown in Figure 2 HRM-238 shelf between the 220 type shelves, with up to two 220-type shelves above and two below. This limits the distance for the wire leads between the connectors for the management units and the line units they manage. -
Page 11: Recommended Network Setup For 3190 Type Shelves
LTPH-UM-1237-04 Recommended Network Setup for 3190 Type Shelves The configuration shown in Figure 3 HRM-238 shelf below the 3190 type shelves. This limits the distance for the wire leads between the connectors for the management units and the line units they manage. with the A-side connectors on the right and the B-side connectors on the left. -
Page 12: Management Cabling
Overview Management Cabling Figure 5 shows the location for each connector on the HRM-238 shelf backplane. types and management functions available to the HMU-319 management units through those connectors. B-side connectors 50-pin Amphenol AUX port DB-25 connector (P6) connector (P5) Alarm relay pins (J14) BNC connector (J3) Figure 5. -
Page 13: Installation
• Unpack each container and inspect the contents for signs of damage. If the equipment has been damaged in transit, immediately report the extent of damage to the transportation company and to ADC Telecommunications, Inc. Order replacement equipment, if necessary. -
Page 14: Installing Communication Wiring
Installation Remove the fuse(s) in the equipment bay fuse panel for the circuit(s) where the HRM-238 shelf battery wire(s) will terminate. Connect one end of the frame ground wire to Terminal 4 (FGND) on TB1 of the HRM-238 shelf and attach the other end of the frame ground wire to the CO ground wire termination point. -
Page 15: Connect Nma Wiring
LTPH-UM-1237-04 Connect NMA Wiring From the 50-pin Amphenol connector P1 and/or P6 shelf backplane for each line unit being managed. Route wires from the P1 and P6 connectors to the NMA 220-type mechanics shelves as shown in information. 50-pin Amphenol connector (P6) Remove the plastic cover from the 50-pin Amphenol connector P1 and/or P6. -
Page 16: P1 And P6 Nma Connectors
Installation Description NMA_1 NMA_3 NMA_5 NMA_7 NMA_9 NMA_11 NMA_13 NMA_15 NMA_17 NMA_19 NMA_21 NMA_23 NMA_25 NMA_27 F_ALAM LOS_ALM Table 3. P1 and P6 NMA Connectors Description NMA_2 NMA_4 NMA_6 NMA_8 NMA_10 NMA_12 NMA_14 NMA_16 NMA_18 NMA_20 NMA_22 NMA_24 NMA_26 NMA_28 ERR_ALM July 21, 2004 LTPH-UM-1237-04... -
Page 17: Connect To A Lan Or Interconnect Shelves
LTPH-UM-1237-04 Connect to a LAN or Interconnect Shelves Use the BNC connector (Figure Consult the appropriate user manual for the HMU-319 management unit and for the software used in the application. See Table 4 for information on BNC connector J1 and J3. BNC connector (J3) Connect to a Computer, Terminal, or Modem The AUX and OS connectors... -
Page 18: Aux P3 And P5 Connectors
Installation Use a null modem connector for cross-over cabling when attaching a device that is not configured as DCE (such as terminals or computers running terminal emulation software) to these connectors. for the two AUX ports (one port for each management unit). port for each management unit). -
Page 19: July
LTPH-UM-1237-04 DENTIFYING LARMS Alarm relay contacts for each management unit are on J13 and J14 and an alarm monitoring device per local practice. Alarm relay pins (J14) Description CRIT_AUD_NC_A CRIT_AUD_COM_A CRIT_AUD_NO_A CRIT_VIS_NC_A CRIT_VIS_COM_A CRIT_VIS_NC_A MAJ_AUD_NC_A MAJ_AUD_COM_A MAJ_AUD_NO_A MAJ_VIS_NC_A MAJ_VIS_COM_A MAJ_VIS_NO_A URNING P THE YSTEM... -
Page 20: Verify Cabling
Installation Verify Cabling Verify the following: Verify a minimum of -42 Vdc and a maximum of -56 Vdc between the following: -48 Vdc battery screw Terminal 1 and the battery common Terminal 3 (BATTERY RETURN) -48 Vdc battery screw Terminal 2 (when used) and the battery common Terminal 3 (BATTERY RETURN) Visually verify that all connections are securely terminated. -
Page 21: Appendix A - Specifications
LTPH-UM-1237-04 A - S PPENDIX Power Maximum power CO Supply Fuse Size Physical Material Finish Capacity Mounting Dimensions Height Width Depth (including the wire-wrap terminals) Weight Operational Environment Temperature Humidity Altitude Storage Environment Temperature Humidity HRM-238 List 1 PECIFICATIONS 10.0 Watts -48 Vdc nominal (-42.5 Vdc to -56.5 Vdc) 0.5A Steel... -
Page 22: Appendix B - Product Support
B - P PPENDIX ADC Customer Service Group provides expert pre-sales and post-sales support and training for all its products. Technical support is available 24 hours a day, 7 days a week by contacting the ADC Technical Assistance Center. Sales Assistance 800.366.3891 Systems Integration 800.366.3891... -
Page 23: Appendixc - Abbreviations
LTPH-UM-1237-04 C - A PPENDIX BNC: Bayonet-Lockingl Connector Central Office DCE: Data Communication Equipment DTE: Data Terminal Equipment HCS: HiGain Card Shelf HMU: HiGain Management Unit HRM: HiGain Retrofit Management LAN: Local Area Network NMA: Network Management Agent PADs: Packet Assembler/Disassemblers HRM-238 List 1 BBREVIATIONS July 21, 2004... - Page 24 Appendix C - Abbreviations LTPH-UM-1237-04 July 21, 2004 HRM-238 List 1...
-
Page 25: Certification And Warranty
Customer Service for details. ODIFICATIONS Any changes or modifications made to this device that are not expressly approved by ADC Telecommunicaitons, Inc. voids the user's warranty. All wiring external to the products should follow the provisions of the current edition of the National Electrical Code. -
Page 26: Technical Assistance
World Headquarters ADC Telecommunications, Inc. PO Box 1101 Minneapolis, Minnesota USA 55440-1101 Technical Assistance Tel: 800.366.3891 : LTPH-UM-1237-04 OCUMENT ´,•9¶1S¨ 1299251...
