OPERATOR'S MANUAL FOR
GEN-13000-1MSE
GEN-14000-1MHE
GENERATORS
CAUTION
RISK OF INJURY! READ ENTIRE MANUAL BEFORE OPERATING!
THIS MANUAL IS AN IMPORTANT PART OF THE GENERATOR AND
MUST REMAIN WITH THIS UNIT!
©Copyright 2009, Mi-T-M Corporation®
37-1072-E/F/S-020821

Advertisement

Table of Contents
loading

Related Manuals for Mi-T-M GEN-13000-1MSE

Summary of Contents for Mi-T-M GEN-13000-1MSE

  • Page 1 OPERATOR’S MANUAL FOR GEN-13000-1MSE GEN-14000-1MHE GENERATORS CAUTION RISK OF INJURY! READ ENTIRE MANUAL BEFORE OPERATING! THIS MANUAL IS AN IMPORTANT PART OF THE GENERATOR AND MUST REMAIN WITH THIS UNIT! ©Copyright 2009, Mi-T-M Corporation® 37-1072-E/F/S-020821...
  • Page 2 Introduction THANK YOU for purchasing a Mi-T-M product. The SERIAL NUMBER is located in the Specification or Identification Numbers section. Accurately record all the READ THIS MANUAL carefully to learn how to operate numbers to help in tracing the machine should it be stolen.

  • Page 3: Table Of Contents

    Contents Page Safety ................ 5 Safety Signs ............. 6 Controls ..............13 Preparing the Generator ........14 Operation ..............18 Troubleshooting ............. 22 Service ..............23 Storage ..............29 Specifications ............30 Warranty ............. 31-33 All information, illustrations and specifications in this manual are based on the latest information available at the time of publication.
  • Page 4 Contents Operator’s Manual...

  • Page 5: Safety

    Replace missing or damaged safety signs. Be sure new equipment components and repair parts include the current safety signs. Replacement safety signs are available from your Mi-T-M Customer Service Representative. Learn how to operate the machine and how to use controls properly.

  • Page 6: Safety Signs

    CARBON MONOXIDE - POISONOUS GAS Use generator outdoors, away from open windows, vents, or doors. Generator exhaust contains carbon monoxide - a poisonous gas that can kill you. You CAN NOT smell or see this gas. Never use a generator in enclosed or partially-enclosed spaces. Generators can produce high levels of carbon monoxide very quickly.
  • Page 7 A GFCI will not work on generators that do not have the neutral wire bonded to the frame, or on generators which have not been properly grounded. All Mi-T-M generators have internally bonded ground wires. A GFCI will not work if the unit is not properly grounded.
  • Page 8 (Ground Fault Circuit Interrupter). Test GFCI before each use, see Operations Instructions for further information. If GFCI fails test, DO NOT use your generator. Contact your Mi-T-M Customer Service Representative. Plug appliances directly into the generator. Or, use a heavy duty, outdoor-rated extension cord that is rated (in watts or amps) at least equal to the sum of the connected appliance loads.
  • Page 9 IMPORTANT SAFETY INSTRUCTIONS WARNING: To reduce the risk of injury, read this operator’s manual completely before using. When using this product, the following basic precautions should always be followed: 1. Read all the instructions before using the product. 2. This product is equipped with a Ground Fault Circuit Interrupter (GFCI) in the power cord to reduce the risk of electrical shock.
  • Page 10 IMPORTANT SAFETY INSTRUCTIONS 10. Do not operate the generator or any electrical tool in any area where water or similar materials constitute an electrical hazard to the operator. Do not operate on wet surfaces, in rain or in snow. 11. Always be sure that the generator is on secure footing so that it cannot slide or shift around, endangering workers.
  • Page 11 WEAR PROTECTIVE CLOTHING Wear close fitting clothing and safety equipment appropriate to the job. Wear a suitable hearing protective device such as earmuffs or earplugs to protect against objectionable or uncomfortable loud noises. Operating equipment safely requires the full attention of the operator.
  • Page 12 SAFETY SIGNS 34-0889 062104-ENG. 34-0889 Location: Frame Assembly WARNING AVERTISSEMENT ADVERTENCIA SHOCK DÉCHARGE DESCARGA A generator is a potential shock hazard which can result Un génerateur pose un danger de décharge électrique qui peut entraîner des blessures Un generador es un potencial riesgo de descarga que puede resultar en lesiones in serious injury or death.

  • Page 13: Controls

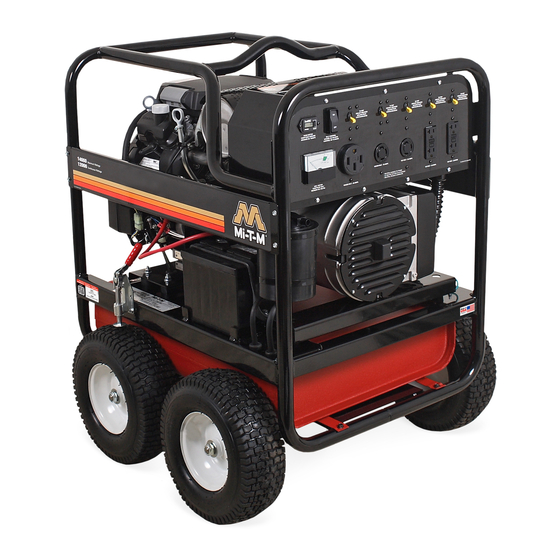

    Controls CONTROLS C -- Fuel Tank E-- Lift Hook A -- Control Panel D -- Muffler B -- Brake Operator’s Manual...

  • Page 14: Preparing The Generator

    Preparing the Generator GROUNDING INSTRUCTIONS This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. DANGER - IMPROPER CONNECTION OF THE EQUIPMENT-GROUNDING CONDUCTOR CAN RESULT IN A RISK OF ELECTROCUTION.
  • Page 15 FILLED WITH OIL AT THE FACTORY, SO BE SURE TO FILL IT BEFORE OPERATING THE ENGINE. ENGINE OIL CAPACITY MODEL # Liters Quart Ounces GEN-13000-1MSE 52.5 GEN-14000-1MHE 60.9 (Fig. 2) To fill with oil: 1. Level the engine to ensure accurate inspection and to prevent overfilling.
  • Page 16 Preparing the Generator FUELING WARNING: EXPLOSIVE FUEL! GASOLINE IS EXTREMELY FLAMMABLE AND ITS VAPORS CAN EXPLODE IF IGNITED. STORE GASOLINE ONLY IN APPROVED CONTAINERS, IN WELL VENTILATED, UNOCCUPIED BUILDINGS AND AWAY FROM SPARKS OR FLAMES. DO NOT FILL THE FUEL TANK WHILE THE ENGINE IS HOT OR RUNNING, SINCE SPILLED FUEL COULD IGNITE IF IT COMES IN CONTACT WITH HOT PARTS OR...
  • Page 17 Preparing the Generator BATTERY INSTALLATION WARNING: SHOULD ONLY BE DONE BY AN AUTHORIZED DEALER. BATTERY REPLACEMENT # #32-1077 HIGH ALTITUDE At high altitude, the standard carburetor air/fuel mixture will be too rich. Performance will decrease, and fuel consumption will increase. A very rich mixture will also foul the spark plug and cause hard starting.

  • Page 18: Operation

    Operation OPERATION NOTE: Read Operator’s Manual carefully before operating this unit. Be certain to block the wheels to prevent the unit from moving while operating. Always make sure the unit is level and properly grounded. Check engine oil before starting. 1.
  • Page 19 Operating the Generator SHUTDOWN 1. Remove all load by turning off electrical appliances and unplugging electric cords. 2. Allow engine to run at idle speed to cool for two (2) minutes. NOTE: Failure to allow the engine to cool at idle for two (2) minutes may result in damage to the generator.
  • Page 20 Operating the Generator CONTROLS HOUR METER: These generators are equipped with an hour meter that records run time for the unit. This is very useful in scheduling maintenance. See periodic maintenance chart for suggested maintenance schedule. VOLT METER: These generators are equipped with a volt meter. The volt meter is used to monitor the unit for proper voltage.
  • Page 21 Operating the Generator CONTROLS CABLE SIZE: Equipment damage can result from low voltage. Therefore, to prevent excessive voltage drop between the generator and the equipment, the cable should be of adequate gauge for the length used. The cable selection chart gives the maximum cable lengths for various gauges of wire which can adequately carry the loads shown.

  • Page 22: Troubleshooting

    If there is no spark, replace the plug. Reinstall the plug and start engine according to instructions in this manual. Consult Mi-T-M Customer Service. Generator has no output. Circuit breakers tripped. Reset circuit breakers. Inadequate cord sets or Check cord sets or extension cords extension cords.

  • Page 23: Service

    “click”. IF THE GFCI FAILS TO RESET PROPERLY, DO NOT USE EITHER OUTLET OF THE DUPLEX RECEPTACLE. Have the unit serviced by an authorized Mi-T-M Customer Service Representative immediately. 3. High vibration or severe mechanical shock loads may cause the GFCIs to trip. IF EITHER GFCI TRIPS BY ITSELF AT ANY TIME, reset it and perform test procedures 1 and 2.
  • Page 24 2950 RPM. The idle speed has been pre-set at the factory and should rarely require readjustment. We recommend that all adjustments of this nature be made by a Mi-T-M Customer Service Representative. Erratic idle operation of the engine usually indicates a need for carburetor adjustment to provide a smooth idle.
  • Page 25 ELECTRICAL CURRENT; EQUIPMENT DAMAGE OR PERSONAL INJURY MAY RESULT. GOVERNOR SPEED ADJUSTMENT SHOULD (Fig. 5) BE MADE ONLY BY A MI-T-M CUSTOMER SERVICE REPRESENTATIVE. CHECKING ENGINE OIL: Check oil level before each operation and ensure that it is maintained per Preparing the Generator; Engine Oil Capacity section.
  • Page 26 Service MAINTENANCE Air Cleaner Cover Latch AIR CLEANER: WARNING: RISK OF FIRE OR EXPLOSION. DO NOT USE GASOLINE OR LOW FLASH- Air Cleaner Cover POINT SOLVENTS TO CLEAN THE Foam Filter ELEMENT. CLEAN THE ELEMENT IN A Element Wing Nut WELL VENTILATED AREA.
  • Page 27 3. Install the spark arrester and muffler protector in the reverse order of disassembly. (Fig. 10) Spark arrestors are available from your local Mi-T-M Customer Service Representative. Other user requirements may apply, check with your Federal, State or local authorities.
  • Page 28 * Perform these operations after the first 5 hours of use, then at the recommended intervals. ** Service more frequently under dusty conditions. NOTE: These items must be performed with the proper tools. See your Mi-T-M Customer Service Representative for service, unless you have the proper equipment and mechanical proficiency.

  • Page 29: Storage

    Storage Service STORING GENERATOR SHORT TERM (1-6 months): 1. Add gasoline conditioner and stabilizer at the specified concentration. 2. Run the unit for two (2) minutes to ensure the mixed fuel is in the entire fuel system. Close the fuel valve and run the unit until it stops.

  • Page 30: Specifications

    Specifications SPECIFICATIONS ITEM SPECIFICATION GEN-14000-1MHE GEN-13000-1MSE Engine Honda Subaru Watts (AC) Rated 14,000 watts 13,000 watts Watts (AC) Max. 12,000 watts 11,500 watts Rated Voltage (AC) 120/240V 120/240V Max. Amperage 100/50 108.3/54.2 Cont. Amperage 83.3/41.7 95.8/47.9 Frequency Fuel Tank Capacity 13.2 gal.

  • Page 31: Warranty

    3. The use of other than genuine manufacturer repair parts will void warranty. 4. Parts returned, prepaid to our factory or to an Authorized Mi-T-M Service Center will be inspected and replaced free of charge if found to be defective and subject to warranty.
  • Page 32 SORE , but Mi-T-M cannot deny warranty coverage solely for the lack of receipts. -As the SORE owner, you should be aware that Mi-T-M may deny you warranty coverage if your SORE or a part has failed due to abuse, neglect, or improper maintenance or unapproved modifications.
  • Page 33 Warranty (10) Mi-T-M shall provide any documents that describe that Mi-T-M warranty procedures or policies within five working days of request by the Executive Officer. (c) WARRANTED PARTS: The repair or replacement of any warranted part otherwise eligible for warranty coverage may be excluded from such warranty coverage if Mi-T-M demonstrates that the engine has been abused, neglected, or improperly maintained, and that such abuse , neglect ,or improper maintenance was the direct cause of the need for repair or replacement of the part.
