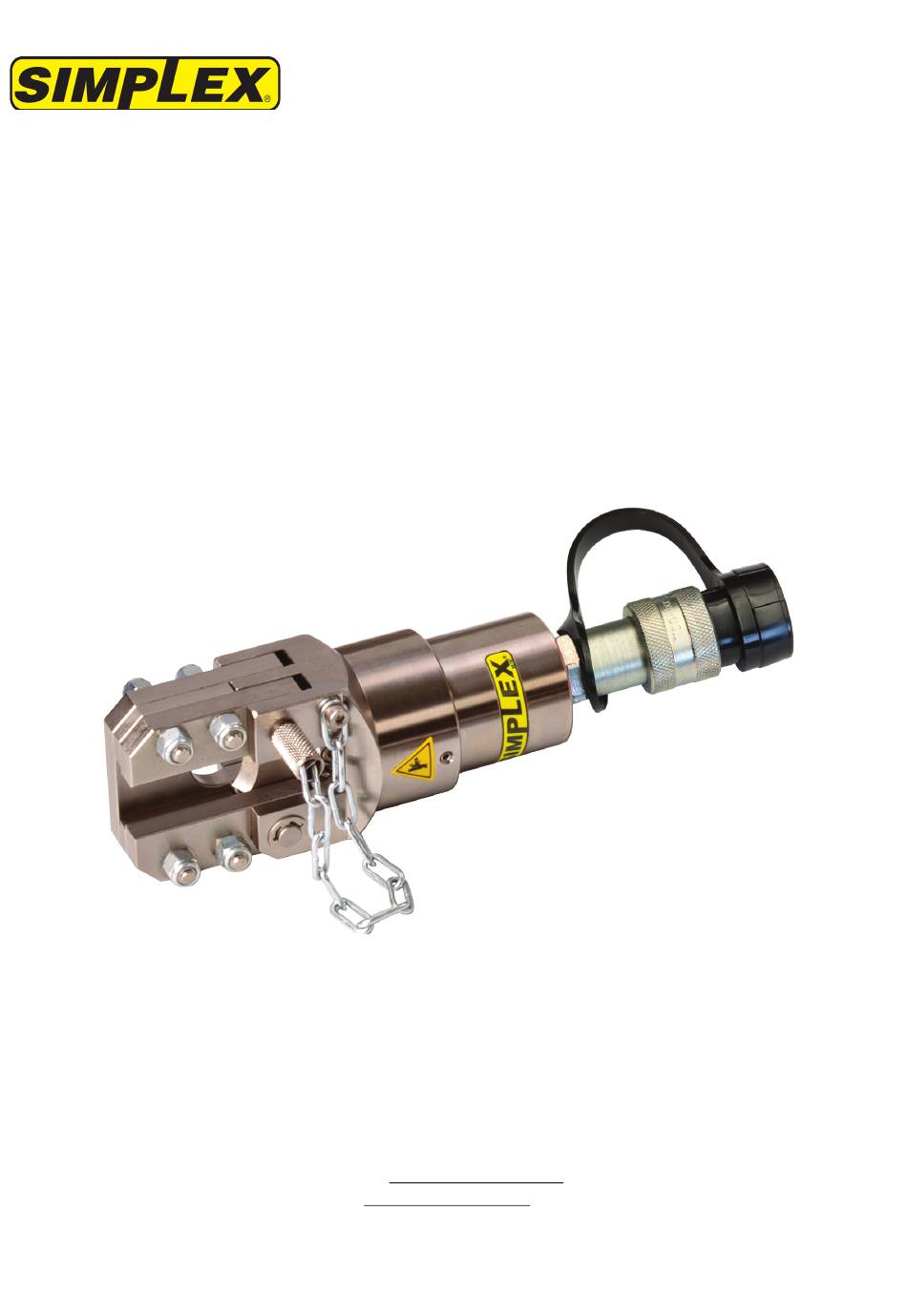

- Page 1 TD190 Rev. B 04/19 HYDRAULIC CABLE CUTTER HCCS0070 N86 W12500 Westbrook Crossing Menomonee Falls, WI 53051 USA Phone: 1-800-323-9114 Fax: 1-262-597-1127 Toll Free: (800) 323-9114 Email: sales@tksimplex.com www.tksimplex.com...
- Page 2 6. Do not modify the tool in any way. 7. Follow suggested maintenance operations periodically as recommended in this manual. 8. All repairs should be performed by a qualified technician with genuine SIMPLEX parts. For further information, contact your nearest SIMPLEX authorized service center.
- Page 3 Instruction Manual www.tksimplex.com Hydraulic Cable Cutter – HCCS0070 Keep the tool away from flames and heat, such as during welding. • Tool plunger must be advanced before performing blade replacement. After advancing plunger, disconnect power to pump (if electric, air or engine driven) to prevent accidental pump start-up and possible serious injury. Perform all other maintenance operations with all pressure relieved (0 psi/bar) and hose disconnected from tool.
- Page 4 1. After use, the tool should be cleaned. Lubricate the area where the blade comes into contact with the head. 2. Ensure all fasteners are securely fastened. 3. In the event of oil leaks or improper functioning, contact your nearest SIMPLEX authorized service center for inspection and repair.
- Page 5 Instruction Manual www.tksimplex.com Hydraulic Cable Cutter – HCCS0070 6. ASSEMBLY DIAGRAMS AND PARTS LISTS www.tksimplex.com...
- Page 6 Instruction Manual www.tksimplex.com Hydraulic Cable Cutter – HCCS0070 ITEM DESCRIPTION NUMBER COLLAR ∅28 x ∅36 x 5.7 BODY O-RING ∅44.17 x 1.78 SADDLE STANDARD WASHER FOR M4 ALLEN SCREW M4 x 6 DIN 912 8.8 11 LINK CHAIN Ø2 A=8 L=18 ELASTIC PIN DIN 1481 Ø2 x 10...
