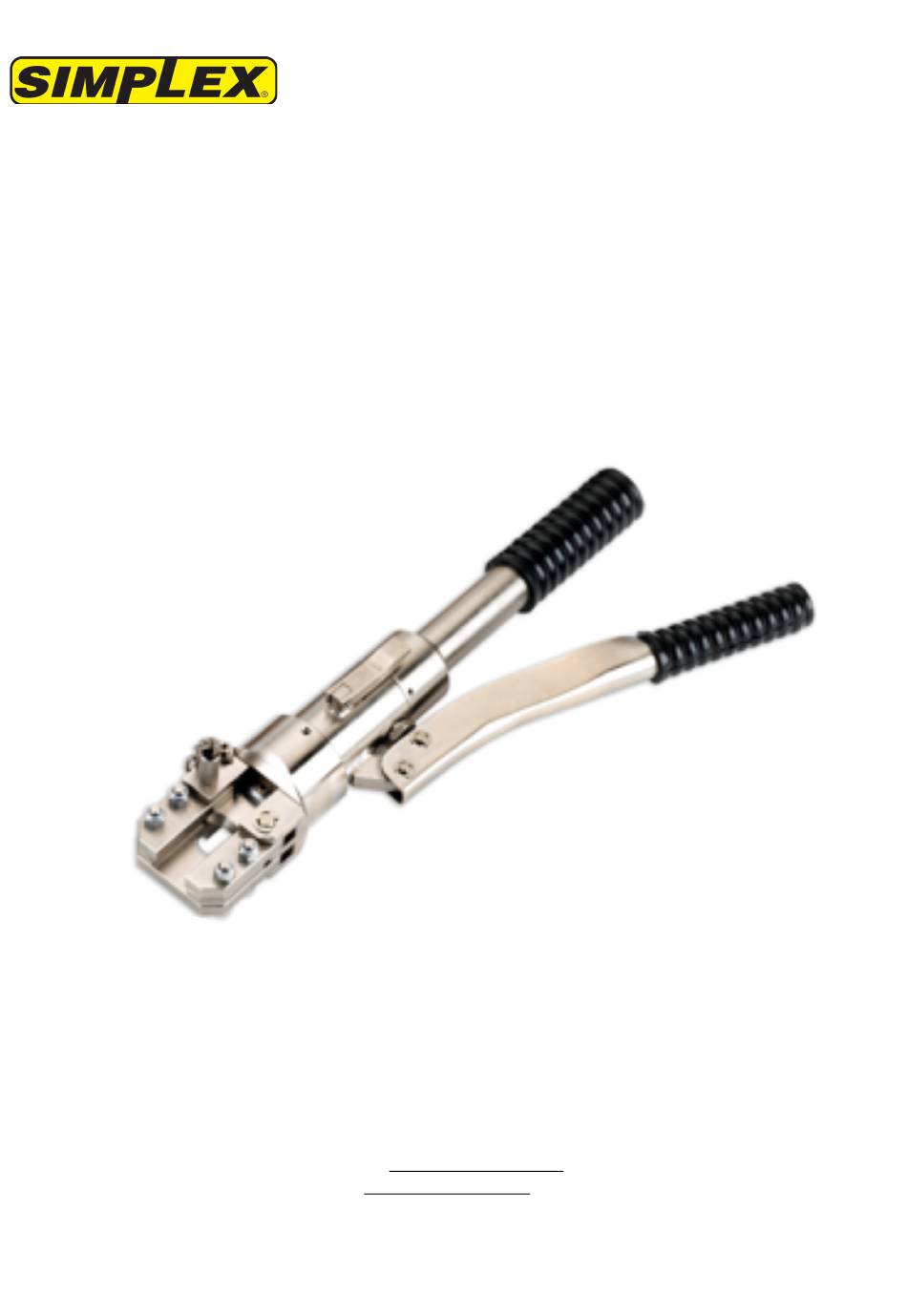

- Page 1 TD189 Rev. A 01/19 HYDRAULIC CABLE CUTTER HCCP3000 N86 W12500 Westbrook Crossing Menomonee Falls, WI 53051 USA Phone: 1-800-323-9114 Fax: 1-262-597-1127 Toll Free: (800) 323-9114 Email: sales@tksimplex.com www.tksimplex.com...
- Page 2 5. Do not modify the tool in any way. 6. Follow suggested maintenance operations periodically as recommended in this manual. 7. All repairs should be performed by a qualified technician with genuine SIMPLEX parts. For further information, contact your nearest SIMPLEX authorized service center.
- Page 3 Instruction Manual www.tksimplex.com Hydraulic Cable Cutter – HCCP3000 • Before performing inspection or maintenance procedures, press the release button to relieve pressure and return the blade to the fully retracted position (Note: it is permissible to advance the blade to allow access to the blade retaining screw during blade replacement procedures).
- Page 4 1. After use, the tool should be cleaned. Lubricate the area where the blade comes into contact with the head. 2. Ensure all fasteners are securely fastened. 3. In the event of oil leaks or improper functioning, contact your nearest SIMPLEX authorized service center for inspection and repair.
- Page 5 Instruction Manual www.tksimplex.com Hydraulic Cable Cutter – HCCP3000 6. ASSEMBLY DIAGRAMS AND PARTS LISTS www.tksimplex.com...
- Page 6 Instruction Manual www.tksimplex.com Hydraulic Cable Cutter – HCCP3000 ITEM NUMBER DESCRIPTION UPPER PLATE BASE LOWER PLATE BASE COUNTERBLADE RIGHT GUIDE BASE LEFT GUIDE BASE RIGHT INTERMEDIATE GUIDE BASE LEFT INTERMEDIATE GUIDE BASE BLADE SELF LOCKING NUT M10 DIN-985 SADDLE SHAFT...
- Page 7 Instruction Manual www.tksimplex.com Hydraulic Cable Cutter – HCCP3000 ITEM NUMBER DESCRIPTION BALL 5.5 RETENTION VALVE SCREW RETENTION SPRING ALLEN STUD M4 x 5 INDRAFT SPRING INDRAFT VALVE SCREW BRASS NETTING FILTER NETTING HOLDER COLLAR OBITURATOR SCREW TANK WASHER TANK SCREW...
