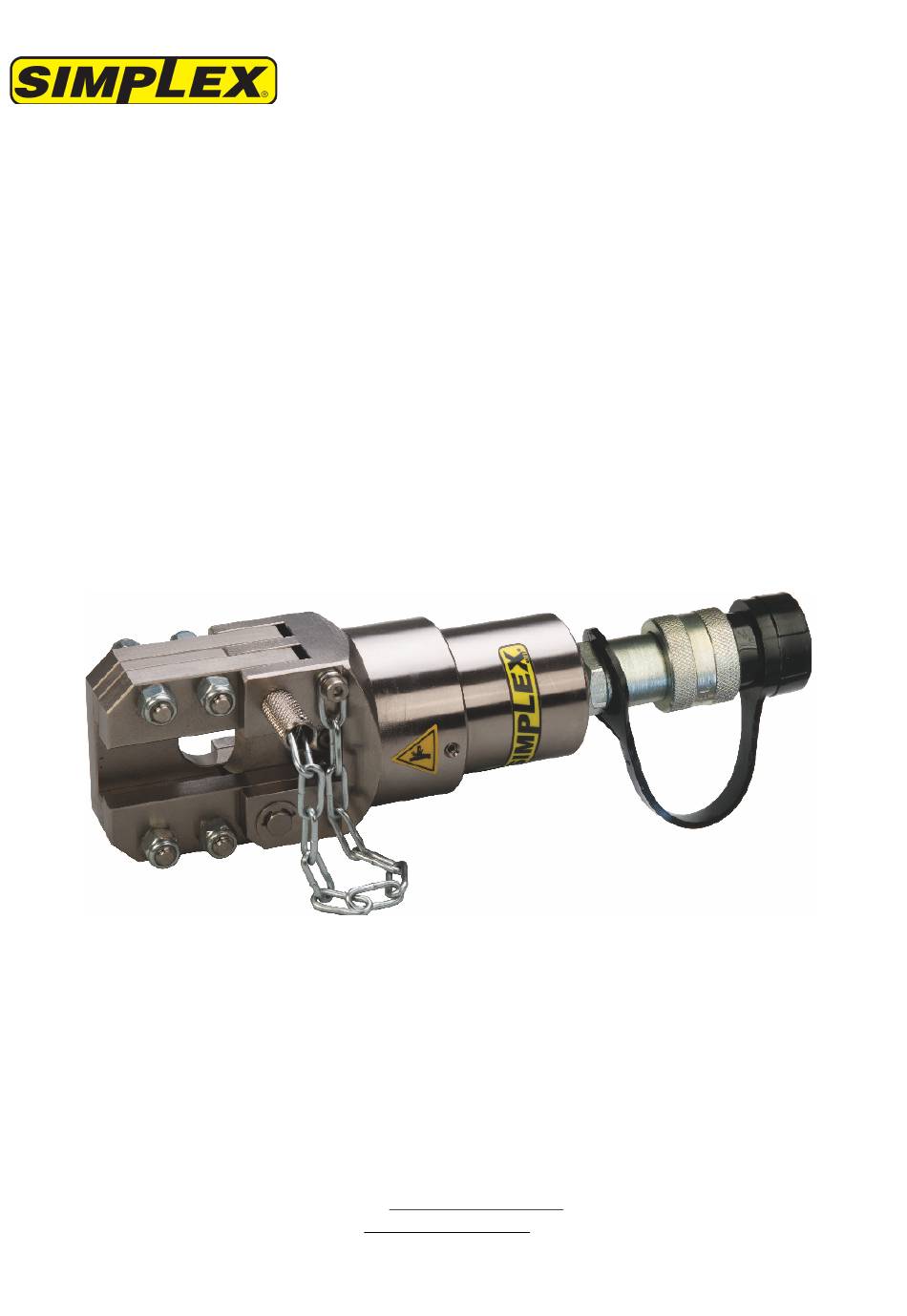

- Page 1 TD191 Rev. B 04/19 HYDRAULIC CABLE CUTTER HCCS1500 N86 W12500 Westbrook Crossing Menomonee Falls, WI 53051 USA Phone: 1-800-323-9114 Fax: 1-262-597-1127 Toll Free: (800) 323-9114 Email: sales@tksimplex.com www.tksimplex.com...
- Page 2 6. Do not modify the tool in any way. 7. Follow suggested maintenance operations periodically as recommended in this manual. 8. All repairs should be performed by a qualified technician with genuine SIMPLEX parts. For further information, contact your nearest SIMPLEX authorized service center.
- Page 3 Instruction Manual www.tksimplex.com Hydraulic Cable Cutter – HCCS1500 Keep the tool away from flames and heat, such as during welding. • Perform maintenance operations with all pressure relieved (0 psi/bar). • Do not exceed equipment ratings. Use gauges or appropriate indicator devices to be aware of the working pressure.
- Page 4 1. After use, the tool should be cleaned. Lubricate the area where the blade comes into contact with the head. 2. Ensure all fasteners are securely fastened. 3. In the event of oil leaks or improper functioning, contact your nearest SIMPLEX authorized service center for inspection and repair.
- Page 5 Instruction Manual www.tksimplex.com Hydraulic Cable Cutter – HCCS1500 6 ASSEMBLY DIAGRAMS AND PARTS LISTS www.tksimplex.com...
- Page 6 Instruction Manual www.tksimplex.com Hydraulic Cable Cutter – HCCS1500 ITEM NUMBER DESCRIPTION COLLAR ∅40 x ∅50 x 7.5 BODY O-RING ∅60.04 x 1.78 SADDLE STANDARD WASHER FOR M4 ALLEN SCREW M4x6 DIN 912 8.8 11 LINK CHAIN Ø2 A=8 L=18 ELASTIC PIN DIN 1481 Ø2 x 10...
