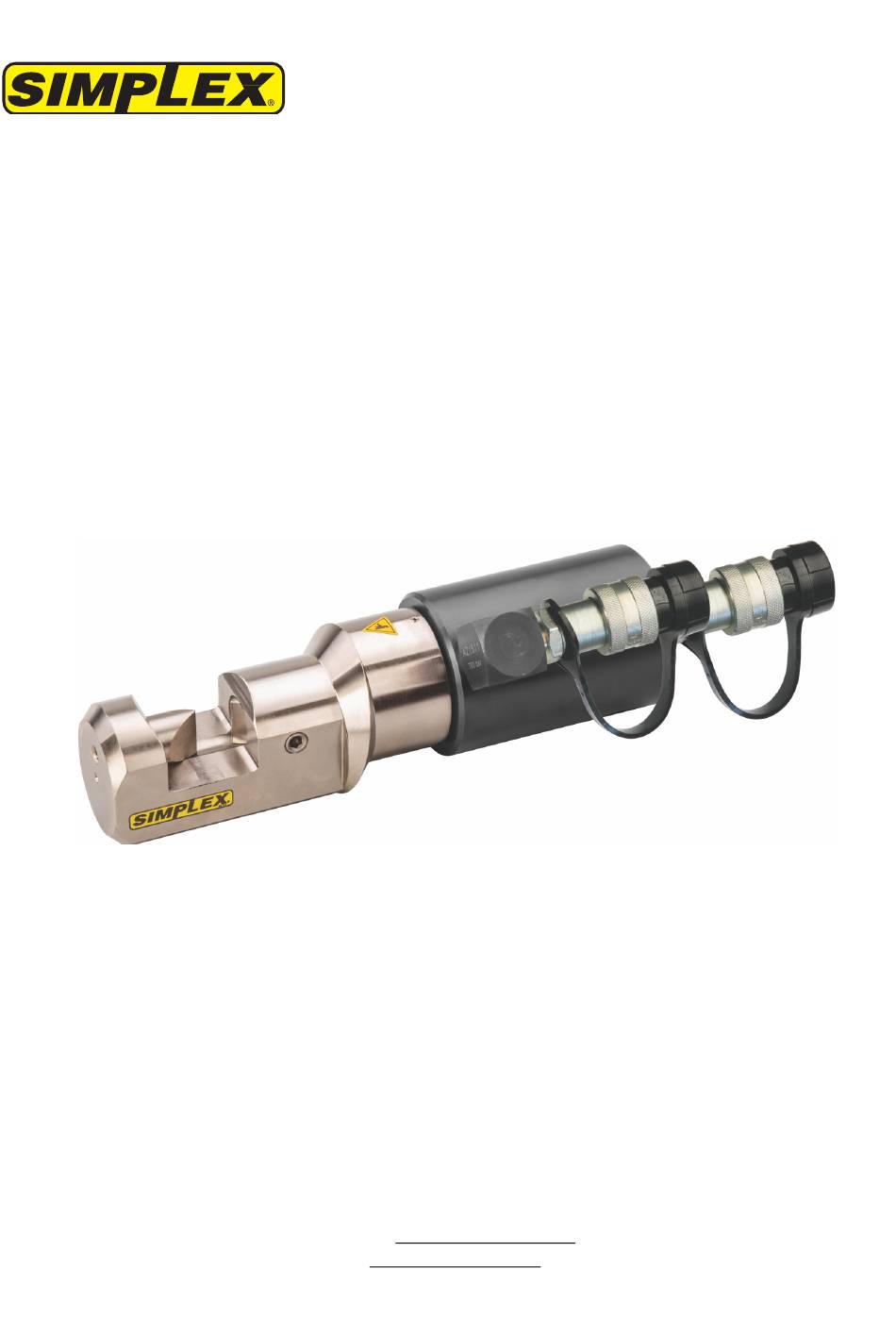

- Page 1 TD184 Rev. C 05/19 HYDRAULIC CHAIN CUTTER CCD0075 N86 W12500 Westbrook Crossing Menomonee Falls, WI 53051 USA Phone: 1-800-323-9114 Fax: 1-262-597-1127 Toll Free: (800) 323-9114 Email: sales@tksimplex.com www.tksimplex.com...
- Page 2 6. Do not modify the tool in any way. 7. Follow suggested maintenance operations periodically as recommended in this manual. 8. All repairs should be performed by a qualified technician with genuine SIMPLEX parts. For further information, contact your nearest SIMPLEX authorized service center.
- Page 3 Instruction Manual www.tksimplex.com Hydraulic Chain Cutter – CCD0075 Manufacturer’s rating is the maximum allowable limit. Good practice encourages using the tool below the manufacturer’s rating. Keep the tool away from flames and heat, such as during welding. • Perform maintenance operations with all pressure relieved (0 psi/bar).
- Page 4 Equipment operators and installers shall be responsible for ensuring that a safe working environment and safe systems of work are in place before operating the equipment. Simplex declares that this product has been tested and conforms to applicable standards and complies with all CE requirements. www.tksimplex.com...
- Page 5 Instruction Manual www.tksimplex.com Hydraulic Chain Cutter – CCD0075 6. ASSEMBLY DIAGRAMS AND PARTS LISTS www.tksimplex.com...
- Page 6 Instruction Manual www.tksimplex.com Hydraulic Chain Cutter – CCD0075 ITEM NUMBER DESCRIPTION CUTTING HEAD MOVABLE BLADE FIXED BLADE ALLEN STUD M12 x 16 ALLEN SCREW M6 x 25 DOUBLE ACTING CYLINDER (complete, assembled) † BODY † PISTON † GUIDE † O-RING ∅45.69 x 2.62 †...
