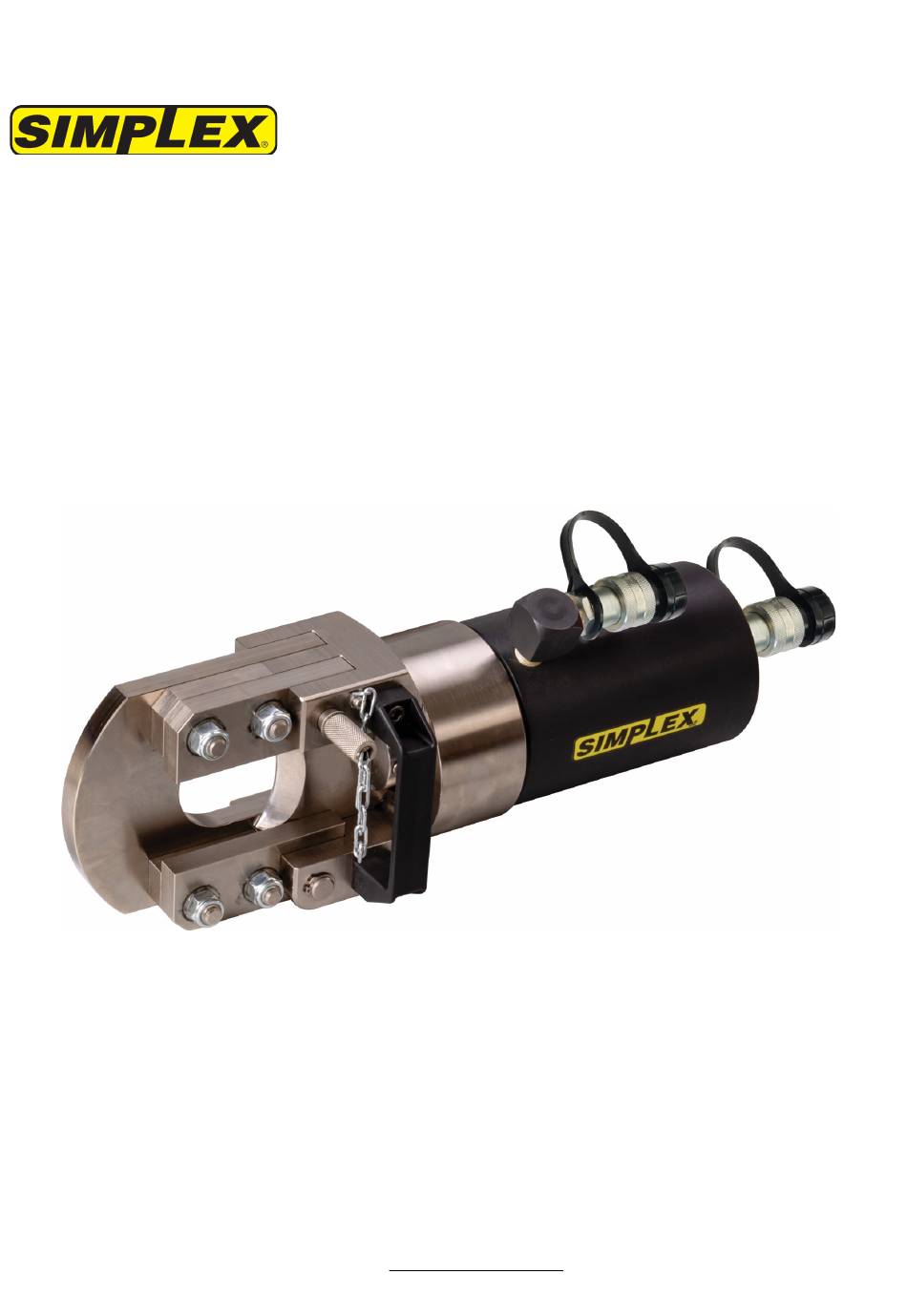

- Page 1 TD196 Rev. B 04/19 HYDRAULIC CABLE CUTTER HCCD2375 N86 W12500 Westbrook Crossing Menomonee Falls, WI 53051 USA Phone: 1-800-323-9114 Fax: 1-262-597-1127 Toll Free: (800) 323-9114 Email: sales@tksimplex.com...
- Page 2 6. Do not modify the tool in any way. 7. Follow suggested maintenance operations periodically as recommended in this manual. 8. All repairs should be performed by a qualified technician with genuine SIMPLEX parts. For further information, contact your nearest SIMPLEX authorized service center.
- Page 3 Instruction Manual www.tksimplex.com Hydraulic Cable Cutter – HCCD2375 Manufacturer’s rating is the maximum allowable limit. Good practice encourages using only 80% of the manufacturer rating. Keep the tool away from flames and heat, such as during welding. • Perform maintenance operations with all pressure relieved (0 psi/bar).
- Page 4 1. After use, the tool should be cleaned. Lubricate the area where the blade comes into contact with the head. 2. Ensure all fasteners are securely fastened. 3. In the event of oil leaks or improper functioning contact your nearest SIMPLEX authorized service center for inspection and repair.
- Page 5 Instruction Manual www.tksimplex.com Hydraulic Cable Cutter – HCCD2375 5. ASSEMBLY DIAGRAMS AND PARTS LISTS www.tksimplex.com...
- Page 6 Instruction Manual www.tksimplex.com Hydraulic Cable Cutter – HCCD2375 ITEM NUMBER DESCRIPTION SADDLE ASSEMBLY (complete, assembled) CYLINDER (complete, assembled) † BALL ∅ 5.5 † ALLEN SCREW M4 x 6 DIN-912 8.8 † ELASTIC PIN DIN 1481 Ø3 x 14 † RETAINING PIN †...
