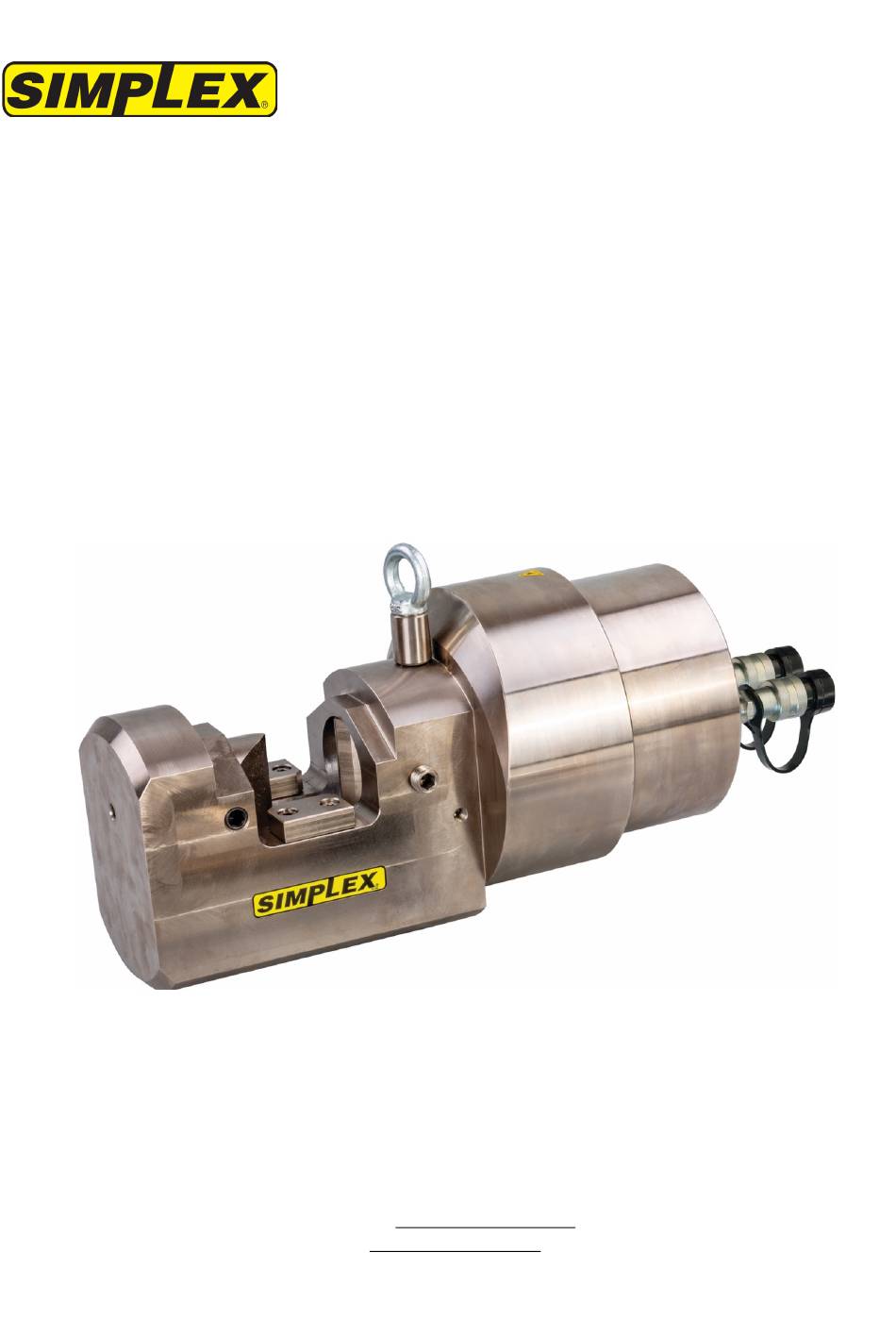

- Page 1 TD186 Rev. C 04/19 HYDRAULIC CHAIN CUTTER CCD0200 N86 W12500 Westbrook Crossing Menomonee Falls, WI 53051 USA Phone: 1-800-323-9114 Fax: 1-262-597-1127 Toll Free: (800) 323-9114 Email: sales@tksimplex.com www.tksimplex.com...
-
Page 2: Safety Requirements
6. Do not modify the tool in any way. 7. Follow suggested maintenance operations periodically as recommended in this manual. 8. All repairs should be performed by a qualified technician with genuine SIMPLEX parts. For further information, contact your nearest SIMPLEX authorized service center. -
Page 3: Technical Data
Instruction Manual www.tksimplex.com Hydraulic Chain Cutter – CCD0200 Manufacturer’s rating is the maximum allowable limit. Good practice encourages using the tool below the manufacturer’s rating. Keep the tool away from flames and heat, such as during welding. • Perform maintenance operations with all pressure relieved (0 psi/bar). -
Page 4: Operation
Instruction Manual www.tksimplex.com Hydraulic Chain Cutter – CCD0200 3. OPERATION 1. Assemble the complete system, and make sure the fitting of pump, hoses, couplers and tool is leak free and correct. This is a double acting tool, so ensure that both couplers are connected. -
Page 5: Additional Information
Equipment operators and installers shall be responsible for ensuring that a safe working environment and safe systems of work are in place before operating the equipment. Simplex declares that this product has been tested and conforms to applicable standards and complies with all CE requirements. www.tksimplex.com... -
Page 6: Assembly Diagrams And Parts Lists
Instruction Manual www.tksimplex.com Hydraulic Chain Cutter – CCD0200 6. ASSEMBLY DIAGRAMS AND PARTS LISTS 265.50 [10.5] www.tksimplex.com... - Page 7 Instruction Manual www.tksimplex.com Hydraulic Chain Cutter – CCD0200 www.tksimplex.com...
- Page 8 Instruction Manual www.tksimplex.com Hydraulic Chain Cutter – CCD0200 ITEM NUMBER DESCRIPTION CUTTING HEAD BODY PISTON INNER TUBE STUD M10 x 10 WITH HOLE MOVABLE BLADE ALLEN STUD DIN-913 M10 x 60 ALLEN SCREW M8 x 10 DIN915 ALLEN STUD DIN-913 M18 x 16...
