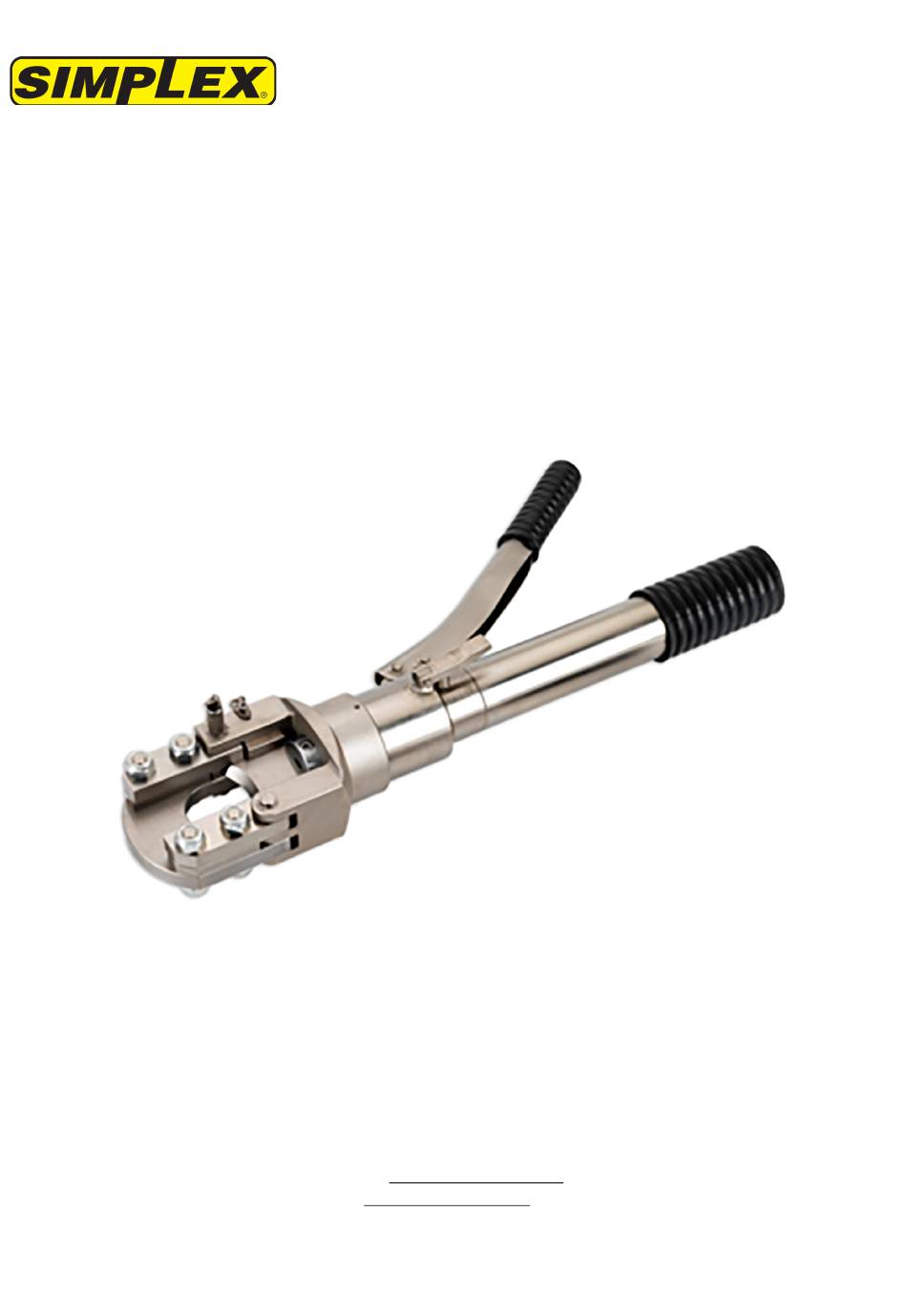

- Page 1 TD188 Rev. A 01/19 HYDRAULIC CABLE CUTTER HCCP1500 N86 W12500 Westbrook Crossing Menomonee Falls, WI 53051 USA Phone: 1-800-323-9114 Fax: 1-262-597-1127 Toll Free: (800) 323-9114 Email: sales@tksimplex.com www.tksimplex.com...
- Page 2 5. Do not modify the tool in any way. 6. Follow suggested maintenance operations periodically as recommended in this manual. 7. All repairs should be performed by a qualified technician with genuine SIMPLEX parts. For further information, contact your nearest SIMPLEX authorized service center.
- Page 3 Instruction Manual www.tksimplex.com Hydraulic Cable Cutter – HCCP1500 Manufacturer’s rating is the maximum allowable limit. Good practice encourages using only 80% of the manufacturer’s rating. Keep the tool away from flames and heat, such as during welding. • Before performing inspection or maintenance procedures, press the release button to relieve pressure and return the blade to the fully retracted position.
- Page 4 1. After use, the tool should be cleaned. Lubricate the area where the blade comes into contact with the head. 2. Ensure all fasteners are securely fastened. 3. In the event of oil leaks or improper functioning, contact your nearest SIMPLEX authorized service center for inspection and repair.
- Page 5 Instruction Manual www.tksimplex.com Hydraulic Cable Cutter – HCCP1500 6. ASSEMBLY DIAGRAMS AND PARTS LISTS www.tksimplex.com...
- Page 6 Instruction Manual www.tksimplex.com Hydraulic Cable Cutter – HCCP1500 ITEM NUMBER DESCRIPTION HANDLE LEVER O-RING 29.74 x 3.53 COLLAR 8 x 14 x 7 INJECTOR GUIDE NUT O-RING 8.73 x 1.78 PISTON BALL 5.5 COLLAR 40 x 50 x 7.5 BODY O-RING 60.04 x 1.78...
- Page 7 Instruction Manual www.tksimplex.com Hydraulic Cable Cutter – HCCP1500 ITEM NUMBER DESCRIPTION COPPER WASHER 14 x 10 x 1.5 SECURITY RING FOR Ø6 DIN 6799 RETAINING PIN SECURITY RING FOR Ø3.2 DIN 6799 SPRING BALL 4 COUNTERBLADE SADDLE PIN SECURITY RING FOR Ø10 DIN-471...
