KISANKRAFT KK-IC-410P User Manual

Agricultural inter-cultivator

Advertisement

Quick Links

KisanKraft
Product
Brand
Model
W
ARRANTY
P
ERIOD
Dealer's
Invoice Date
Buyer's Info (Name, Address, Phone, etc.):
Buyer's Sign
What is covered: KisanKraft Limited and its manufacturers warrant this product to be free from defects
in material or workmanship. All parts defective in material and workmanship are covered.
This warranty will only cover defects arising under normal usage.
This warranty is limited to repair or replacement by KisanKraft Limited or its manufacturers of such parts
as appear to KisanKraft or its manufacturers, upon inspection, to be defective in material and/or
workmanship. KisanKraft or its manufacturers make no warranty with respect to items not manufactured
or sold by them. No onsite warranty is provided by KisanKraft Limited or its manufacturers. Defective
items must be brought/sent to our Authorized Dealer or KisanKraft Limited's office for service.
What is not covered: The warranty shall become null and void and neither KisanKraft Limited nor any
of its manufacturers, nor its authorized dealers assume any responsibility, if the failure was caused by
the following:
(1) Operation of product with incorrect fuel or lubricants, (2) Incorrect usage of machine or misuse, (3)
Lack of maintenance, (4) Negligence, (5) Accident or physical damage, (6) Repairs made by
unauthorized parties and/or with unauthorized parts, (7) Improper set up, adjustments, tampering or
altered products (8) Any modification to the product what-so-ever.
Important: (1) Normal maintenance and adjustments to the product is the responsibility of the customer.
(2) Normal wear and tear are not covered under warranty. (3) Rubber/plastic parts and consumables
such as blades, clutch and clutch-bell, sparkplugs, nylon line, air-filters, fuel-filters, oil seals and gaskets
etc. are not covered under the warranty. (4) Electrical Motor, Electrical Parts, Battery Etc. are not
covered under the warranty.
Incidental / Consequential Loss: KisanKraft Limited or its manufacturers will not be liable for general
damages, including bodily injuries, or for incidental or consequential damages including, but not limited
to, loss of use, loss of profits, loss of production, expense of substitute equipment or other commercial
loss or damage.
Limitation of Liability: This limited warranty is in lieu of all other express warranties, obligations, or
liabilities. Any implied warranties, obligations, or liabilities, including, but not limited to, any implied
warranty of merchantability shall be limited in duration to the applicable warranty period. Any action for
: www.kisankraft.com
®
Agricultural
Inter-Cultivator
KisanKraft
 KK-IC-410P
6
MONTHS
: info@kisankraft.com

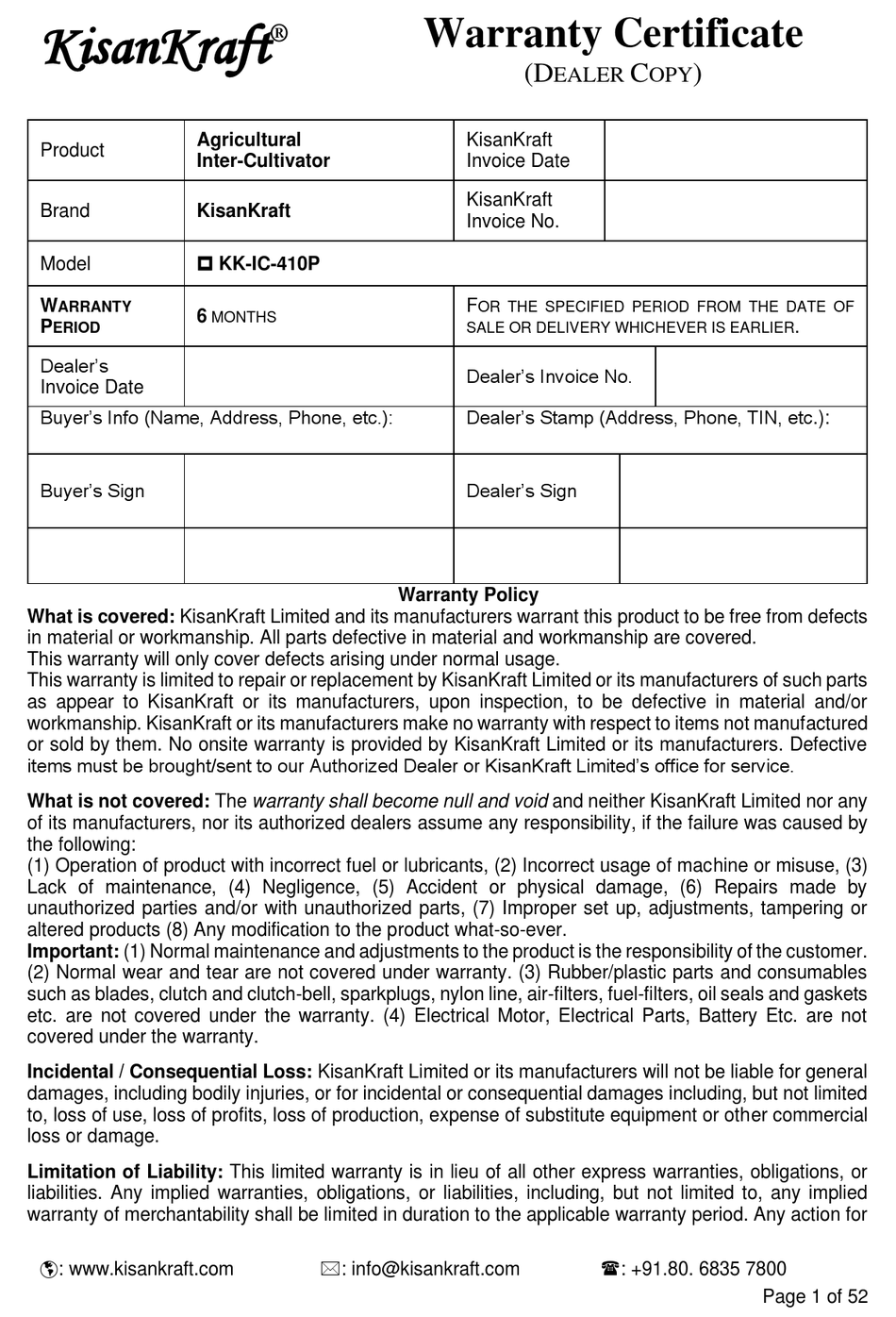

Warranty Certificate
(D
EALER
KisanKraft
Invoice Date
KisanKraft
Invoice No.
F
OR THE SPECIFIED PERIOD FROM THE DATE OF
SALE OR DELIVERY WHICHEVER IS EARLIER
Dealer's Invoice No.
Dealer's Stamp (Address, Phone, TIN, etc.):
Dealer's Sign
Warranty Policy
C
)
OPY
: +91.80. 6835 7800
Page 1 of 52
.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KK-IC-410P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for KISANKRAFT KK-IC-410P

  • Page 1 This warranty will only cover defects arising under normal usage. This warranty is limited to repair or replacement by KisanKraft Limited or its manufacturers of such parts as appear to KisanKraft or its manufacturers, upon inspection, to be defective in material and/or workmanship.
  • Page 2 This purchase is not contingent upon a product demonstration. The purchaser shall satisfy himself with the product, including any product demonstration or verification of any function, before buying. KisanKraft Limited or its authorized dealers, including online sellers, shall not be liable to give any on-site demonstration after purchase of any of the product.
  • Page 3 KisanKraft ® AGRICULTURAL INTER-CULTIVATOR KK-IC-410P User Manual Note: Pictures shown in this manual are only for illustration purposes. KisanKraft Limited Warehouse: 818 3B1 to 818 3B18, Podalakur - Sangam Road, Prabagiripatnam, Podalakur, Nellore - 524345, Andhra Pradesh, INDIA Head Office: Sri Huchhanna Tower, #4,1...
  • Page 4: Table Of Contents

    KisanKraft ® AGRICULTURAL INTER-CULTIVATOR KK-IC-410P CONTENTS BEFORE GETTING STARTED ................7 SAFETY INFORMATION ................7 OVERVIEW ....................9 ASSEMBLY ....................11 OPERATION ....................15 CONNECTING THE ATTACHMENTS ............16 IMPORTANT POINTS IN ENGINE OPERATION ..........18 MAINTENANCE & SERVICE .................21 TROUBLESHOOTING ..................27 TECHNICAL SPECIFICATION ................32 PART DIAGRAM..................33 : info@kisankraft.com...
  • Page 5 This warranty will only cover defects arising under normal usage. This warranty is limited to repair or replacement by KisanKraft Limited or its manufacturers of such parts as appear to KisanKraft or its manufacturers, upon inspection, to be defective in material and/or workmanship.
  • Page 6 Please note that the decision of KisanKraft Limited with respect to any warranty claim is final. After-sales Service (Including Warranty): KisanKraft Limited does not sell directly to consumers.
  • Page 7: Before Getting Started

    Before shifting the gear, you must disconnect the clutch. When holding the backshift bar, the gear lever must be put in the neutral position. This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp .
  • Page 8 Do not work on the sharp slope. s). When using the cultivator on slope, be careful to not let cultivator fall. This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp .
  • Page 9: Overview

    10. Diesel engine Fender 11. Bumper Drag bar This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp . KisanKraft Limited : info@kisankraft.com : +91.80. 6835 7800 : www.kisankraft.com...
  • Page 10 3000r/m. When it is attached with relative machine tools, auxiliary tools, you can carry out such multifunctional work: bailing, sprinkling, chemical spraying, and threshing, reaping, and generating power. This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp . KisanKraft Limited : info@kisankraft.com...
  • Page 11: Assembly

    Inter-Cultivator. Then install protection panel of both sides and paddy field protection panel of both sides. Installation and adjustment of cables This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp . KisanKraft Limited : info@kisankraft.com...
  • Page 12 Throttle cable adjustment (Picture given below) This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp . KisanKraft Limited : info@kisankraft.com...
  • Page 13 Turn lever to the neutral position Refueling: This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp . KisanKraft Limited : info@kisankraft.com...
  • Page 14 Choose engine oil according to the working environment Attention: Fuel level should not exceed above the mark. This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp . KisanKraft Limited : info@kisankraft.com...
  • Page 15: Operation

    When it necessary to stop working, the procedure should be done according to the engine instruction. (Attention: This work is usually done on the smooth ground.) This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp .
  • Page 16: Connecting The Attachments

    Shifting position Connecting position This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp . KisanKraft Limited : info@kisankraft.com...
  • Page 17 • Frequently wash the sponge in the air filter and change oil more often. This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp . KisanKraft Limited : info@kisankraft.com...
  • Page 18: Important Points In Engine Operation

    The belt pulley of the engine or that of the powered equipment must be adjusted. Pay attention to the following points when the engine is running: This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp . KisanKraft Limited : info@kisankraft.com...
  • Page 19 • Don't overfill the tank with fuel, but also never let fuel tank run out empty This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp . KisanKraft Limited : info@kisankraft.com...
  • Page 20 Do not operate the engine in a confined space where dangerous carbon monoxide fumes can collect. This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp . KisanKraft Limited : info@kisankraft.com...
  • Page 21: Maintenance & Service

    If the accessories are severely fretted, they must be changed or repaired. Ask experts to check the friction plate and clutch. This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp .
  • Page 22 √ Gears and bearings Note: This mark” √” indicates the maintenance contents This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp . KisanKraft Limited : info@kisankraft.com : +91.80.
  • Page 23 5.4 Store cultivator in the dry, safe place where there is enough aeration. 5.5 Properly keep the attaching tools, certificates of conformity and instruction. This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp .
  • Page 24 ~0.15; or increase gasket meanwhile, ensure clearance of gear Ⅰ is 0.05~0.15. This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp . KisanKraft Limited : info@kisankraft.com : +91.80.
  • Page 25 Never move clutch randomly in case of destroying the clutch and other parts. This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp .
  • Page 26 Tighten the nut to let terminal fangs meet This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp . KisanKraft Limited : info@kisankraft.com : +91.80.
  • Page 27: Troubleshooting

    If there is not spark, replace the plug. This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp . KisanKraft Limited : info@kisankraft.com : +91.80.
  • Page 28 Skid Adjust the cable Clutch cable is not fitting well properly This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp . KisanKraft Limited : info@kisankraft.com : +91.80. 6835 7800 : www.kisankraft.com...
  • Page 29 Change the O-rings leak Bolt is loose Tighten the bolt This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp . KisanKraft Limited : info@kisankraft.com : +91.80. 6835 7800 : www.kisankraft.com...
  • Page 30 Case oil leakage Case has some small hidden hole Welding or paint it This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp . KisanKraft Limited : info@kisankraft.com : +91.80.
  • Page 31 Try to start the engine according to the instructions given above. If the engine still does not start, take the Inter-cultivator to an authorized dealer. This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp .
  • Page 32: Technical Specification

    Note: FREE HEADLIGHT included. Specifications are subject to change without prior notice This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp . KisanKraft Limited : info@kisankraft.com : +91.80.
  • Page 33: Part Diagram

    BOLT-M10×80 Flanged STUD,M6-8×123 E1-9 E1-10 Cylinder head Assy This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp . KisanKraft Limited : info@kisankraft.com : +91.80. 6835 7800 : www.kisankraft.com...
  • Page 34 E2-2 E2-3 Sway bar E2-4 Split Clip This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp . KisanKraft Limited : info@kisankraft.com : +91.80. 6835 7800 : www.kisankraft.com...
  • Page 35 Washer Drain bolt12x18x2 E2-15 TUBBER GASKET E2-16 Oil Seal 30x46x8 This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp . KisanKraft Limited : info@kisankraft.com : +91.80. 6835 7800 : www.kisankraft.com...
  • Page 36 E3-9 Ball Bearing 6206 E3-10 Centrifugal gear Parts This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp . KisanKraft Limited : info@kisankraft.com : +91.80. 6835 7800 : www.kisankraft.com...
  • Page 37 Piston Ring Assy E4-9 E4-10 E4-11 E4-12 This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp . KisanKraft Limited : info@kisankraft.com : +91.80. 6835 7800 : www.kisankraft.com...
  • Page 38 E5-9 Spring seat Intake Valve E5-10 Cap Exhaust Valve This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp . KisanKraft Limited : info@kisankraft.com : +91.80. 6835 7800 : www.kisankraft.com...
  • Page 39 E5-17 STAR ASSY KK-No KK-Name E6-1 This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp . KisanKraft Limited : info@kisankraft.com : +91.80. 6835 7800 : www.kisankraft.com...
  • Page 40 E6-16 Starter handle E6-17 E6-18 Bolt M6x10 Hex This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp . KisanKraft Limited : info@kisankraft.com : +91.80. 6835 7800 : www.kisankraft.com...
  • Page 41 E7-6 Sponge1- Air cleaner E7-7 Sponge 2- Air cleaner This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp . KisanKraft Limited : info@kisankraft.com : +91.80. 6835 7800 : www.kisankraft.com...
  • Page 42 KK-Name E8-1 Carburettor Assy E8-2 Cap-measure Hole This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp . KisanKraft Limited : info@kisankraft.com : +91.80. 6835 7800 : www.kisankraft.com...
  • Page 43 Gasket-Fuel cup bolt E8-18 Bolt-Fuel cup E8-19 Drain Plug-Carburettor This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp . KisanKraft Limited : info@kisankraft.com : +91.80. 6835 7800 : www.kisankraft.com...
  • Page 44 Fine Adjustment Spring E9-8 Return Spring E9-9 Screw M4x6 star This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp . KisanKraft Limited : info@kisankraft.com : +91.80. 6835 7800 : www.kisankraft.com...
  • Page 45 E10-3 Spark Plug Cap E10-4 Bolt M6x22 Flanged Hex This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp . KisanKraft Limited : info@kisankraft.com : +91.80. 6835 7800 : www.kisankraft.com...
  • Page 46 Muffler Assy E11-2 Gasket Muffler E11-3 Muffler Pipe This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp . KisanKraft Limited : info@kisankraft.com : +91.80. 6835 7800 : www.kisankraft.com...
  • Page 47 E12-9 Fuel Tube E12-10 Bolt M6x30 Flanged Hex This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp . KisanKraft Limited : info@kisankraft.com : +91.80. 6835 7800 : www.kisankraft.com...
  • Page 48 E13-3 Gasket carburettor E13-4 E13-5 Steel gasket This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp . KisanKraft Limited : info@kisankraft.com : +91.80. 6835 7800 : www.kisankraft.com...
  • Page 49 KisanKraft ® PRODUCT RANGE KisanKraft has a large range of products to serve the farmers. A list of our products is given below: Brush Cutters and Accessories Cultivators and Accessories Brush Cutter/Power Weeder Petrol and Diesel Backpack Brush Cutter Sprayers and Accessories...
  • Page 50 KisanKraft ® Wide Range of Products for Every Need For more information give MISSED CALL: 07676065555 Many of our products have BIS: ISI certification. : info@kisankraft.com : +91.80. 6835 7800 : www.kisankraft.com Page 50 of 52...
  • Page 51 This warranty will only cover defects arising under normal usage. This warranty is limited to repair or replacement by KisanKraft Limited or its manufacturers of such parts as appear to KisanKraft or its manufacturers, upon inspection, to be defective in material and/or workmanship.
  • Page 52 Please note that the decision of KisanKraft Limited with respect to any warranty claim is final. After-sales Service (Including Warranty): KisanKraft Limited does not sell directly to consumers.

Table of Contents
