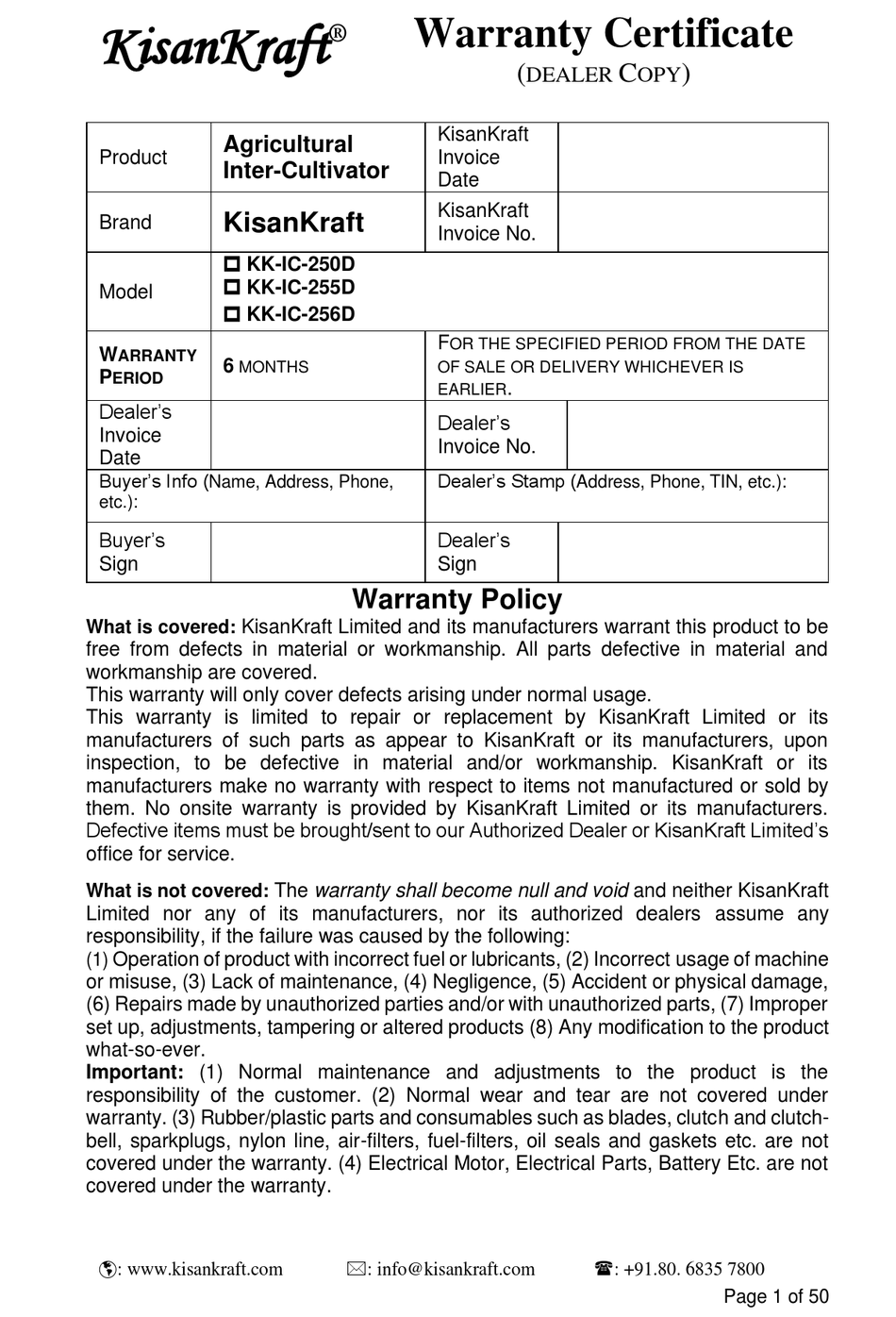

KisanKraft Limited and its manufacturers warrant this product to be
What is covered:
free from defects in material or workmanship. All parts defective in material and
workmanship are covered.
This warranty will only cover defects arising under normal usage.
This warranty is limited to repair or replacement by KisanKraft Limited or its
manufacturers of such parts as appear to KisanKraft or its manufacturers, upon
inspection, to be defective in material and/or workmanship. KisanKraft or its
manufacturers make no warranty with respect to items not manufactured or sold by
them. No onsite warranty is provided by KisanKraft Limited or its manufacturers.
Defective items must be brought/sent to our Authorized Dealer or KisanKraft Limited's
office for service.
What is not covered:
Limited nor any of its manufacturers, nor its authorized dealers assume any
responsibility, if the failure was caused by the following:
Operation of product with incorrect fuel or lubricants, (2) Incorrect usage of machine
(1)
or misuse, (3) Lack of maintenance, (4) Negligence, (5) Accident or physical damage,
(6) Repairs made by unauthorized parties and/or with unauthorized parts, (7) Improper
set up, adjustments, tampering or altered products (8) Any modification to the product
what-so-ever.
Important: (1) Normal maintenance and adjustments to the product is the
responsibility of the customer. (2) Normal wear and tear are not covered under
warranty. (3) Rubber/plastic parts and consumables such as blades, clutch and clutch-
bell, sparkplugs, nylon line, air-filters, fuel-filters, oil seals and gaskets etc. are not
covered under the warranty. (4) Electrical Motor, Electrical Parts, Battery Etc. are not
covered under the warranty.
: www.kisankraft.com
Warranty Certificate
®
KisanKraft
Invoice
Date
KisanKraft
Invoice No.
F
OF SALE OR DELIVERY WHICHEVER IS
EARLIER
Dealer's
Invoice No.
Dealer's Stamp (
Dealer's
Sign
Warranty Policy
The warranty shall become null and void and neither KisanKraft
: info@kisankraft.com
(
C
DEALER
OR THE SPECIFIED PERIOD FROM THE DATE
.
Address, Phone, TIN, etc.):
: +91.80. 6835 7800
)
OPY
Page 1 of 50
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for KISANKRAFT KK-IC-250D
Summary of Contents for KISANKRAFT KK-IC-250D
- Page 1 This warranty will only cover defects arising under normal usage. This warranty is limited to repair or replacement by KisanKraft Limited or its manufacturers of such parts as appear to KisanKraft or its manufacturers, upon inspection, to be defective in material and/or workmanship. KisanKraft or its manufacturers make no warranty with respect to items not manufactured or sold by them.
- Page 2 Modifications of Warranty: No agent, representative, dealer, or employee of KisanKraft Limited or any of its manufacturers has the authority to increase or alter the obligations of this warranty. The warranty cannot be assigned and shall not Assignment / Transfer of warranty: transfer if the product is resold by the first buyer.
- Page 3 KisanKraft Agricultural Inter-Cultivator ® KK-IC-250D / 255D / 256D User Manual KK-IC-250D KK-IC-256D KisanKraft Limited Warehouse: 818 3B1 to 818 3B18, Podalakur - Sangam Road, Prabagiripatnam, Podalakur, Nellore - 524345, Andhra Pradesh, INDIA Head Office: Sri Huchhanna Tower, #4,1 Main,7-A Cross, Maruthi Layout, Dasarahalli, HAF Post, Hebbal, Bangalore 560024, Karnataka, INDIA ♦...
-
Page 4: Table Of Contents
Methods of Starting the Agricultural Intercultivator ............19 Stopping the Engine ....................21 Maintenance ....................... 21 Technical Specifications ..................... 32 Troubleshooting ......................33 Parts Diagram & List-KK-IC-250D/256D/255D ............36 : info@kisankraft.com : +91.80. 6835 7800 : www.kisankraft.com Page 4 of 50... - Page 5 This warranty will only cover defects arising under normal usage. This warranty is limited to repair or replacement by KisanKraft Limited or its manufacturers of such parts as appear to KisanKraft or its manufacturers, upon inspection, to be defective in material and/or workmanship. KisanKraft or its manufacturers make no warranty with respect to items not manufactured or sold by them.
- Page 6 (invoice/receipt). KisanKraft Limited, its manufacturers and its dealers reserve the right to inspect the claimed defective part(s) to determine if the malfunction is the result of a defect covered by this warranty. Please note that the decision of KisanKraft Limited with respect to any warranty claim is final.
-
Page 7: Before Getting Started
KisanKraft AGRICULTURAL INTER-CULTIVATOR ® KK-IC-250D,256D,215D Before Getting Started Thank you for purchasing our Intercultivator. • This manual contains information on operation and maintenance of the Inter- cultivator, which is based on the most recent product information available at the time of approval for printing. We reserve the right to make amendments without prior notice and without incurring any obligation for sequences. - Page 8 KisanKraft AGRICULTURAL INTER-CULTIVATOR ® KK-IC-250D,256D,215D Keep working area without people (other than operator), especially children and pets. Preparation: Check working area and move away all the sundries. Disengage all the clutches and place gear to neutral position before starting engine.
-
Page 9: Product Overview

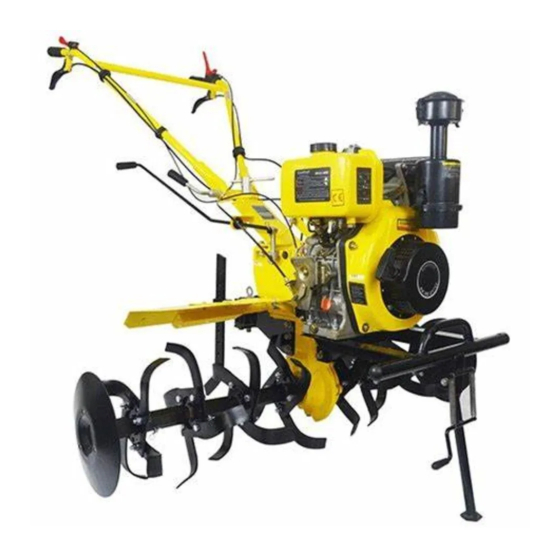

KisanKraft AGRICULTURAL INTER-CULTIVATOR ® KK-IC-250D,256D,215D Product Overview ①. ⑤ Resistance rod Wheel ②. ⑥ Gear box Walking case ③. ⑦ Tow bar Engine ④. ⑧ Dust fender Handle bar : info@kisankraft.com : +91.80. 6835 7800 : www.kisankraft.com Page 9 of 50... -
Page 10: Assembly
KisanKraft AGRICULTURAL INTER-CULTIVATOR ® KK-IC-250D,256D,215D Assembly 1. Assembling After Packing 1.1 Fix the machine, attach the wheels on both side of machine and use pin to fix wheels. 1.2 Handle assembly: Match gear plate on handle with gear plate on handle seat, and then adjust straight position of handle, and then use long bolt, spring washer, and locked grip to lock handle. - Page 11 KisanKraft AGRICULTURAL INTER-CULTIVATOR ® KK-IC-250D,256D,215D Put cable head into clutch cable seat of transmission box, and make sure that cable head is in the big hole. Anticlockwise turn reverse fork axle, and put cable through narrow slot, and make sure head into big hole of seat.
- Page 12 KisanKraft AGRICULTURAL INTER-CULTIVATOR ® KK-IC-250D,256D,215D KK-IC-255D : info@kisankraft.com : +91.80. 6835 7800 : www.kisankraft.com Page 12 of 50...
-
Page 13: Operation And Use Of Inter-Cultivator
KisanKraft AGRICULTURAL INTER-CULTIVATOR ® KK-IC-250D,256D,215D Operation and use of Inter-cultivator Ⅰ. Up packing assembly (Picture4) Fix the body of Inter-cultivator install running wheels on both sides of hexagonal shaft and fix the wheels with 2 bolts M8×55, 2 nuts M8. - Page 14 KisanKraft AGRICULTURAL INTER-CULTIVATOR ® KK-IC-250D,256D,215D Unlock nuts on the screw rod. Instantaneously rotate the screw rod to show the shortest part of the handlebar. Thread the cable head into clutch plug behind the gear box assy. and make sure the head is in the big hole of the plug.
-
Page 15: Operation Check
KisanKraft AGRICULTURAL INTER-CULTIVATOR ® KK-IC-250D,256D,215D Operation Check Check and add oil 1.1 Check if connections of everywhere if they are loosening and fixed upon the moment needed. Name Moment (Nm.) Flange and engine 20-25 Flange and transmission box 35-40 Transmission reverse axle locked bolt... - Page 16 KisanKraft AGRICULTURAL INTER-CULTIVATOR ® KK-IC-250D,256D,215D ! NOTE: Inter-cultivator should be break-in before using, according to introduction of SECTION NINE. 3.1 Using of flameout switch. Start place Stop place ! NOTE: Inter-cultivator should break-in before use. 3.1 Using of flameout switch.
-
Page 17: Operating The Engine
KisanKraft AGRICULTURAL INTER-CULTIVATOR ® KK-IC-250D,256D,215D 3.4.2 Pull back the shift gear rod with right hand and then turn to neutral gear. And then use right hand to hold on reverse handle. 3.4.3 Then slowly release clutch rod so that the Inter-cultivator can go in reverse direction ! NOTE: Don’t release reverse handle. - Page 18 KisanKraft AGRICULTURAL INTER-CULTIVATOR ® KK-IC-250D,256D,215D Running with low speed and low load before the engine gets hot. Avoid running with high speed and full load, or low speed and no load. • Avoid running with overload. During break-in period, the engine can't run with full load, but can run with 3000rpm and 50% load.
-
Page 19: Methods Of Starting The Agricultural Intercultivator
KisanKraft AGRICULTURAL INTER-CULTIVATOR ® KK-IC-250D,256D,215D 2.3 If the engine gives out black smoke continuously, it is because the engine is overloaded. The belt pulley of the engine or that of the powered equipment must be adjusted. Fuel-control screw Speed-limit screw 2.4 Pay attention to the following points when the engine is running:... - Page 20 KisanKraft AGRICULTURAL INTER-CULTIVATOR ® KK-IC-250D,256D,215D • Keep away from flammable materials • Keep away from children and pets to avoid any injuries or accidents. • Only operator with knowledge of machine and its operations must be permitted to operate Agricultural Inter-cultivator •...
-
Page 21: Stopping The Engine
KisanKraft AGRICULTURAL INTER-CULTIVATOR ® KK-IC-250D,256D,215D ! NOTE: Don’t suddenly release starter grip let it bounce back, it may broke engine. Need slowly put the grip back. 1.6 After preheating the engine, gradually move choke to OPEN position. 1.7 Adjust rotary speed of engine through the throttle switch (or throttle handle) - Page 22 KisanKraft AGRICULTURAL INTER-CULTIVATOR ® KK-IC-250D,256D,215D : info@kisankraft.com : +91.80. 6835 7800 : www.kisankraft.com Page 22 of 50...
- Page 23 KisanKraft AGRICULTURAL INTER-CULTIVATOR ® KK-IC-250D,256D,215D Maintenance Schedule: After After After After After After Time Daily 1000 Item hours hours hours hours hours hours Check the nut √ and screw Check and fill √ engine oil √ √ Change engine (First...
- Page 24 KisanKraft AGRICULTURAL INTER-CULTIVATOR ® KK-IC-250D,256D,215D 1. Change Oil Drain out oil when engine is warm. Screw down drain bolt and loosen oil filler cap. Refill with recommended oil and check oil level. Oil screw Dipstick Take down the screw and take out the element 2.
- Page 25 KisanKraft AGRICULTURAL INTER-CULTIVATOR ® KK-IC-250D,256D,215D 2. Maintenance of Inter-cultivator Keeping the Inter-cultivator in good condition will prolong the Inter-cultivator's life, and help it Arrive optimum performance whenever you wish to do weeding in your field. To help you properly care for the Inter-cultivator, the following pages include a maintenance schedule, routine inspection procedures, and simple maintenance procedures using basic hand tools.
- Page 26 KisanKraft AGRICULTURAL INTER-CULTIVATOR ® KK-IC-250D,256D,215D 2.8. The manufacturer and/or distributor will not be responsible for injuries or damages caused by use of unapproved parts and/or accessories. 2.9. A first aid kit should be kept readily accessible while performing maintenance on this equipment.
- Page 27 KisanKraft AGRICULTURAL INTER-CULTIVATOR ® KK-IC-250D,256D,215D • Take down the oil screw on the cylinder cover, and fill 2ml oil. Rust prevention of engine internal parts. Pull up the recoil start handle, when you feel the resistance, exceed it. At this time, the...
- Page 28 KisanKraft AGRICULTURAL INTER-CULTIVATOR ® KK-IC-250D,256D,215D : info@kisankraft.com : +91.80. 6835 7800 : www.kisankraft.com Page 28 of 50...
- Page 29 KisanKraft AGRICULTURAL INTER-CULTIVATOR ® KK-IC-250D,256D,215D 3. Adjusting 1. Umbrella gear adjusting If sure that umbrella gear has big, strange noise, immediately adjust as following. 1.1 Umbrella gear clearance in transmission box. 1.1.1 When vice gear side clearance △<0.05, should add steel gasket between transmission box and walking case.
- Page 30 KisanKraft AGRICULTURAL INTER-CULTIVATOR ® KK-IC-250D,256D,215D ! NOTE: 3.1. Hold and loose clutch rod two or three times, if find Inter-cultivator still can’t engage very well. Adjust the clutch cable. 3.2. If adjust many times still can’t solved problem, must be clutch worn out too much.
- Page 31 KisanKraft AGRICULTURAL INTER-CULTIVATOR ® KK-IC-250D,256D,215D Attention: 1. Revolve the throttle switches for twice or three times and check the accelerating and decelerating function of diesel engine. 2. The throttle cable and connection head should be fastened with screws. Debugging method of handlebar Four directions of handlebar can be properly set according to one’s height and weeding...
-
Page 32: Technical Specifications
KisanKraft AGRICULTURAL INTER-CULTIVATOR ® KK-IC-250D,256D,215D Technical Specifications Name KK-IC-250D KK-IC-256D KK-IC-255D Rated Power 3.6 kW (4.8 hp) 3.73kW (5 hp) Rated Speed 3600 R/Min 800 RPM(Rota) Fuel used Diesel Bore x Stroke 73 x 59 mm Displacement 247 cc Fuel tank capacity 2.5 L... -
Page 33: Troubleshooting
KisanKraft AGRICULTURAL INTER-CULTIVATOR ® KK-IC-250D,256D,215D Name KK-IC-250D KK-IC-256D KK-IC-255D Max Turning 180 mm Inter- Radius cultivator Total Blades 24 Pcs+24pcs 24 pcs Blades Type Dry Land &Wet Land Dry land blades NOTE: Specification are subject to change without prior notice. - Page 34 KisanKraft AGRICULTURAL INTER-CULTIVATOR ® KK-IC-250D,256D,215D Clutch cable is not fitting well Adjust cable properly 4. Transmission box has problem Problem Probable cause Solution Gears are not Assemble main shaft Screw and round but at the back of main functioning well and tighten the shaft is loosen.
- Page 35 KisanKraft AGRICULTURAL INTER-CULTIVATOR ® KK-IC-250D,256D,215D Problem Probable cause Solution Oil in case is little Add oil Gears clearance too narrow Assemble again Overheat Axle direction clearance is too small Adjust the clearance Transmission box connecting place Connection bolts are loose...
-
Page 36: Parts Diagram & List-Kk-Ic-250D/256D/255D
KisanKraft AGRICULTURAL INTER-CULTIVATOR ® KK-IC-250D,256D,215D Parts Diagram & List-KK-IC-250D/256D/255D THE MACHINE PARTS Ref No Description engine support frame 、 Bumper Walking case assy. Handrail parts Trailer body connecting frame Fender parts Wheels parts : info@kisankraft.com : +91.80. 6835 7800 : www.kisankraft.com... - Page 37 KisanKraft AGRICULTURAL INTER-CULTIVATOR ® KK-IC-250D,256D,215D Bumper, engine support frame and flange parts Ref No Part No Description WM170F gasoline engine power 2601800002-0001 bumper plug 2602900008-0001 bumper 360040009 Hexagon flange face nut M8 360620008 Spring washer 8 360660010 Flat washer 8 360220163 Hexagon flange bolts M8×45...
- Page 38 KisanKraft AGRICULTURAL INTER-CULTIVATOR ® KK-IC-250D,256D,215D Gearbox assembly Description 2408200015-0001 dust cover 360800033 Oil seal 25×47×7 360710054 O-ring rubber seal 10.2×2.65 3403900005-0002 Oil drain bolt M12*1.25*12 2124500030-0001 walking box 360720050 Deep groove ball bearing 6305 3410800199-0001 Bushing￠26.5*34*37 2113600033-0001 Output shaft 2119100011-0001...
- Page 39 KisanKraft AGRICULTURAL INTER-CULTIVATOR ® KK-IC-250D,256D,215D 2119000009-0001 driven bevel gear 360660009 Flat washer 12 360620029 Spring washer 12 360070007 Hexagonal slotted thin nut M12 360250043 Hexagon head bolt M10×40 360620015 spring washer 10 3400300019-0001 Closing paper pad 360010008 Hex Nut M10 360980063 Ordinary flat key 6×6×20...
- Page 40 KisanKraft AGRICULTURAL INTER-CULTIVATOR ® KK-IC-250D,256D,215D 3404800005-0001 Gear spring 2121800021-0001 Spindle 360930002 Wire retaining ring for shaft 20 2101200008-0001 clutch core assembly Non-standard wear-resistant 3411800016-0001 washers 360720019 Deep groove ball bearing 6202 Hexagon Flange Bolts Small 360220026 Series M6×16 360890003 External Serrated Lock Washers 6...
- Page 41 KisanKraft AGRICULTURAL INTER-CULTIVATOR ® KK-IC-250D,256D,215D Handle Control Parts Description 360250069 Hexagon head bolt M10×30 Non-metallic insert hex lock nut 360120013 3015600009-0002 shift lever 360260025 Hexagon head bolt M10×140 3000200013-0001 throttle cable 3010400014-0001 reverse cable Self-locking hoop Φ25 2400600001-0001 Shock-absorbing grip Φ10...
- Page 42 KisanKraft AGRICULTURAL INTER-CULTIVATOR ® KK-IC-250D,256D,215D 2607600003-0002 Toolbox 1815700001-0001 throttle switch Shock-absorbing grip Ф25 3000500003-0001 Gasoline engine emergency stop 3011800001-0001 handle (wire included) 3010700001-0001 Reverse clutch handle Split pin φ1.6X20 360560021 2113100005-0001 Non-standard pin 7×24 2113100009-0001 Non-standard pin 10×24 360300005 Hexagon flange bolts M6×12...
- Page 43 KisanKraft AGRICULTURAL INTER-CULTIVATOR ® KK-IC-250D,256D,215D Dragging Assy connection frame and resistance rod parts Description Hexagon head bolt 360250061 M10×50 2425300026-0001 trailer body 360010008 Hex Nut M10 361020029 Pin 8×43 2123400004-0001 With ring pin 360620015 spring washer 10 3402200004-0002 circlip B...
- Page 44 KisanKraft AGRICULTURAL INTER-CULTIVATOR ® KK-IC-250D,256D,215D Fender parts Ref No Description 360040015 Hexagon flange face nut M10 360040008 Hexagon flange face nut M6 2605100008-0001 Fender front bracket 360640008 Large washer 6 360300007 Hexagon flange bolts M6×16 2601600047-0002 Fender (right) 360300134 Hexagon flange bolts M10×20...
- Page 45 KisanKraft AGRICULTURAL INTER-CULTIVATOR ® KK-IC-250D,256D,215D Rotary blades parts Ref No Description 2705300005-0001 Side disc 3402200004-0002 circlip B 361020029 Pin 8×43 2708000004-0003 Auxiliary knife cylinder (2+1) 360220163 Hexagon head bolt M8×45 360250070 Hexagon head bolt M10×35 2700400004-0001 Dryland curved blade (right)
- Page 46 KisanKraft AGRICULTURAL INTER-CULTIVATOR ® KK-IC-250D,256D,215D Wheels parts Ref No Description Hexagon head bolts-full thread 360250136 M8*22 2800900005-0001 Spoke (outer side with hole) 2800700006-0001 Outer rubber wheel 2800600002-0001 Inner tube 2800800004-0001 Spoke (inner side) 360620008 spring washer 8(standard) 2801000007-0001 Wheel axle/black...
- Page 47 KisanKraft ® PRODUCT RANGE KisanKraft has a large range of products to serve the farmers. A list of our products is given below: Brush Cutters and Accessories Cultivators and Accessories Brush Cutter/Power Weeder Petrol and Diesel Backpack Brush Cutter Sprayers and Accessories...
- Page 48 KisanKraft ® Wide Range of Products for Every Need MISSED CALL: 07676065555 For more information give Many of our products have BIS: ISI certification. : info@kisankraft.com : +91.80. 6835 7800 : www.kisankraft.com Page 48 of 50...
- Page 49 (4) Electrical Motor, Electrical Parts, Battery Etc. are not covered under the warranty. This warranty is null & void, if you fail to register the warranty with KisanKraft by sending the KisanKraft Copy with dealer’s stamp. : info@kisankraft.com : +91.80.
- Page 50 (invoice/receipt). KisanKraft Limited, its manufacturers and its dealers reserve the right to inspect the claimed defective part(s) to determine if the malfunction is the result of a defect covered by this warranty. Please note that the decision of KisanKraft Limited with respect to any warranty claim is final.
