ASSEMBLY INSTRUCTIONS
Quadro Square
2P workstation
Sizes: 1200, 1400, 1600, 1800 mm

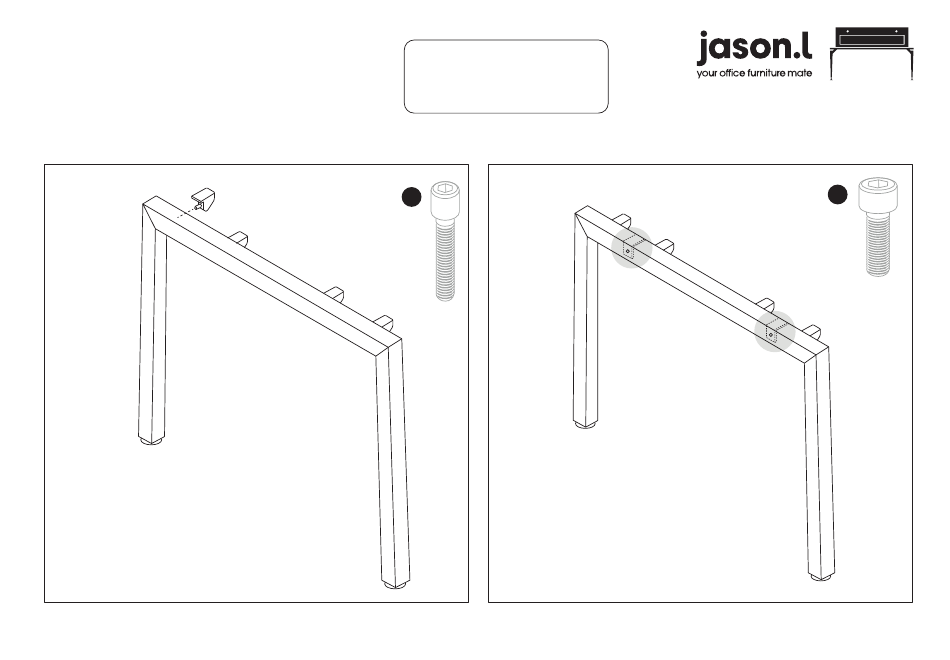

STEP 01
Using Allen Key provided, attach 4 plastic brackets per leg (D)
(as per picture above) using M6x20MM (G) Socket head screw.
www.jasonl.com.au
Need help!
Call us on
1300 527 665
STEP 02
G
Using Allen Key provided, attach M8x20MM Socket head (F)-
screw socket half way into leg for both legs (B).
F
Page 3 of 6
