Front View - M-system Mini-M Series Instruction Manual

Groups A, B, C, and D hazardous locations
(ANSI/ISA-12.12.01, CAN/CSA-C22.2 No.213)
UL/C-UL general safety requirements
(UL 61010B-1, CAN/CSA-C22.2 No.1010-1)

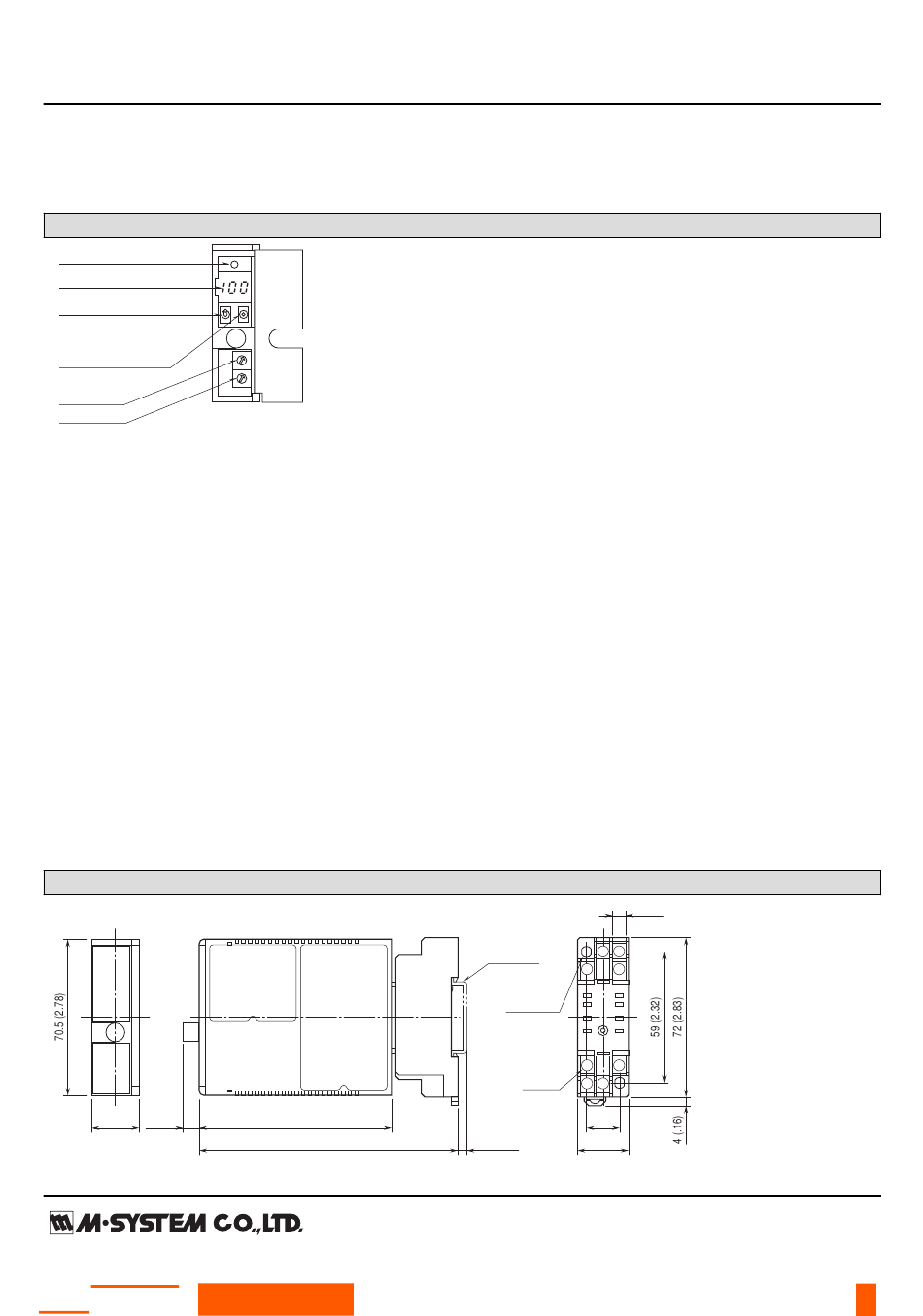

FRONT VIEW

(A) Polarity Indicator LED
(B) High/Low Limit Display
(C) High/Low Limit Selector
Top: High Limit
Bottom: Low Limit
(D) UP/DOWN Control
(E) Zero Adj.
(F) Span Adj.
The front cover cannot be turned open by 180 deg.
when there is no extra space between units.
• How to Set High Limit
Turn the High/Low Limit Selector (C) to the top.
The High/Low Limit Display (B) shows the current high limit
(-10.0 – +105 %). Press UP/DOWN Control (D) until the
display shows a desired set value.
The Polarity Indicator LED (A) is red when the set value is in
positive range, green when in negative range.
The high limit is factory set to 100 %.
• How to Set Low Limit
Turn the High/Low Limit Selector (C) to the bottom.
The High/Low Limit Display (B) shows the current low limit
(-10.0 – +105 %). Press UP/DOWN Control (D) until the
display shows a desired set value.
The Polarity Indicator LED (A) is red when the set value is in
positive range, green when in negative range.
The low limit is factory set to 0 %.
DIMENSIONS unit: mm (inch)
21.5 (.85)
7.3 (.29)
SEN TRONIC
AG
Produkte, Support und Service
86.7 (3.41)
116.7 (4.59)
• When mounting, no extra space is needed between units.
Rugghölzli 2
CH - 5453 Busslingen
6 (.23)
DIN RAIL
4 1
35mm wide
8 5
2–4.2x5
(.17x.20)
MTG HOLE
6 (.24) deep
12 9
8–M3
SCREW
14 13
15 (.59)
[4 (.16)] 23 (.91)
Tel. +41 (0)56 222 38 18
Fax +41 (0)56 222 10 12
MODEL: M2LMS
