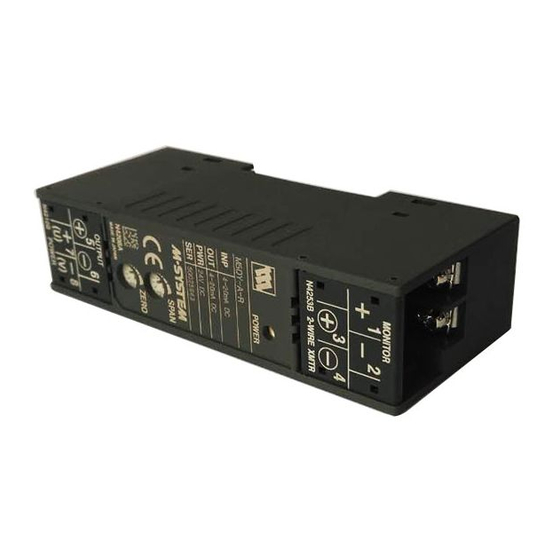

M-system Sentronic M5DY Series Quick Start Manual

Super-mini Terminal Block Signal Conditioners M5-UNIT
CURRENT LOOP SUPPLY
Functions & Features
• Powering a 4 – 20 mA DC current loop
• Applicable to smart transmitters
• Isolation between the input and output
• Fast response type available
• High-density mounting
• Power LED
• CE marking for 24 V power

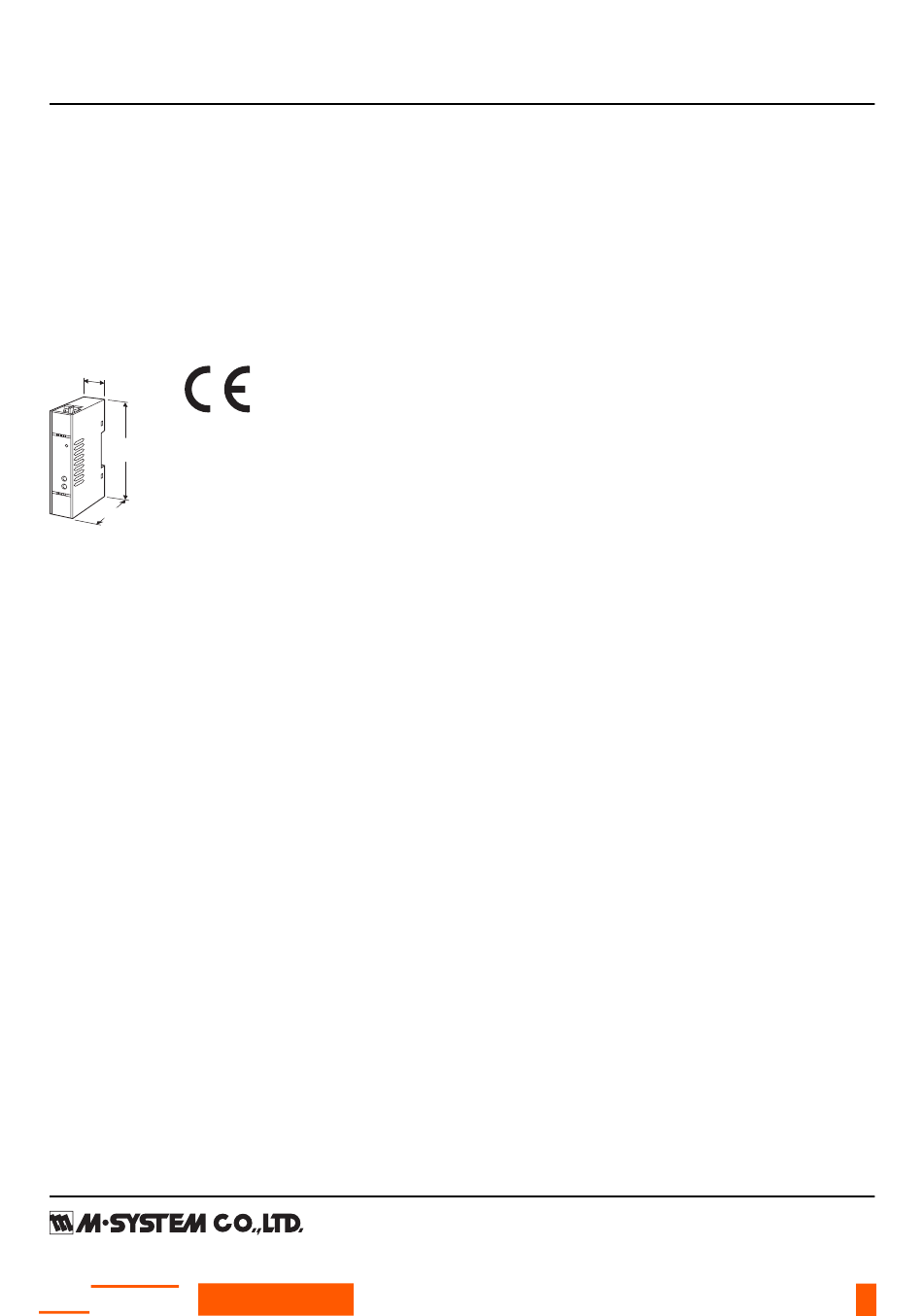

25 (.98)
97
(3.82)
41 (1.61)
mm (inch)
M5DY-❑-❑❑
ORDERING INFORMATION
Specify a code from below for each [1] through [3].
• Code number: M5DY-[1]-[2][3]
(e.g. M5DY-A-R/K/Q)
Specify variables.
• Special output range (For codes Z & 0)
• Specify the specification for option code /Q
(e.g. /C01 /V01)
INPUT
Current
4 – 20 mA DC (Input resistance 249.5 Ω)
[1] OUTPUT
Current
A: 4 – 20 mA DC (Load resistance 550 Ω max.)
D: 0 – 20 mA DC (Load resistance 550 Ω max.)
Z: Specify current (See OUTPUT SPECIFICATIONS)
Voltage
1: 0 – 10 mV DC (Load resistance 100 kΩ min.)
(CE not available)
2: 0 – 100 mV DC (Load resistance 100 kΩ min.)
(CE not available)
3: 0 – 1 V DC (Load resistance 100 Ω min.)
4: 0 – 10 V DC (Load resistance 1000 Ω min.)
5: 0 – 5 V DC (Load resistance 500 Ω min.)
6: 1 – 5 V DC (Load resistance 500 Ω min.)
SEN TRONIC
AG
Produkte, Support und Service
0: Specify voltage (See OUTPUT SPECIFICATIONS)
01: Specify voltage (See OUTPUT SPECIFICATIONS)
(CE not available)
[2] POWER INPUT
AC Power
M: 85 – 264 V AC (Operational voltage range 85 – 264 V,
47 –66 Hz)
(CE not available)
DC Power
R: 24 V DC
(Operational voltage range 24 V ±10 %, ripple 10 %p-p max.)
[3] OPTIONS
RESPONSE TIME (0 – 90 %)
blank: Standard (≤ 0.5 sec.)
/K: Fast Response (Approx. 25 msec.)
OTHER OPTIONS
blank: none
/Q: Option other than the above (specify the specification)
OPTION SPECIFICATIONS OF /Q (multiple selections)
COATING (For the detail, refer to M-system's web site.)
/C01: Silicone coating
/C02: Polyurethane coating
/C03: Rubber coating
ADJUSTMENT
/V01: Multi-turn fine adjuster
GENERAL SPECIFICATIONS
Construction: Terminal block
Connection: M3.5 screw terminals (torque 0.8 N·m)
Screw terminal: Nickel-plated steel
Housing material: Flame-resistant resin (black)
Isolation: Input to output to power
Zero adjustment: -2 to +2 % (front)
Span adjustment: 98 to 102 % (front)
Power LED: Green light turns on when the power is supplied.
SUPPLY OUTPUT
(across the terminals 3 – 4)
Output voltage: 24 – 28 V DC with no load
18 V DC min. at 20 mA
Current rating: 22 mA DC max.
• Shortcircuit Protection
Current limited: 30 mA max.
Protected time duration: No limit
Rugghölzli 2 Tel. +41 (0)56 222 38 18
CH - 5453 Busslingen Fax +41 (0)56 222 10 12
MODEL: M5DY
