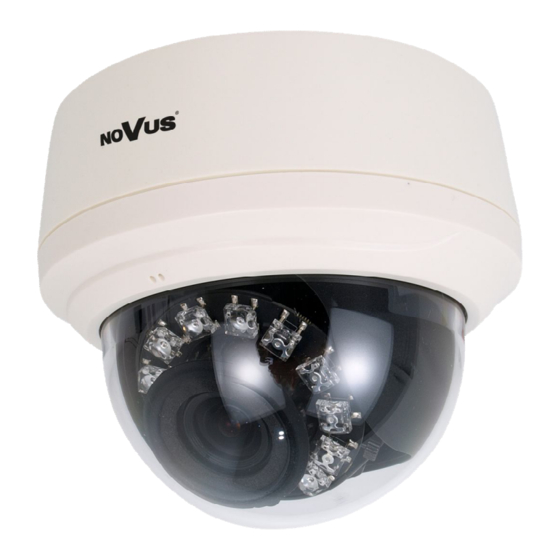

- Page 1 U s e r ’s m a n u a l ( s h o r t f o r m ) NVIP-2DN5000D/IR-1P NVIP-3DN5000D/IR-1P NVIP-5DN5000D/IR-1P...
- Page 2 NVIP-2DN5000D/IR-1P, NVIP-3DN5000D/IR-1P, NVIP-5DN5000D/IR-1P User’s manual (short form) ver.1.1 IMPORTANT SAFEGUARDS AND WARNINGS EMC (2004/108/EC) and LVD (2006/95/EC ) Directives CE Marking Our products are manufactured to comply with requirements of the following directives and national regulations implementing the directives: •...
- Page 3 NVIP-2DN5000D/IR-1P, NVIP-3DN5000D/IR-1P, NVIP-5DN5000D/IR-1P User’s manual (short form) ver.1.1 IMPORTANT SAFEGUARDS AND WARNINGS WARNING! THE KNOWLEDGE OF THIS MANUAL IS AN INDISPENSIBLE CONDITION OF A PROPER DEVICE OPERATION. YOU ARE KINDLY REQEUSTED TO FAMILIARIZE YOURSELF WITH THE MANUAL PRIOR TO INSTALLATION AND FURTHER DEVICE OPERATION.
-
Page 4: Table Of Contents
NVIP-2DN5000D/IR-1P, NVIP-3DN5000D/IR-1P, NVIP-5DN5000D/IR-1P User’s manual (short form) ver.1.1 TABLE OF CONTENTS TABLE OF CONTENTS....................4 1. FOREWORD INFORMATION..................5 1.1. General Characteristics..................5 1.2. Specification ....................6 1.3. Camera dimension ...................7 1.4. Package contents....................7 2. START-UP AND INITIAL IP CAMERA CONFIGURATION ........8 2.1. Description of connectors and control tools ............8 2.2 Mounting the camera..................9... -
Page 5: Foreword Information
NAS, saving file on SD card Network protocol support : HTTP, TCP/IP, IPv4/v6, UDP/IP, RTSP, FTP, DHCP, NTP, PPoE, • SMTP Software: NMS (NOVUS MANAGEMENT SYSTEM) for video recording, live monitoring, • playback and remote IP devices administration Power supply: 12VDC, PoE (Power over Ethernet) •... -
Page 6: Specification
NVIP-2DN5000D/IR-1P, NVIP-3DN5000D/IR-1P, NVIP-5DN5000D/IR-1P User’s manual (short form) ver.1.1 FOREWORD INFORMATION 1.2. Specification NVIP-2DN5000D/IR-1P NVIP-3DN5000D/IR-1P NVIP-5DN5000D/IR-1P IMAGE 2 MPX, CMOS imager, 1/2.8”, 3 MPX, CMOS imager, 1/3”, 5 MPX, CMOS imager, 1/2.5”, Pick-up Element progressive scan progressive scan progressive scan Number of Effective Pixels... -
Page 7: Camera Dimension
NVIP-2DN5000D/IR-1P, NVIP-3DN5000D/IR-1P, NVIP-5DN5000D/IR-1P User’s manual (short form) ver.1.1 FOREWORD INFORMATION 1.3. Camera dimensions 1.4. Package contents After you open the package make sure that the following elements are inside: IP camera • Accessories bag • RJ-45 Coupler • BNC Test Cable •... -
Page 8: Start-Up And Initial Ip Camera Configuration
NVIP-2DN5000D/IR-1P, NVIP-3DN5000D/IR-1P, NVIP-5DN5000D/IR-1P User’s manual (short form) ver.1.1 START-UP AND INITIAL CAMERA CONFIGURATION 2. START-UP AND INITIAL IP CAMERA CONFIGURATION 1.4. Package contents After you open the package make sure that the following elements are inside: 2.1. Description of connectors and control tools IP camera •... -
Page 9: Mounting The Camera
NVIP-2DN5000D/IR-1P, NVIP-3DN5000D/IR-1P, NVIP-5DN5000D/IR-1P User’s manual (short form) ver.1.1 START-UP AND INITIAL CAMERA CONFIGURATION 2.2. Camera mounting 1. Press down on the tab marked with an arrow to lift up the dome cover slightly. While pressing on tab, twist the dome cover counter clockwise just a few degrees to release dome cover from back clips. -
Page 10: Focus And Zoom Adjustment
NVIP-2DN5000D/IR-1P, NVIP-3DN5000D/IR-1P, NVIP-5DN5000D/IR-1P User’s manual (short form) ver.1.1 START-UP AND INITIAL CAMERA CONFIGURATION 2.3 Zoom and focus adjustment Zoom Focus 1. Press down on the tab marked with an arrow to lift up the dome cover slightly. While pressing on tab, twist the dome cover counter clockwise just a few degrees to release dome cover from back clips. -
Page 11: Starting The Ip Camera
START-UP AND INITIAL CAMERA CONFIGURATION 2.4. Starting the IP camera To run NOVUS IP camera you have to connect ethernet cable between camera and network switch with PoE support (IEEE 802.3af). You can also connect it directly via power supply adapter with parameters compatible with camera power supply specification. -
Page 12: Initial Configuration Via The Web Browser
PC computer You can either set a network configuration (IP address, gateway, net mask, etc.) of NOVUS IP camera yourself or select DHCP mode (DHCP server is required in this method in target network) by using web browser or by NMS software. -
Page 13: Network Connection Via Web Broswer
NVIP-2DN5000D/IR-1P, NVIP-3DN5000D/IR-1P, NVIP-5DN5000D/IR-1P User’s manual (short form) ver.1.1 NETWORK CONNECTION VIA WEB BROWSER 3. NETWORK CONNECTION VIA WEB BROSWER 3.1. Recommended PC specification for web browser connections Requirements below apply to connection with an IP camera, assuming image display in 1920x1080 resolution and 25 fps speed. - Page 14 NVIP-2DN5000D/IR-1P, NVIP-3DN5000D/IR-1P, NVIP-5DN5000D/IR-1P User’s manual (short form) ver.1.1 NETWORK CONNECTION VIA WEB BROWSER If your computer has Flash Player installed, the main screen for the camera web interface opens. From here you can view and configure the camera. NOTE: If your computer does not have Flash Player installed, you will be prompted to select if you...
-
Page 15: Www Interface - Working With Ip Camera
NVIP-2DN5000D/IR-1P, NVIP-3DN5000D/IR-1P, NVIP-5DN5000D/IR-1P User’s manual (short form) ver.1.1 WWW INTERFACE - WORKING WITH IP CAMERA 4. WWW INTERFACE - WORKING WITH IP CAMERA 4.1. Displaying live pictures 1. Camera settings Live Video - Live video preview Device Info - Device information Stream Configuration - Video and audio settings for each stream Device Configuration - Device configuration (e.g. - Page 16 NVIP-2DN5000D/IR-1P, NVIP-3DN5000D/IR-1P, NVIP-5DN5000D/IR-1P User’s manual (short form) ver.1.1 WWW INTERFACE - WORKING WITH IP CAMERA 2. Video Parameter Stream - Stream ID (choose one from available streams) Bite Rate Type - Bit rate type Bit Rate (kbps) - Bit rate...
-
Page 17: Electric Connectors And Accesories
NVIP-2DN5000D/IR-1P, NVIP-3DN5000D/IR-1P, NVIP-5DN5000D/IR-1P User’s manual (short form) ver.1.1 ELECTRIC CONNECTORS AND ACCESORIES 5. ELECTRIC CONNECTORS AND ACCESORIES 5.1. Connecting power supply to the camera. Camera can be supplied using external power supply unit corresponding with the camera parameters or by using RJ45 network socket and PoE (IEEE 802.3af) power supply unit. -
Page 18: Sd Card Installation
NVIP-2DN5000D/IR-1P, NVIP-3DN5000D/IR-1P, NVIP-5DN5000D/IR-1P User’s manual (short form) ver.1.1 ELECTRIC CONNECTORS AND ACCESORIES Alarm output Camera alarm output is an relay output type. Alarm output relay maximum load: 12 VDC / 300mA. Alarm output electric connections • Indicator Alarm Output (+) -
Page 19: Restoring Factory Defaults
NVIP-2DN5000D/IR-1P, NVIP-3DN5000D/IR-1P, NVIP-5DN5000D/IR-1P User’s manual (short form) ver.1.1 RESTORING FACTORY DEFAULTS 6. RESTORING FACTORY DEFAULTS NOVUS IP cameras allow to restore defaults via: software (web browser level) • hardware (using reset button) • 6.1. Restoring factory defaults by software means User can restore default settings of the IP camera except network settings (optional).
