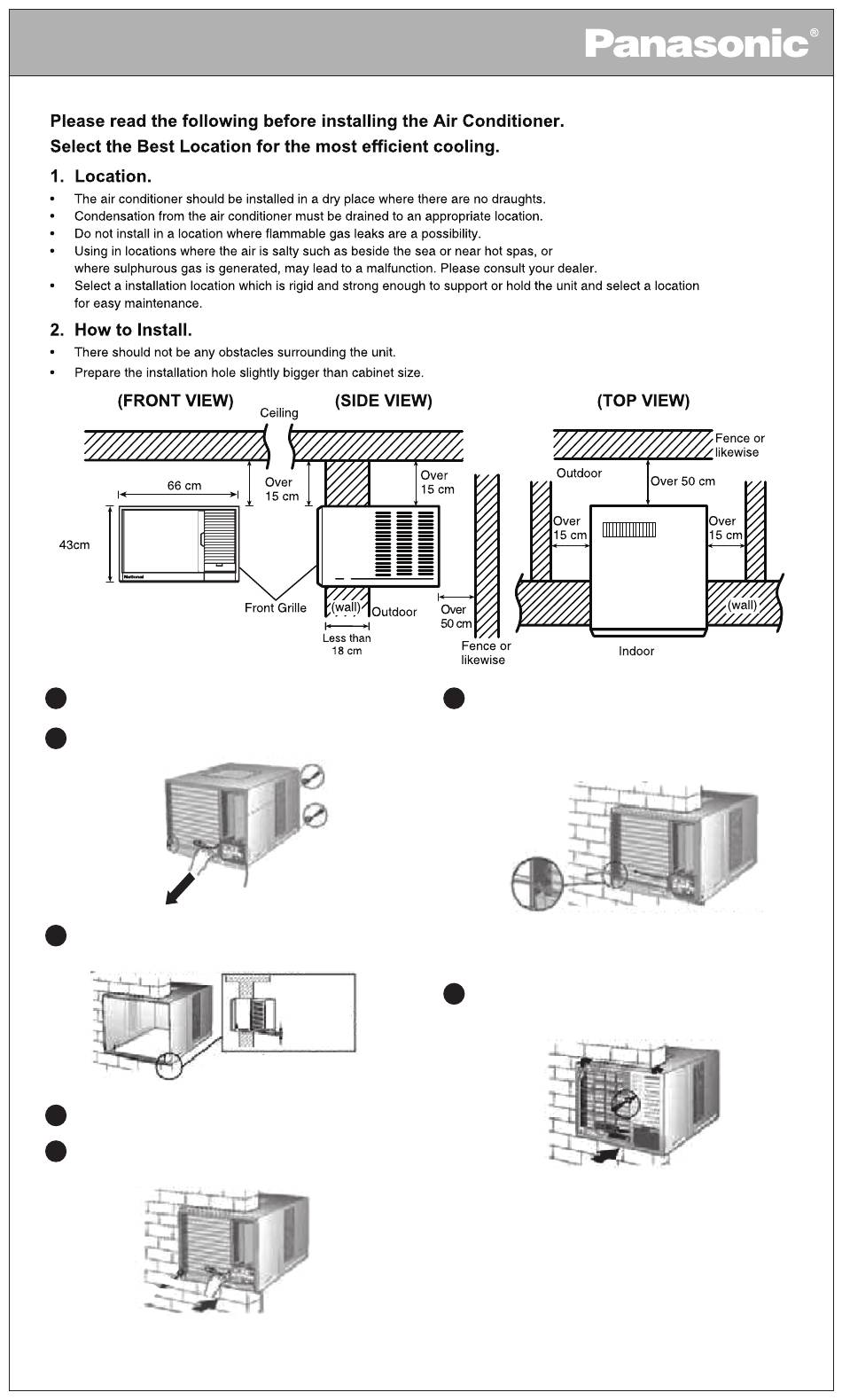

HOW TO INSTALL
Remove the cabinet screws.
1
Slide the chassis out from the cabinet.
2
Place cabinet into the installation hole.
3
Slide the chassis into the cabinet.
4
Lock the chassis to the cabinet with
5
screws.
Tilt down for
better drainage
(max. 10mm).
Secure it with wood screws or
nails
Depending upon the location of the AC
6
outlet, route the AC cord to either the
left or right side while installing the
front grille.
This figure shows the AC cord routed to the left side.
Attach the front grille to the cabinet
7
and fasten it with a screw.
