Sun Microsystems Fire E6900 Assembly Installation Manual page 2

Caution –
removing the filler panel to prevent overheating.

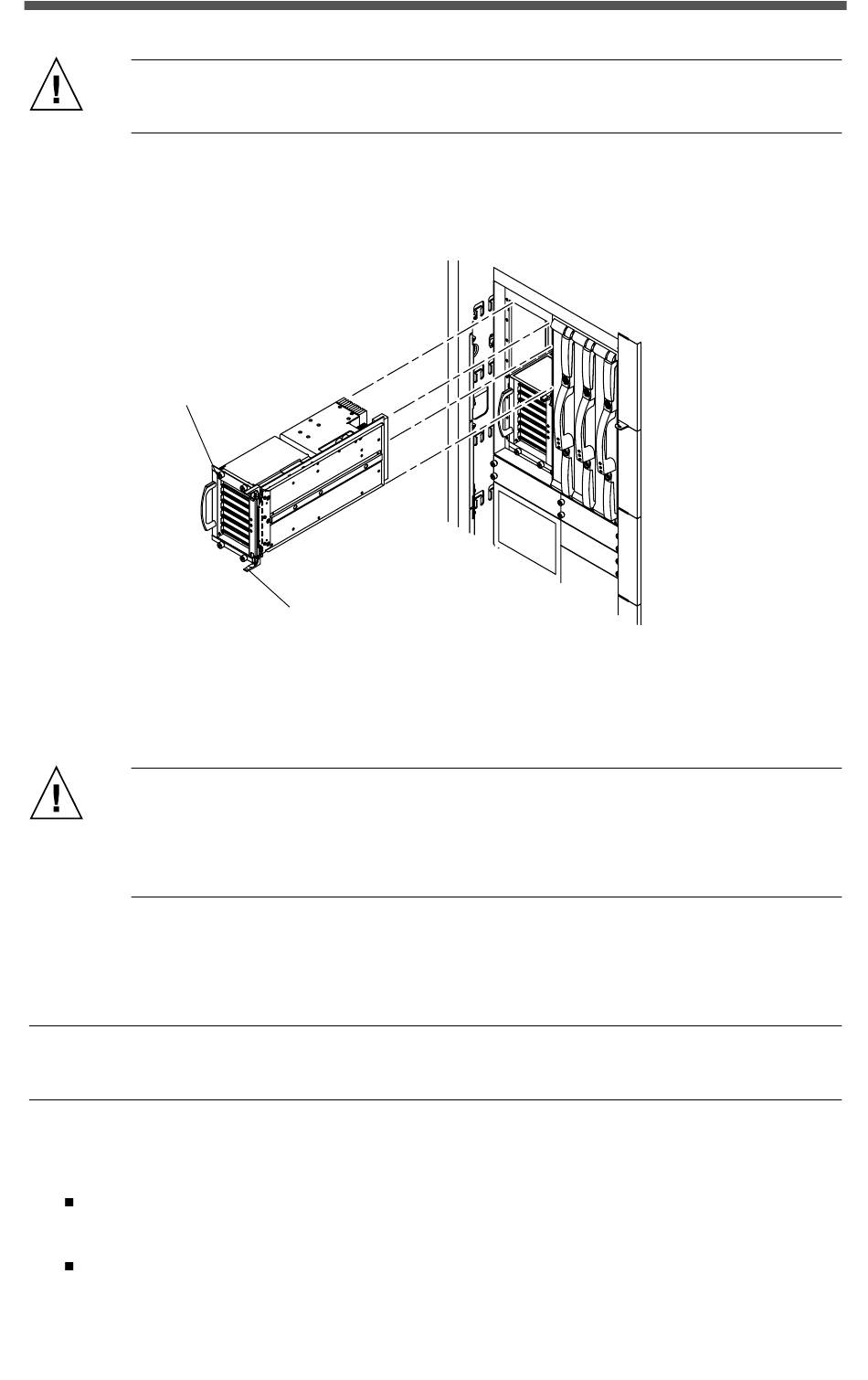

3. Remove the filler panel from the front of the I/O assembly location and
store it for possible future use.
4. Line up the I/O assembly with the I/O assembly opening.
Captive
screws (4)
5. Insert the assembly into the card cage opening.
The ejector levers should be toward the inside of the I/O assembly and in
the open position
Caution –
damage to the assembly and system. The assembly should insert and
seat smoothly. If it binds, remove the assembly and inspect the card
cage slot for any obvious obstructions.
6. Simultaneously press the two ejector levers inward.
7. Tighten the four captive screws.
Note –
The assembly will not be recognized by the system until the domain
has been reconfigured to include the board, or re-initialized and rebooted.
8. Reconfigure the I/O assembly back into the system by either of the
following procedures:
Dynamically reconfigure the I/O assembly back into the domain.
Refer to the dynamic reconfiguration manual for your product.
Power on the I/O assembly and initialize the domain.
Refer to the system administration manual for your product.
You must install the I/O assembly within one minute of
Ejector lever
DO NOT FORCE any assembly into a slot; this can cause
