Users: User number connected to the AP. Clicking will open a new window giving
information about connected customers.
•
Channel: Channel over which the AP is transmitting the SSID of the AP (2.4Ghz / 5.8Ghz
according to model).
•
Tx power: 2.4Ghz / 5.8Ghz frequency output power.
•
Online Time: Shows how long the AP takes on.
•
Group: Displays the name of the group to which the AP is assigned.

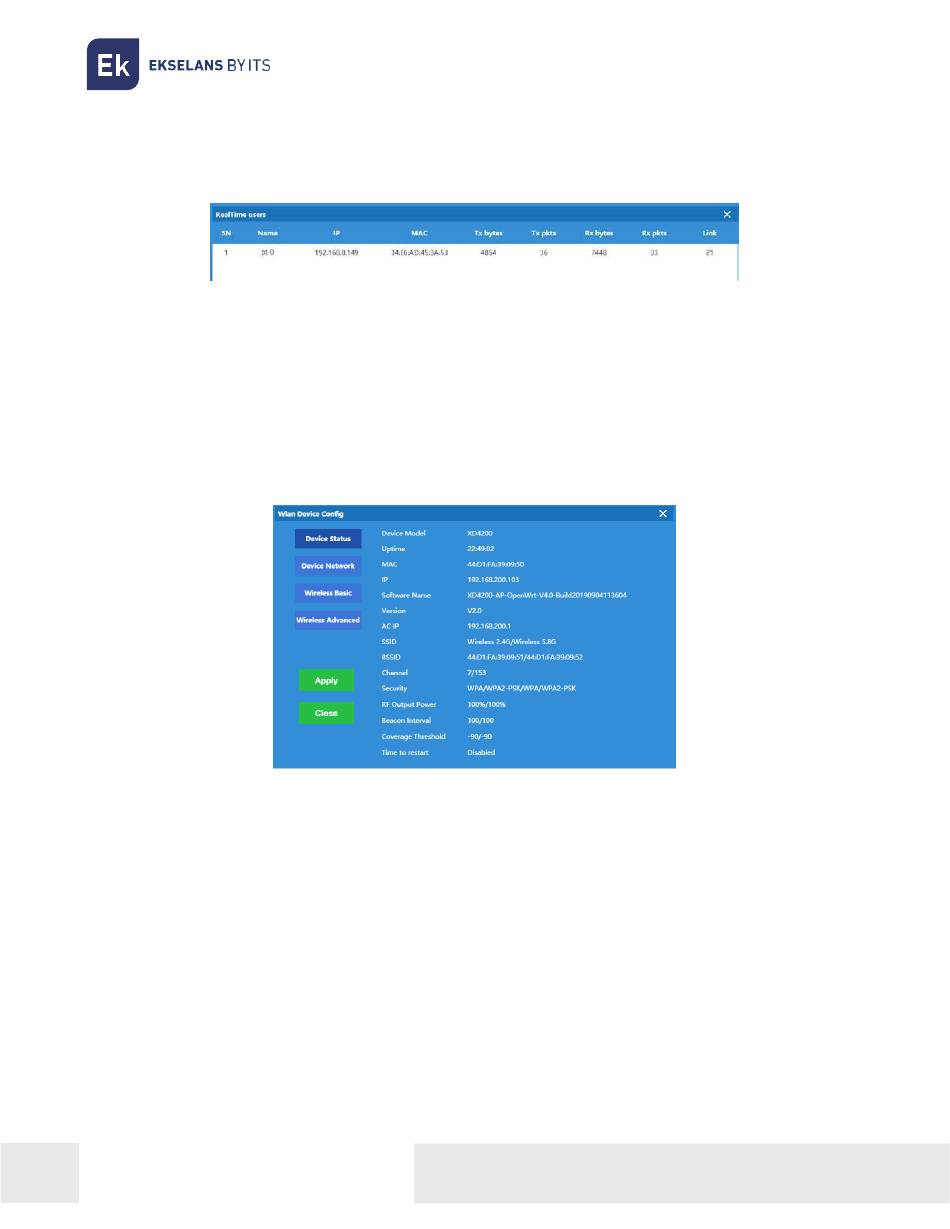

After pressing the CONFIG button of the desired AP, open a new window to configure the AP in question:
"Device Status" shows us relevant information about the AP:
•
Model: Product name.
•
Online Time: Shows how long the AP takes on.
•
MAC Device: Displays MAC.
•
IP device: IP assigned to the AP by CAP 1. If we connect to the NETWORK with the RANGE
indicated on this IP, we will be able to access the WEB interface of the AP directly.
•
Software: Displays the software version that the AP is currently using.
•
AC IP: CAP 2 IP.
•
SSID: SSID names.
•
BSSID: Displays the MACs assigned to the different SSIDs.
•
Channel: Channel on which the AP is transmitting the SSID of the 2.4Ghz / 5.8Ghz AP
•
Security: Displays selected security for SSIDs.
•
RF Output Power: Shows the emission power of the AP.
•
Beacon Interval: Displays the selected "beacon interval" value.
•
Coverage Threshold: Shows us the selected "threshold"
