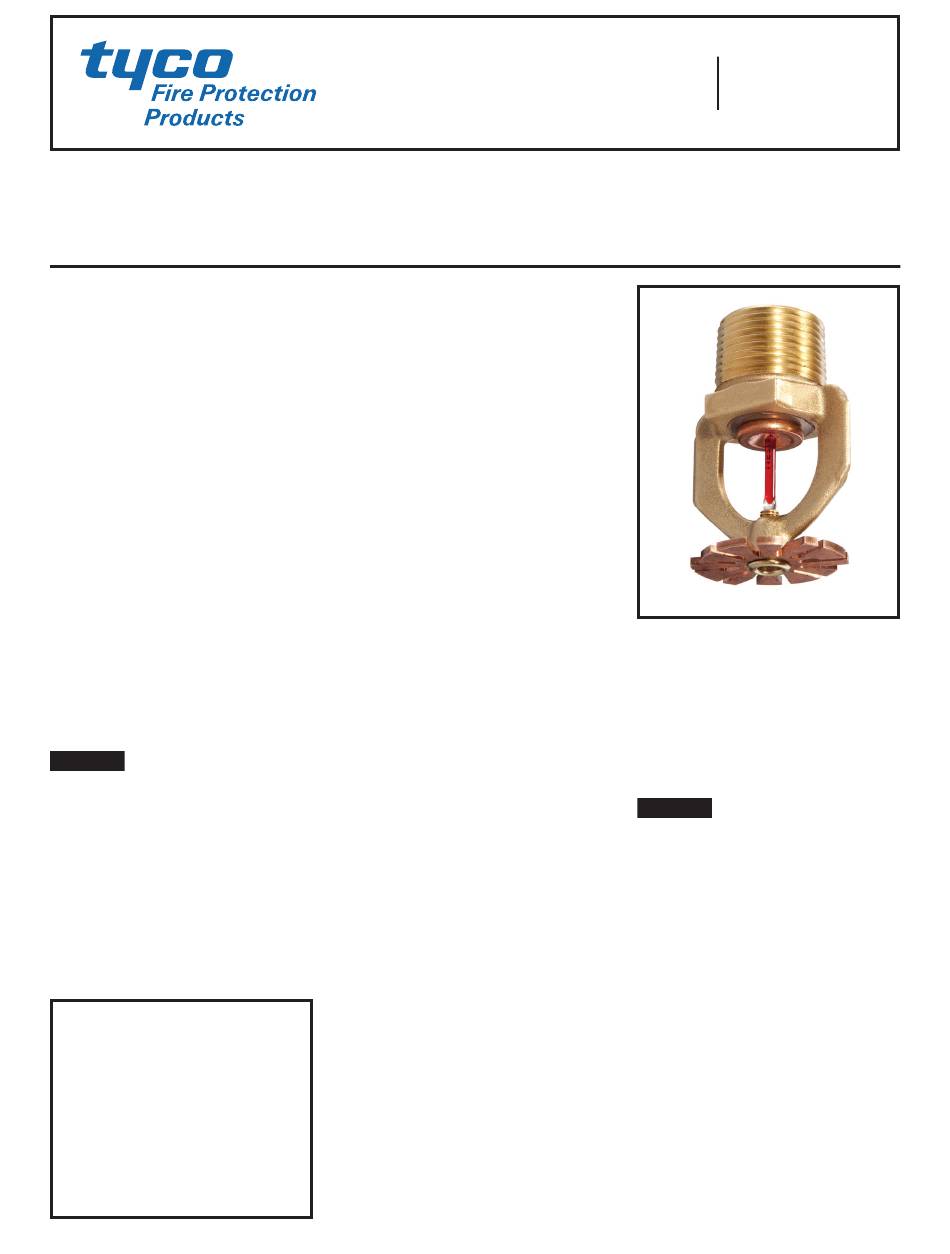

Model ESFR-14
14.0 K-factor Pendent Sprinklers
Early Suppression, Fast Response
General
Description

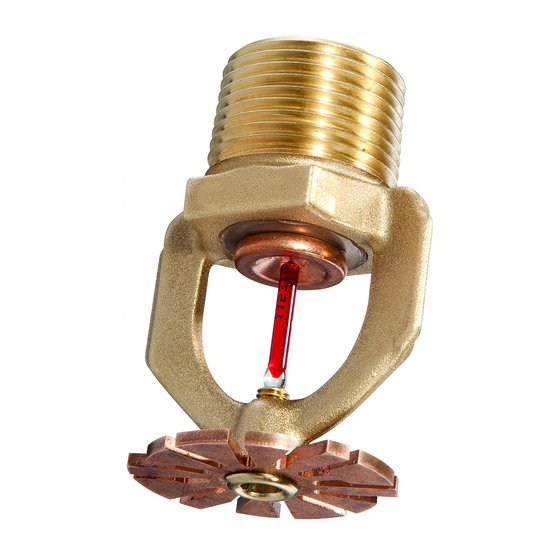

TYCO Model ESFR-14, 14.0 K-factor,
Pendent Sprinklers (TY6236) are Early
Suppression, Fast Response (ESFR)
sprinklers having a nominal K-factor
of 14.0. They are suppression-mode
sprinklers that are especially advanta-
geous as a means of eliminating the
use of in-rack sprinklers when pro-
tecting high-piled storage.
Model ESFR-14 Sprinklers are primar-
ily designed for protection of the fol-
lowing storage arrangements:
• most encapsulated or non-encap-
sulated common materials including
cartoned, unexpanded plastics
• some
storage
arrangements
rubber tires, roll paper, flammable
liquids
For more specific criteria, refer to
Table A in this technical data sheet
as well as the applicable design
standard.
NOTICE
The TYCO Model ESFR-14 Sprinklers
described herein must be installed
and maintained in compliance with
this document, as well as with the ap-
plicable standards of the National Fire
Protection Association (NFPA), in ad-
dition to the standards of any other
authorities having jurisdiction (e.g., FM
Approvals). Failure to do so may im-
pair the performance of these devices.
IMPORTANT
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cau-
tions with respect to handling
and installation of sprinkler sys-
tems and components. Improp-
er handling and installation can
permanently
damage
kler system or its components
and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Page 1 of 4
The owner is responsible for maintain-
ing their fire protection system and
devices in proper operating condi-
tion. Contact the installing contrac-
tor or product manufacturer with any
questions.
In all cases, the appropriate NFPA,
FM Approvals installation standard,
or other applicable standard, must
be referenced to ensure applicabil-
ity and to obtain complete installation
guidelines. The general guidelines in
this technical data sheet are not in-
tended to provide complete installa-
tion criteria.
Sprinkler
Identification
Number (SIN)
of
TY6236 – Pendent, K=14.0
Technical
Data
Approvals
UL and C-UL Listed
FM Approved
Maximum Working Pressure
175 psi (12,1 bar)
Pipe Thread Connections
3/4 inch NPT or
ISO 7-R 3/4
Discharge Coefficient
K=14.0 gpm/psi
Temperature Ratings
155°F (68°C)
200°F (93°C)
Finish
Natural Brass
Physical Characteristics
Frame . . . . . . . . . . . . . . . . . . . . . . . . Brass
Deflector. . . . . . . . . . . . . . . . . . . . . Bronze
Compression Screw. . . . . . . . . . . . Bronze
Button. . . . . . . . . . . . . . . . . . . . . . . . Brass
Sealing Assembly. . . . . . . Beryllium Nickel
a
sprin-
Bulb (3 mm) . . . . . . . . . . . . . . . . . . . Glass
NOVEMBER 2014
Worldwide
1/2
(201,6 lpm/bar
1/2
)
w/TEFLON
www.tyco-fire.com
Contacts
Design
Criteria
The following general guidelines pro-
vided for the TYCO Model ESFR-14,
14.0
K-factor,
Pendent
(TY6236) can be used for quick
reference.
NOTICE
The National Fire Protection Associa-
tion and FM Approvlas provide instal-
lation standards that must be used to
properly design an automatic sprinkler
system utilizing Early Suppression,
Fast Response (ESFR) Sprinklers. The
guidelines provided by NFPA and FM
Global may differ; consequently, the
appropriate standard must be used for
a given installation.
In all cases, the appropriate NFPA or
FM Approvals installation standard
must be referenced to assure appli-
cability and to obtain complete instal-
lation guidelines, since the following
general guidelines are not intended to
provide complete installation criteria.
Sprinklers
TFP319
