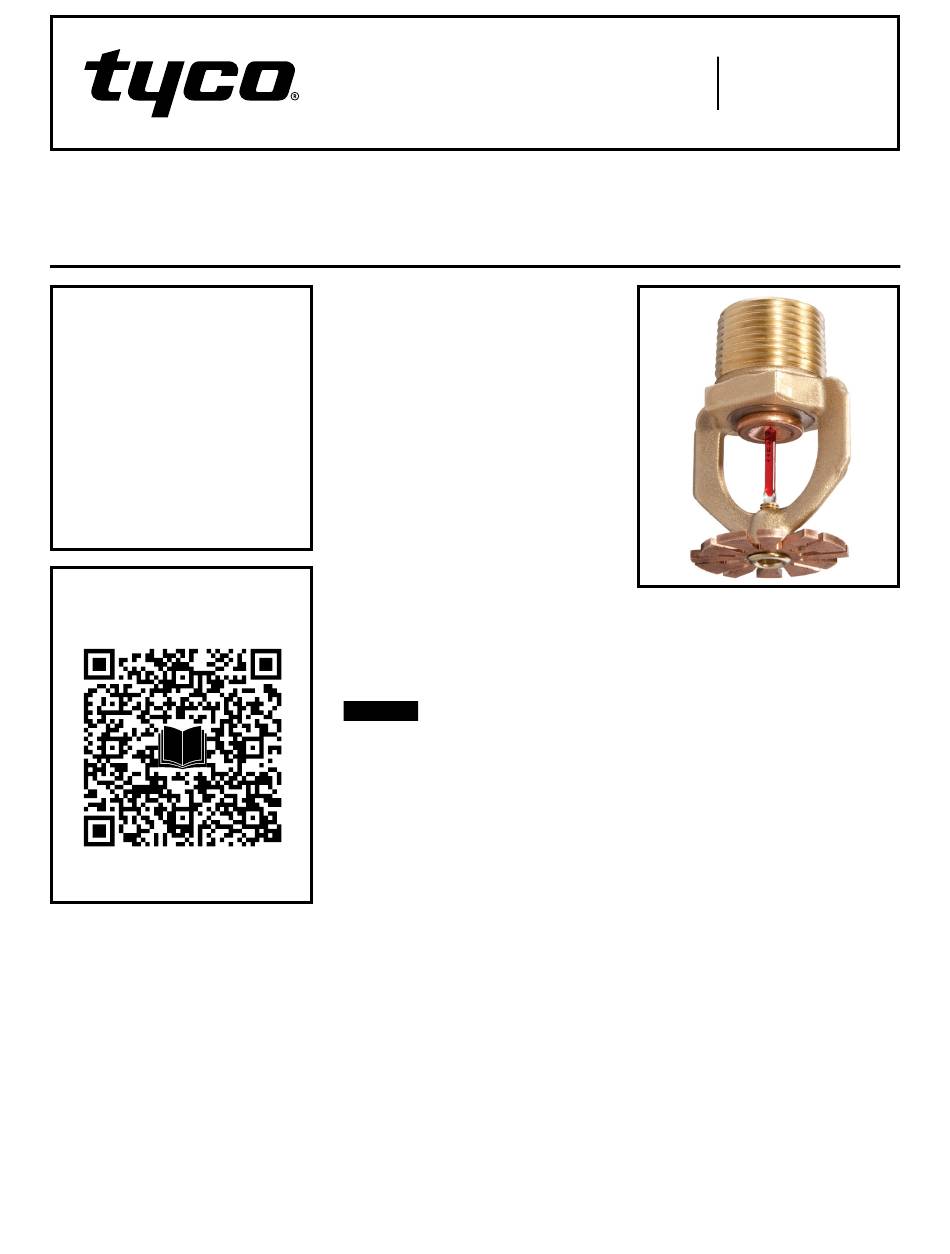

Tyco ESFR-14 Quick Start Manual

Model ESFR-14
14.0 K-factor Pendent Sprinklers
Early Suppression, Fast Response
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Scan the QR code or enter the URL
in a web browser to access the most
up-to-date electronic version of this
document. Data rates may apply.
docs.jci.com/tycofire/
model-esfr-14-k-pen-sup-fast-res
Page 1 of 4
General
Description

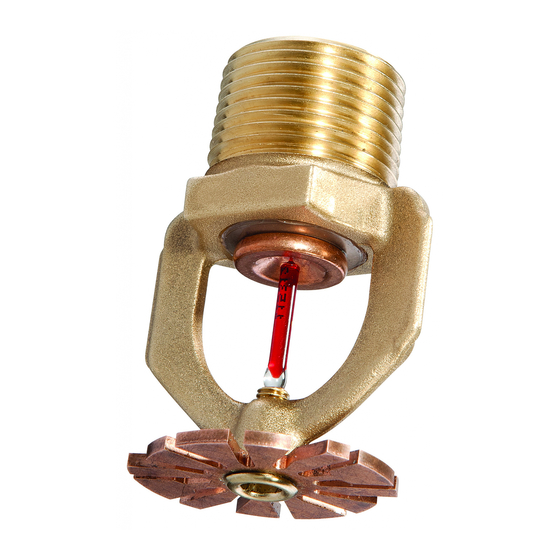

The TYCO Model ESFR-14, K-factor
Pendent Sprinklers are Early Suppres-
sion, Fast Response (ESFR) sprin-
klers with a nominal K-factor of 14.0.
They are suppression-mode sprinklers
that are especially advantageous as a
means of eliminating the use of in-rack
sprinklers when protecting high-piled
storage.
Model ESFR-14 Sprinklers are primarily
designed for protection of the following
storage arrangements:
• Most encapsulated or non-encap-
sulated common materials including
cartoned, unexpanded plastics
• Some storage arrangements of rub-
ber tires, roll paper, flammable liquids
For more specific criteria, see Table B
and the applicable design standard.
NOTICE
The TYCO Model ESFR-14 Sprinklers
described herein must be installed
and maintained in compliance with this
document, as well as with the applica-
ble standards of the National Fire Pro-
tection Association (NFPA), in addition
to the standards of any other authorities
having jurisdiction, such as FM Global.
Failure to do so may impair the perfor-
mance of these devices.
The owner is responsible for main-
taining their fire protection system
and devices in proper operating con-
dition. Contact the installing contrac-
tor or product manufacturer with any
questions.
In all cases, the appropriate NFPA,
FM Approvals installation standard, or
other applicable standard, must be ref-
erenced to ensure applicability and to
obtain complete installation guidelines.
The general guidelines in this technical
data sheet are not intended to provide
complete installation criteria.
APRIL 2022
Worldwide
www.tyco-fire.com
Contacts
Sprinkler
Identification
Number (SIN)
See Table A
Technical
Data
Approvals
UL and C-UL Listed
FM Approved
EAC Approved
Finish
Natural Brass
Physical Characteristics
Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Brass
Deflector . . . . . . . . . . . . . . . . . . . . . . . . . .Bronze
Compression Screw . . . . . . . . . . . . . . . . .Bronze
Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Brass
Bulb (3 mm) . . . . . . . . . . . . . . . . . . . . . . . . . Glass
Sealing Assembly . . Beryllium Nickel w/TEFLON
Additional Technical Data
See Table A
TFP319
